Digitalstrom Relay Universal Module

DigitalSTROM Relay Universal Module SW-UMR200

Relay Universal Module with 2 isolated wide-range inputs (7.5V-230V DC and AC voltage) and 2 isolated relay outputs with changeover contact (up to 230V 10A). Integrated current measurement and status LED. The module allows the transmission of sensor values from the connected device to the digitalSTROM system.

The SW-UMR200 module can either be integrated directly into a consumer device or, since it has a standalone housing, connected to a consumer device to control it. It is powered and controlled via the mains connection.

Through the inputs, the module can report the switching states of external devices or switches in the digitalSTROM system and control the output relays in response to digitalSTROM signals. The input signals can be further processed by the system or via a dedicated dSS server app.

The module is easily expandable and provides integrated logic for connecting various applications to the digitalSTROM system. For example, garage doors, conventional doorbells, door openers, actuators with end position monitoring, and much more can be connected and controlled.

The module meets all necessary requirements and features safe isolation (low voltage protection) between the mains voltage and the input and output areas. It complies with the requirements of overvoltage category III (fixed installation).

General:

• System communication: PowerLine protocol digitalSTROM

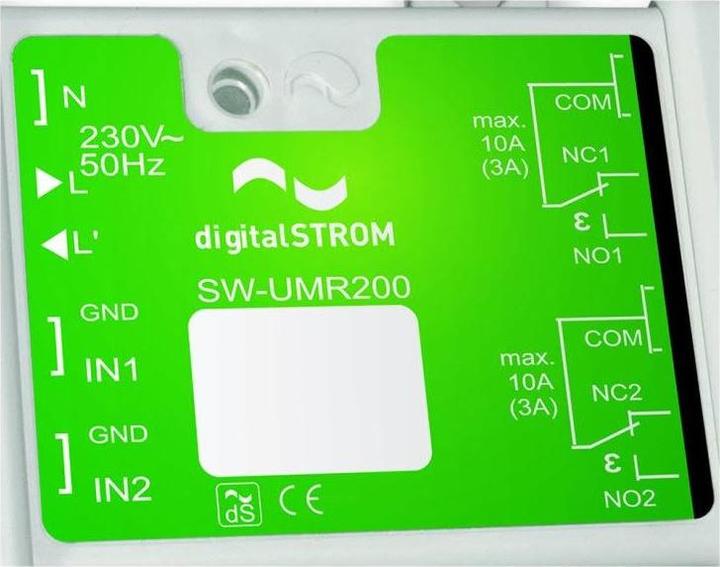

• Interfaces: 2x input 7.5 V - 230 V AC/DC isolated, 2x relay output isolated

Product type: Interfaces and IO modules

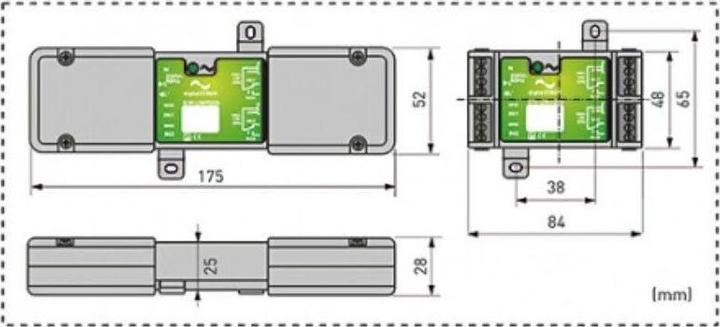

Dimensions:

• Depth: 28 mm
• Width: 52 mm
• Length: 175 mm

Power:

• Power supply: Cable
• Max load: 10 A resistive, 3 A inductive, 3 A capacitive
• Input voltage: 230 V

Additional information:

• Color: White.
