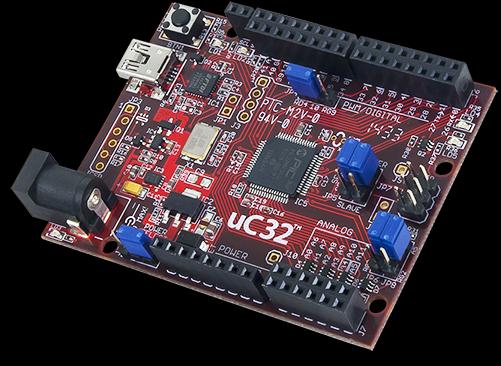

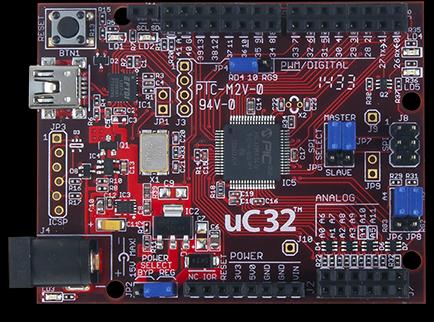

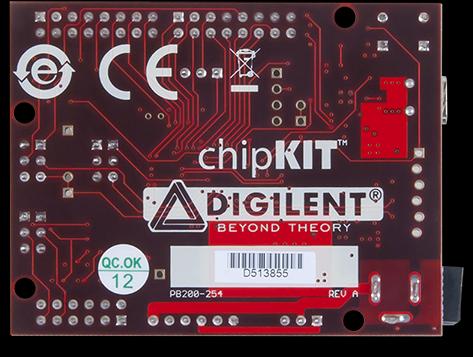

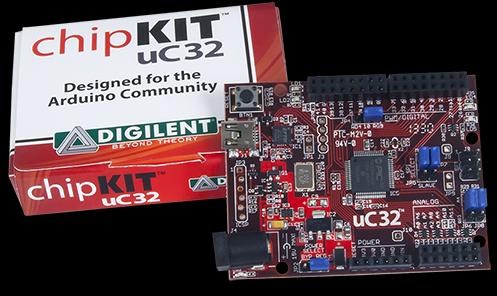

Digilent ChipKit uC32 DevBoard with UNO R3 Headers

Electronics kit
Ratings
Delivered between Wed, 25.6. and Thu, 26.6.
7 items in stock at supplier

Product details

Dev board with the PIC32MX340F512H processor featuring 512k Flash, 32k RAM, and a clock frequency of up to 80MHz. The ChipKit, developed by MicroChip and manufactured by Digilent, are development boards in the Arduino form factor, but equipped with more powerful PIC processors and additional I/O ports. A customized Arduino IDE can be used for programming.

The ChipKit uc32 board offers the following features:

  • USB connection (power supply & programming)
  • DC connection 5.5mm x 2.1mm (power supply 7V - 12V)
  • Microchip PIC32MX340F512H microcontroller
  • 512KB Flash
  • 32KB RAM
  • 80 MHz clock frequency
  • Two SPI and two I2C
  • 16 channel 10-bit ADC; five PWM outputs
  • 42 I/O pins
  • 3.3V operating voltage
  • 12 analog inputs
  • 7V to 15V input voltage
  • +/-18mA DC current per pin
  • 75mA consumption (typical)
  • Two user LEDs
  • Programmable with MPIDE
  • Compatible with MPLAB IDE and PICkit 3 ISP/Debugger.

Key specifications

Compatible hardware
Arduino
Item number
5999163

General information

Manufacturer
Digilent
Category
Electronics modules
Manufacturer no.
P00001455
Release date
19.7.2016

Compatibility

Compatible hardware
Arduino

Electronic module properties

Module type
Electronics kit
