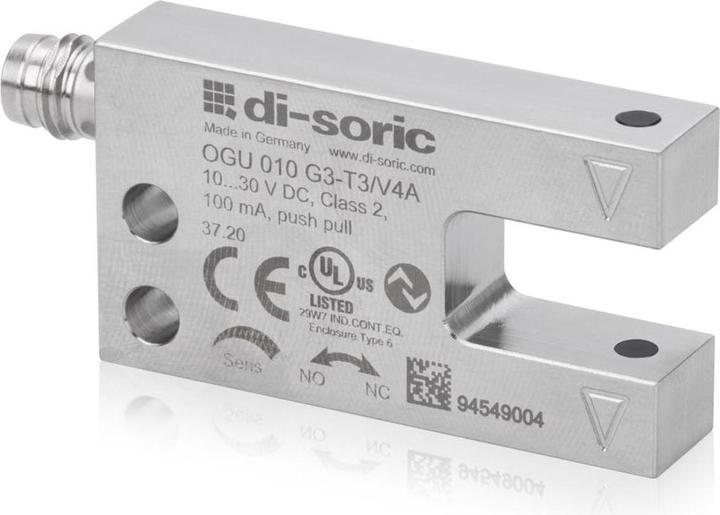

Di-Soric Fork light barrier
Delivered between Thu, 24.7. and Wed, 13.8.
Product details
Fork light barrier Functional principle: Optical Transmitted light source: LED Light colour: Infrared Fork width: 10 mm Operating voltage: 10 30 V DC Open-circuit current (max.): 30 mA Switching output: Push-pull, 100 mA, NO/NC Interface: IO-Link (V1.1, COM2 38.4 kBd, Smart Sensor Profile) Housing material: Stainless steel Dimensions H / L / W: 25, 45, 10 mm Ambient operating temperature: -25 +60 °C Connection: Plug, M8, 3-pin.
Item number | 44613398 |
Manufacturer | Di-Soric |
Category | Electronics modules |
Manufacturer no. | 213436 |
Release date | 28.3.2024 |
Country of origin | Germany |
CO₂-Emission | |
Climate contribution |
Length | 10 mm |
Width | 25 mm |
Height | 45 mm |
Specifications may include unverified machine translations.
30-day right of returnReturn policy
24 Months Warranty (Bring-in) Warranty provisions
