DFRobot XT90 male and female connector

Plugs and connectors
1Ratings
Delivered between Tue, 27.5. and Wed, 28.5.
More than 10 items in stock at third-party supplier
Supplied by

Product details

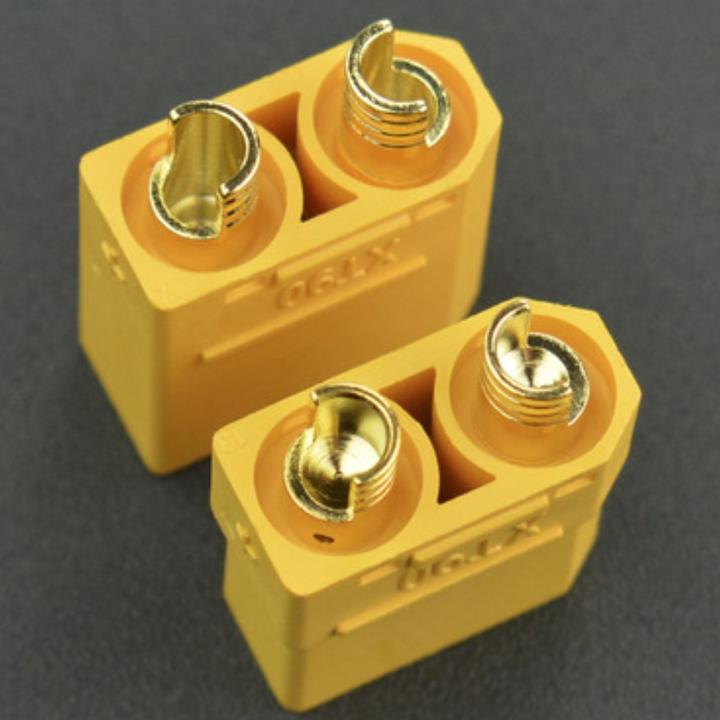

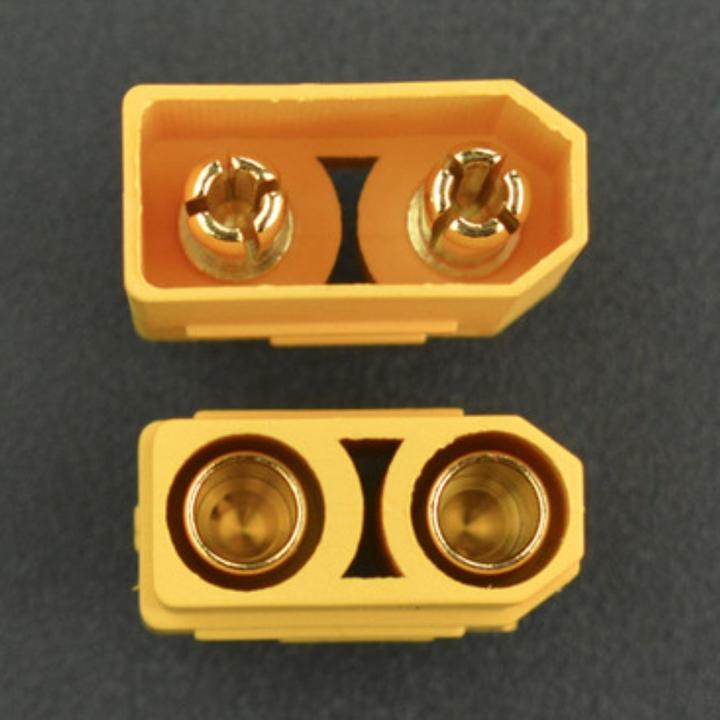

These are an XT90 connector and an XT90 socket from DFRobot. The connectors are designed for a maximum cable cross-section of 6 mm² (AWG10). The XT connector system has quickly established itself, especially in model building. The connectors are made of high-quality materials and are gold-plated. The semi-open solder sleeves are twisted together, preventing short circuits or unwanted solder bridges during soldering. When shrinking the cable, the heat shrink tubing can be pushed partially into the housing to avoid any exposed contact points.

Technical details:
Manufacturer: DFRobot
Manufacturer SKU: FIT0588
Type: XT90
Cable cross-section: 6 mm² (AWG10)
Max voltage: 500 V DC
Pulse current: 90 A
Continuous current: 40 A
Material: PA housing, gold-plated copper contacts
Contact resistance: 0.3 mΩ
Operating temperature: -20 °C – 120 °C
Safety certificate: UL/CE
Dimensions: 21 x 21 x 10 mm
Weight: 16.5 g

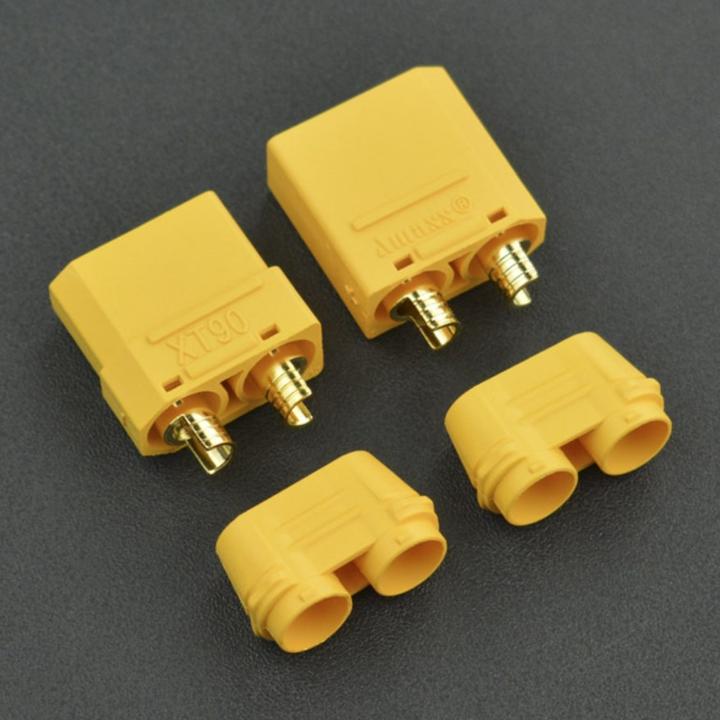

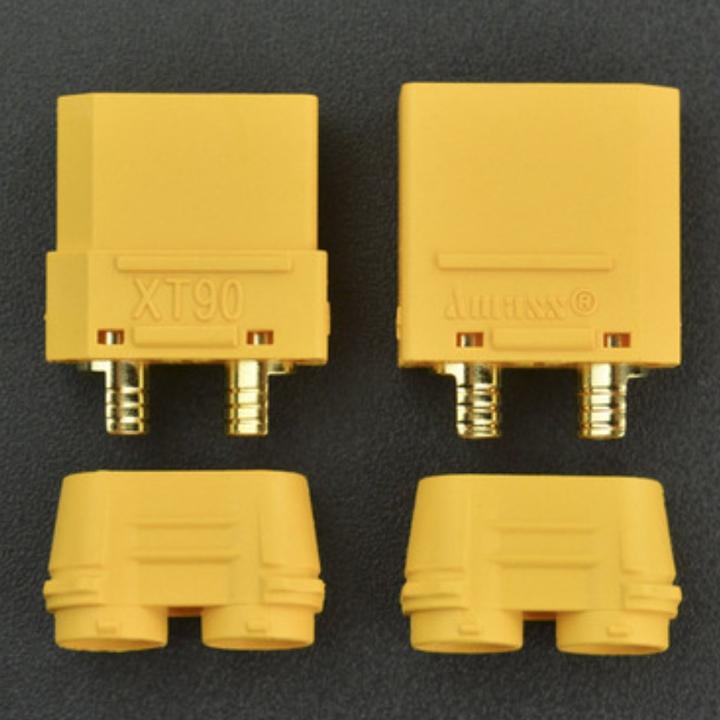

Delivery includes:
2x cap
1x XT90 connector
1x XT90 socket.

Key specifications

Type
Plugs and connectors
Item number
24937912

General information

Manufacturer
DFRobot
Category
Cable accessories
Release date
30.3.2023
Sales rank in Category Cable accessories
16 of 889

Colour

Colour
Gold
Exact colour description
Gold

Material

Material group
Metal
Material
Gold-plated copper contacts, PA housing

Cable accessory properties

Type
Plugs and connectors

Origin

Country of origin
China

Voluntary climate contribution

CO₂-Emission
Climate contribution

Scope of delivery

Items per sales unit
2 x

Product dimensions

Length
21 mm
Width
21 mm
Height
10 mm
Weight
16.50 g
