DFRobot XT30 male and female connector

Plugs and connectors
2Ratings
Delivered between Tue, 6.5. and Wed, 7.5.
More than 10 items in stock at third-party supplier
Supplied by

Product details

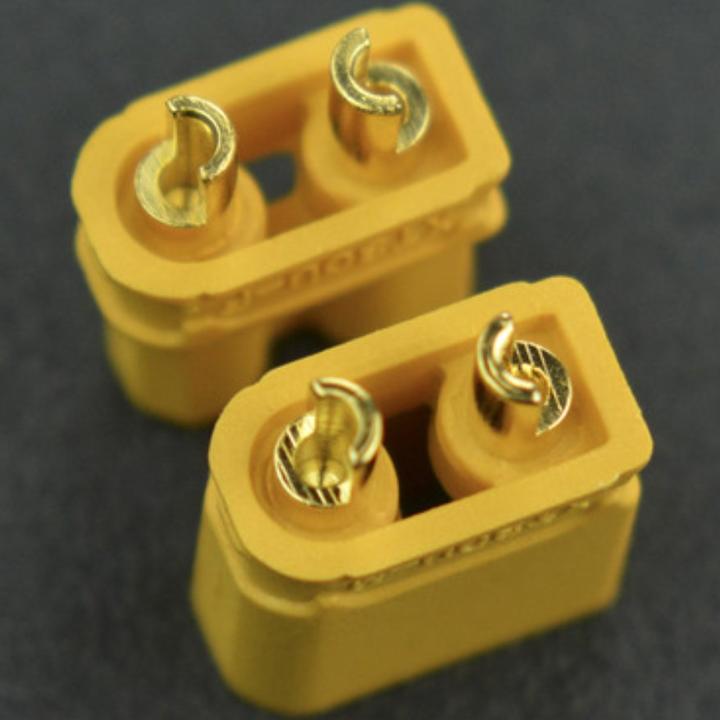

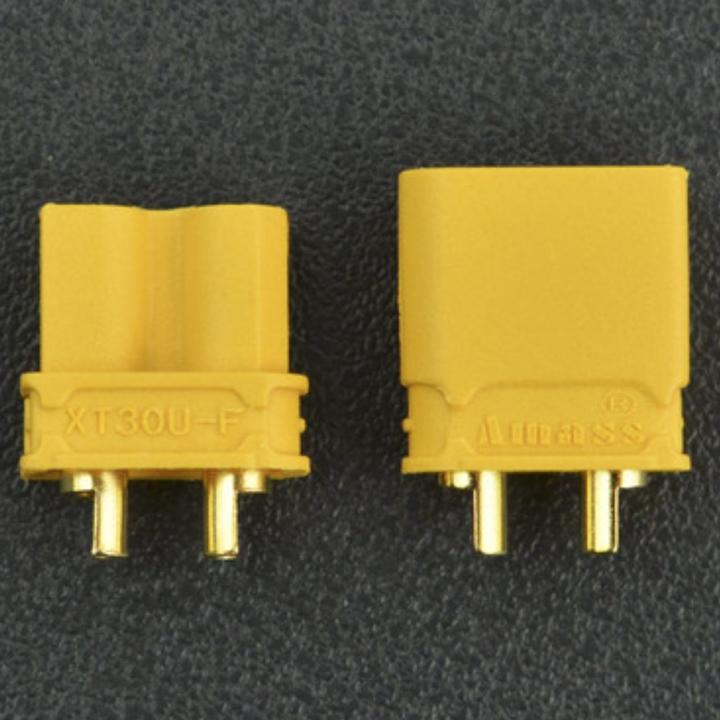

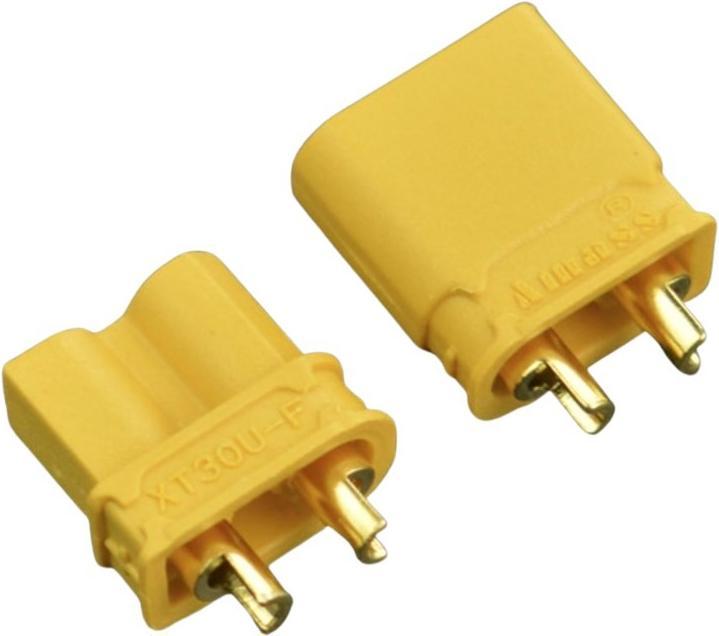

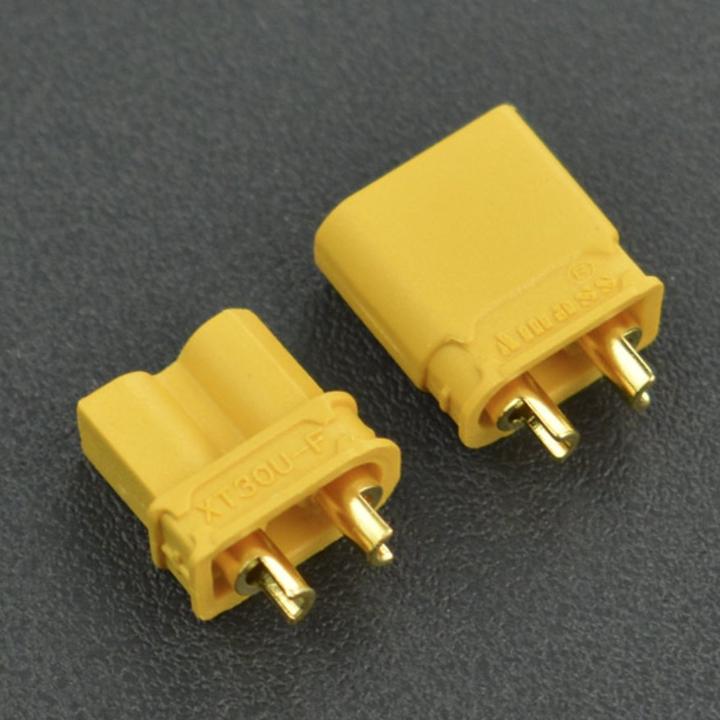

These are an XT30 connector and an XT30 socket from DFRobot. The connectors are designed for a maximum cable cross-section of 1 mm² (AWG18). The XT connector system has quickly gained popularity, especially in model building. The connectors are made of high-quality materials and are gold-plated. The semi-open solder sleeves are twisted together, preventing short circuits or unwanted solder bridges during soldering. When shrinking the cable, the heat shrink tubing can be pushed partially into the housing to avoid creating an open contact point.

Technical details:
Manufacturer: DFRobot
Manufacturer SKU: FIT0586
Type: XT30
Cable cross-section: 1 mm² (AWG18)
Max voltage: 500 V DC
Pulse current: 30 A
Continuous current: 15 A
Material: PA housing, gold-plated copper contacts
Contact resistance: 0.7 mΩ
Operating temperature: -20 °C – 120 °C
Safety certification: UL/CE
Dimensions: 10 x 10 x 5 mm
Weight: 2.5 g

Delivery includes:
1x XT30 connector
1x XT30 socket.

Key specifications

Type
Plugs and connectors
Item number
24937914

General information

Manufacturer
DFRobot
Category
Cable accessories
Release date
30.3.2023

Colour

Colour
Gold
Exact colour description
Gold

Material

Material group
Metal
Material
Gold-plated copper contacts, PA housing

Cable accessory properties

Type
Plugs and connectors

Origin

Country of origin
China

Voluntary climate contribution

CO₂-Emission
Climate contribution

Scope of delivery

Items per sales unit
1 x

Product dimensions

Length
5 mm
Width
10 mm
Height
10 mm
Weight
2.50 g
