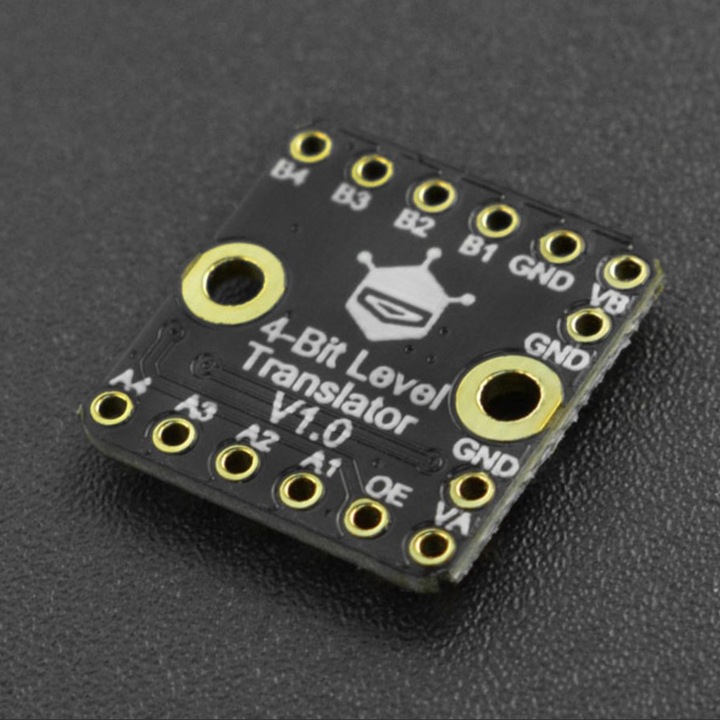

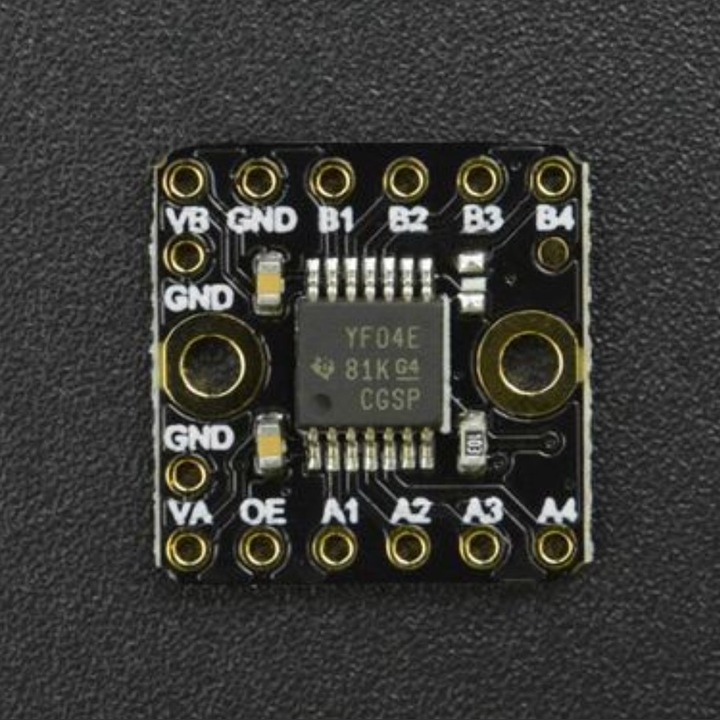

DFRobot Fermion 4bit Level Converter TXS0104E

This is a 4-bit level converter from DFRobot. The module has two separate configurable voltage supplies. The VCCA side accepts voltages from 1.65 to 3.6V. The VCCA voltage must be less than or equal to VCCB. The VCCB side accepts voltages from 2.3 to 5.5V. This allows bidirectional transmission of different voltage levels. The module can automatically detect the voltage values, and the translation speed can reach up to 24Mbps in push-pull applications.

Features:

• Low power consumption
• High translation speed (60Mbps in push-pull applications, 2Mbps in open-drain)
• Bidirectional automatic translation
• Supports I2C, UART, SPI, and OneWire

Technical details:

• Manufacturer: DFRobot
• Manufacturer SKU: DFR0843

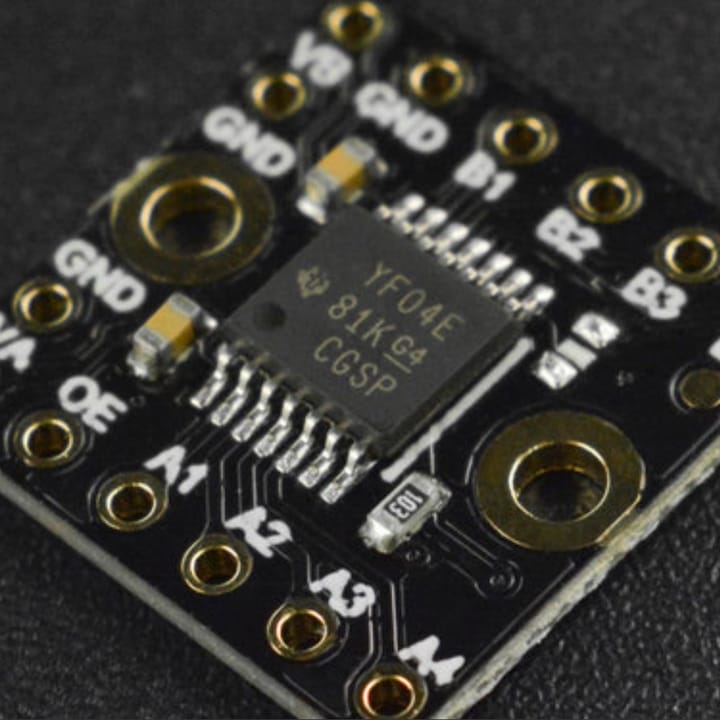

• Chip: TXS0104E
• VCCA Voltage: 1.65-3.6V
• VCCB Voltage: 2.3-5.5V
• Working current: 15µA
• Translation speed: 24Mbps in push-pull applications, 2Mbps in open-drain applications
• Working temperature: -30 to 75°C
• Mounting holes: M2
• Mounting hole spacing: 11mm
• Dimension: 15.5 x 15 x 2.5mm
• Weight: 2.3g

Scope of delivery:

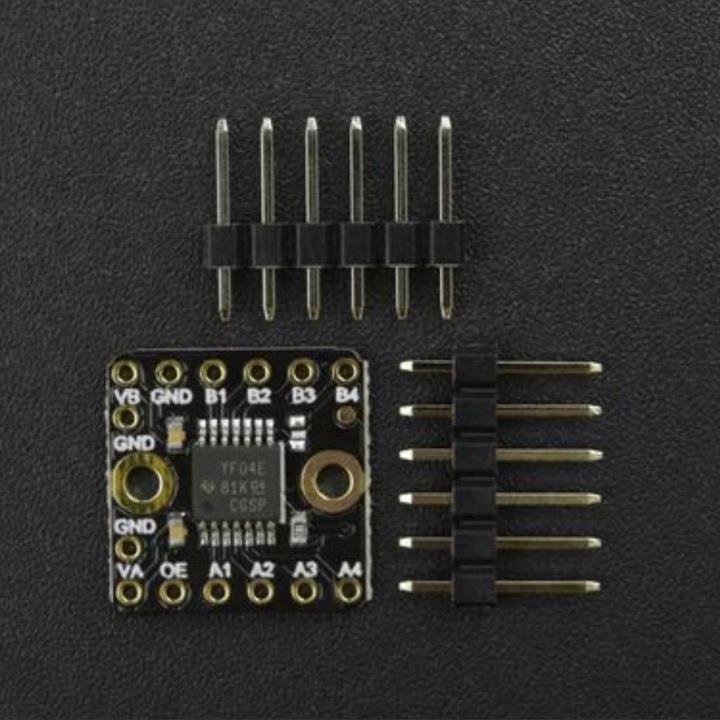

1x Fermion 4-bit Level Converter TXS0104E
2x 6-pin male connector.
