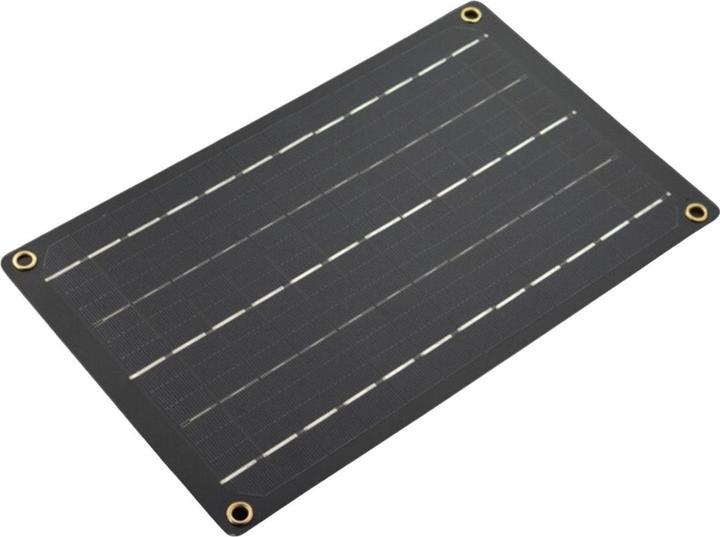

DFRobot 5V 1A mono-crystalline solar panel 6W with USB connection

6 W, 0.12 kg
Delivered between Tue, 27.5. and Wed, 28.5.
More than 10 items in stock at third-party supplier
Supplied by

Product details

With the solar panel, you can charge your smartphone when the sun is shining. (CO2 Neutral).

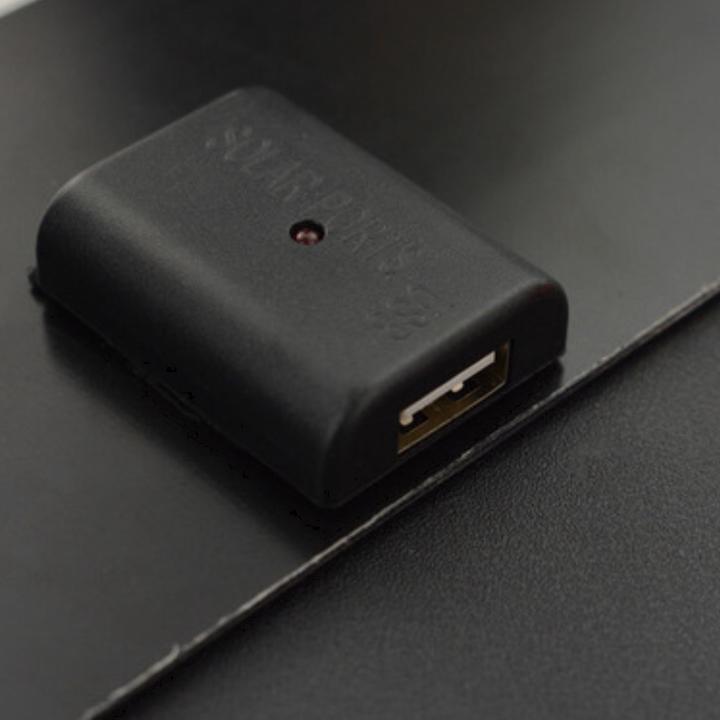

This powerful monocrystalline solar cell has a regulated 5V USB output (max. 1A). The ultra-thin, lightweight design weighs only 120g and is flexible.
When installing the solar panel, make sure the panel is facing the sun and no shade is covering the solar panel.

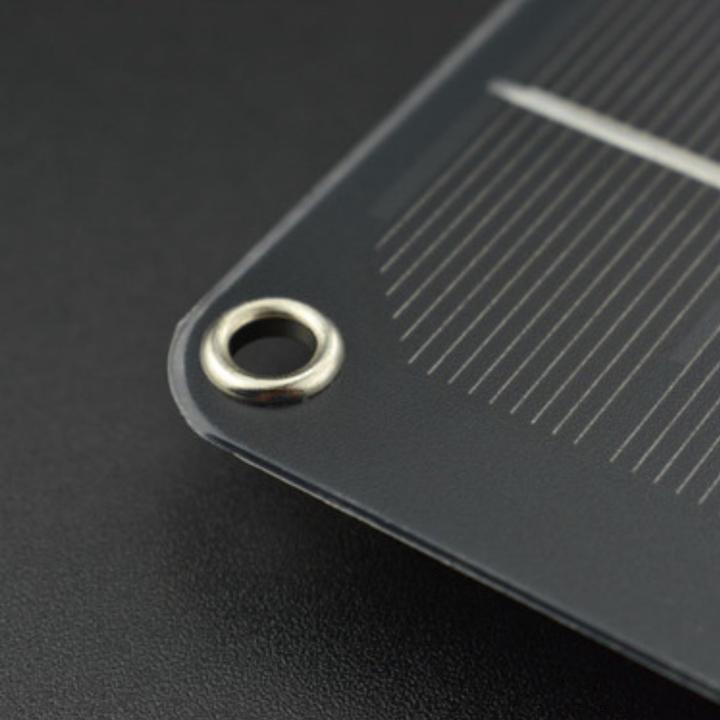

The eyelets allow you to attach it to your backpack etc. so you can charge on the go.
You can also connect this solar cell via a USB cable (just cut the plug on one side and connect the wires directly to the solar_IN) to a solar charge controller module for charging Li-Ion batteries.

Technical details:
Version: 1.1
Nominal voltage USB voltage regulator: 5V
Rated current USB: 1A
Maximum power solar: 6W
Open circuit voltage solar : 7.2V
Short circuit current solar: 1.1A
Material: Monocrystalline Silicon Flexible
Operating temperature: -30°C to +70°C

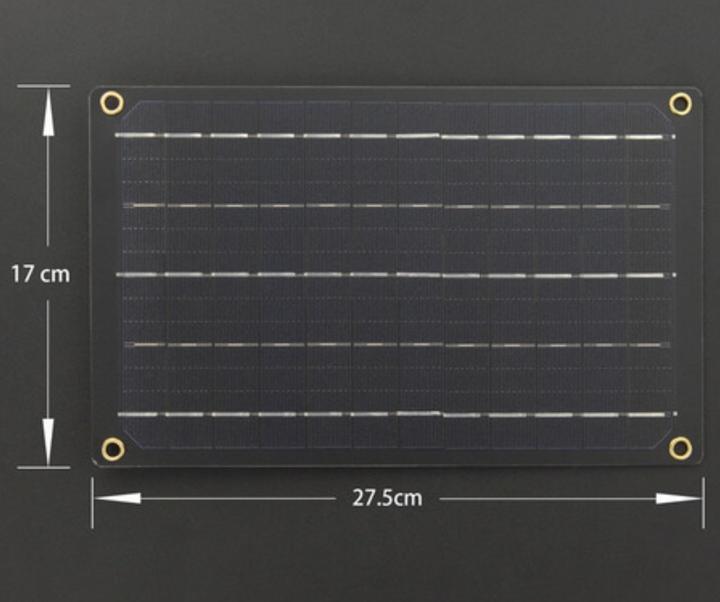

Dimensions: 275 x 160 x 2mm
Weight: 120g

Scope of delivery:
1x 5V 1A Monocrystallines Solar Panel 6W with USB connector.

Key specifications

Length
16 cm
Width
27.50 cm
Cell type
Monocrystalline
Nominal power
6 W
Item number
24874719

General information

Manufacturer
DFRobot
Category
Solar panels
Release date
24.3.2023

Material

Material
Monocrystalline silicon

Solar panel properties

Cell type
Monocrystalline
Nominal power
6 W
Rated current (MPP)
1 A
Short circuit current
1.10 A
Open circuit voltage (UMPP)
7.20 V

Origin

Country of origin
China

Voluntary climate contribution

CO₂-Emission
Climate contribution

Product dimensions

Length
16 cm
Width
27.50 cm
Height
0.20 cm
Weight
0.12 kg
