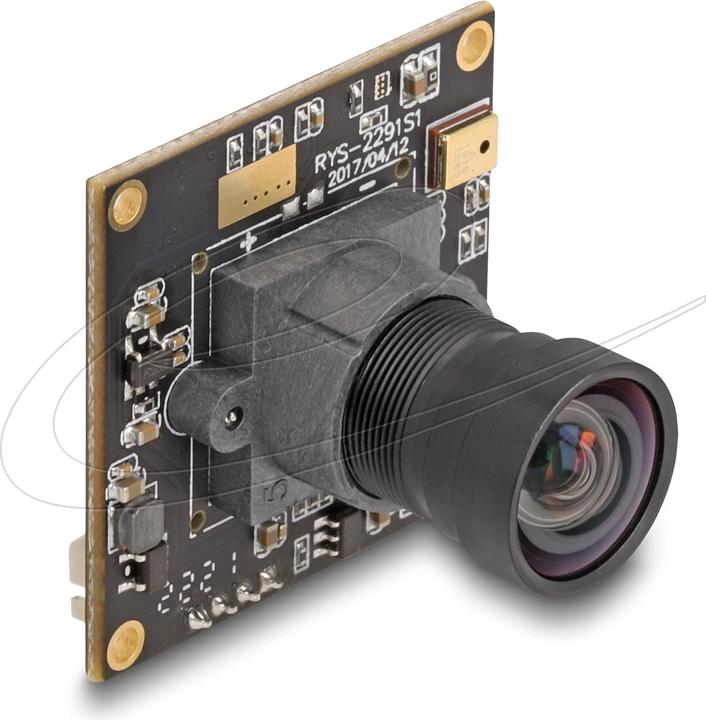

Delock USB 2.0 camera module with WDR 2.1 megapixel IMX291LQR-C

This USB 2.0 camera module from Delock offers high resolution in a very compact design with low power consumption. It is ideal for integration into industrial components such as IPCs, embedded systems, sensors, and device manufacturing. The use of a light-sensitive sensor with back-side illumination (BSI) expands the application range of this module.

WDR - Wide Dynamic Range
Allows for the adjustment of the brightest and darkest areas of the image to enhance the quality of the still image.

Specifications

• Connection: 1 x 4 Pin USB 2.0 socket SMT, pitch 2.0 mm
• Resolution: 2.1 Megapixels
• Sensor: IMX291LQR-C Sony® Starvis
• With optical IR filter
• 2 x Microphone
• Maximum resolution: 1080p @ 30 fps (1920 x 1080)
• Power consumption: approx. 100 mA
• Operating voltage: 5 V DC
• Operating temperature: -20 °C ~ 70 °C
• Operating humidity: ≤ 80 %
• Sensor size: 1/2.8"
• Sensitivity: 1 V / lx s
• Signal-to-noise ratio (SNR): approx. 29.4 dB
• Dynamic range: 74 dB
• Automatic white balance (AWB)
• Fixed focus: 0.3 m - infinity
• Aperture: F/2.7
• Lens thread: M12
• Frame rates: all resolutions MJPG 30 fps
• Dimensions (LxWxH): approx. 32.0 x 32.0 x 22.3 mm

System requirements

• Device with UVC support
• Windows 10/10-64/11
• DirectX 9.0c or higher
• Linux Kernel 2.6.15 or higher with Video4Linux

Package contents

• Camera module.
