Delock Switch 2-1 8K 60 Hz HDMI, number of inputs

This HDMI switch from Delock is a manual bidirectional switch for connecting various devices with HDMI ports, offering two different usage options.

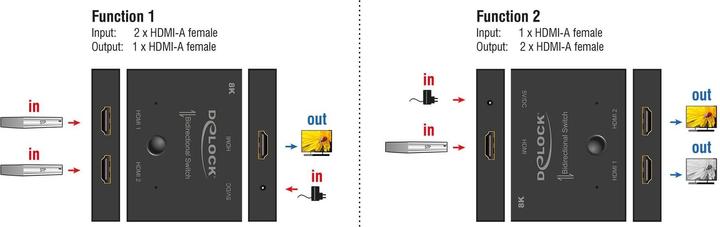

1. Up to 2 devices can be connected to a monitor, TV, or projector. The device displayed on the screen can be selected with the push of a button.
2. One HDMI device can be connected to up to 2 screens. The screen displaying the signal can be selected with the push of a button. Simultaneous output on multiple screens is not possible.

Specifications:

• Connections:
• Function 1: Input: 2 x HDMI-A socket, Output: 1 x HDMI-A socket
• Function 2: Input: 1 x HDMI-A socket, Output: 2 x HDMI-A socket
• 1 x 5 V DC power socket 1.35 x 3.5 mm (optional)
• Ultra High Speed HDMI specification
• Supports HDR
• HDMI port switching via button
• Resolution up to:
• 7680 x 4320 @ 60 Hz
• 3840 x 2160 @ 144 Hz (depending on the system and connected hardware)
• Does not require external power supply
• Sturdy metal housing
• Color: black
• Dimensions (LxWxH): approx. 83 x 63 x 18 mm

System requirements:

• HDMI cable

Package contents:

• Bidirectional switch

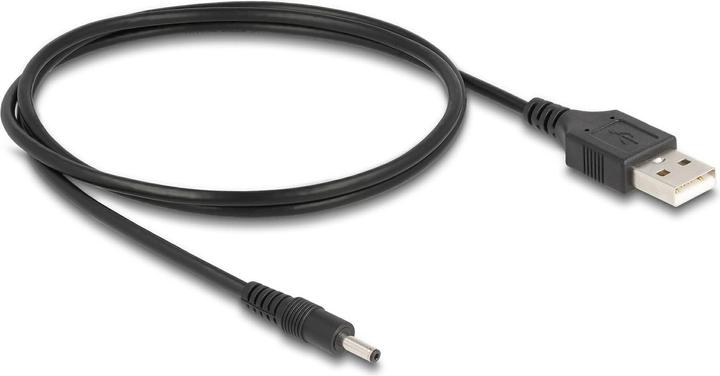

• USB power cable, length: approx. 1 m
• User manual.
