Delock S/PDIF TOSLINK Switch 7,60cm (3") 1 Out with IR remote control and USB power supply

Short Description

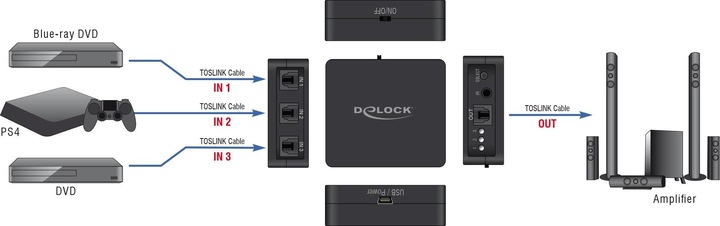

With this TOSLINK switch from Delock, up to three TOSLINK devices, for example, can be connected to a home theater system.

Supports HD Audio Formats
The switch supports all common 2.0 and 5.1 audio formats such as LPCM, Dolby Digital, and DTS Audio, providing a cinematic sound experience.

High-Resolution Sampling Rate
The switch offers a sampling rate of up to 24 Bit and 96 kHz, allowing for lossless sound playback in the high-resolution audio range.

Long Transmission Distance
The switch supports an output transmission distance of up to 40 m over an optical TOSLINK cable with a signal loss of less than 0.2 dB/m.

Manual Switching or with IR Remote Control

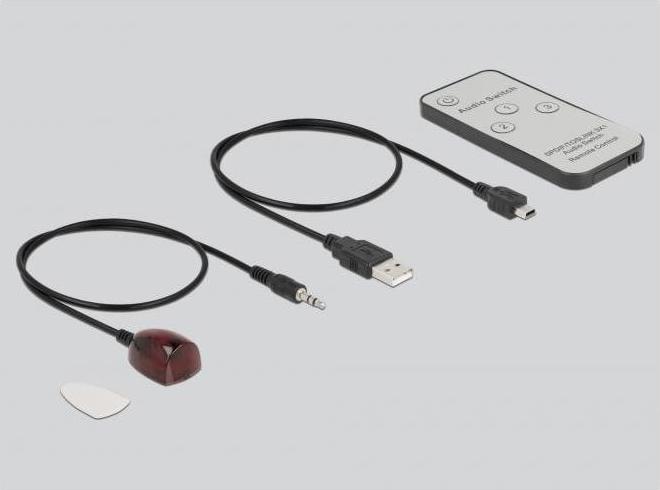

The switch can be toggled or powered off using the buttons on the device or the included infrared remote control, making it easy and convenient to switch between inputs.

Last Time Working State Memory
The switch automatically remembers the last working state when powered off and thus uses the last selected input.

USB Power Supply
The switch does not require an additional external power supply; it is powered via the included USB cable.

Specifications

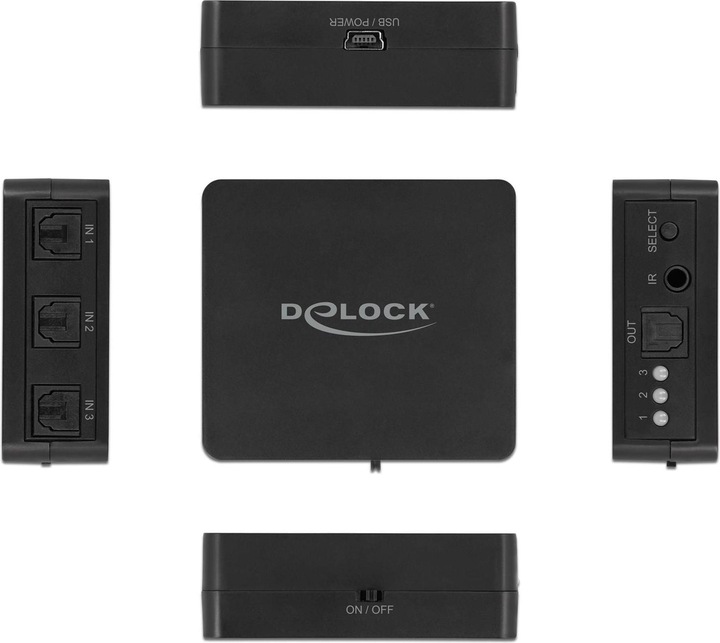

Connections: 3x TOSLINK socket S/PDIF, 1x USB Type Mini-B socket (5 V power supply), 1x 3.5 mm 3-pin jack (infrared input)
Output: 1x TOSLINK socket S/PDIF
Supported Sampling Rates: 32 / 44.1 / 48 / 96 kHz
Bitrate: 16 - 24 Bit
Baud Rate: max. 16 Mbps
Supports all common 2.0 and 5.1 audio formats: LPCM, Dolby Digital, DTS Audio
Supports Signal Retiming
On/Off switch
Switch for changing the input source
3 x LED display (blue) for selected input
Plastic housing
Color: black
Dimensions (LxWxH): approx. 61 x 54 x 20 mm
Voltage: 5 V
Overvoltage protection
USB Bus Power

System Requirements
