Delock Serial cable RS-232 D-Sub9 socket to D-Sub9 socket S

Description
This serial D-Sub9 cable from Delock can power devices through a voltage supply at pin 9. It is suitable for point-of-sale systems (POS), printers, barcode scanners, etc.

Power Supply

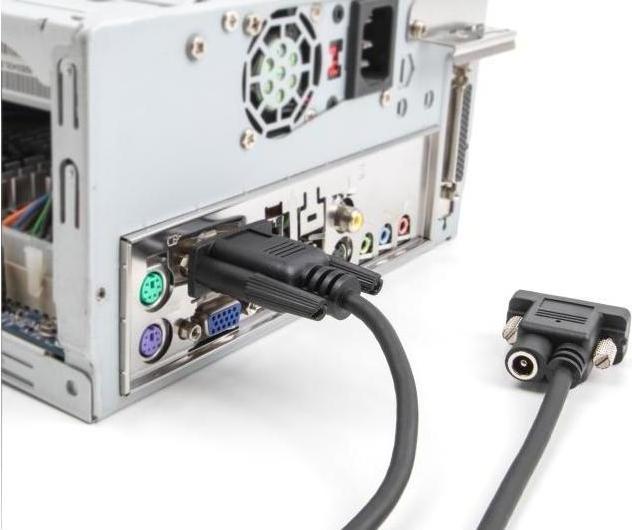

The power supply at the D-Sub9 socket of the RS-232 cable can be provided, for example, with a power adapter and the corresponding DC connection.

Specifications

• Connectors:

1 x Serial D-Sub9 socket with screws (pin 9 not connected)

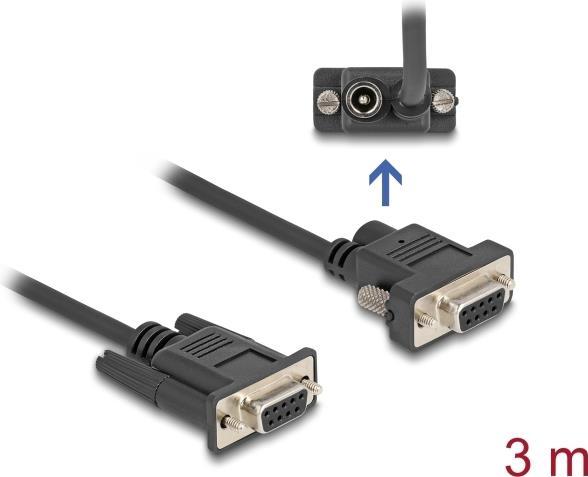

1 x Serial D-Sub9 socket with screws (DC power connection at pin 9)
1 x DC 5.5 x 2.1 mm socket

• Pin assignment: 1:1
• Current at pin 9: max. 3 A
• Wire gauge: 26 AWG
• Insulation: PVC
• Color: black
• Screw type: #4-40 UNC
• Cable diameter: approx. 4.5 mm

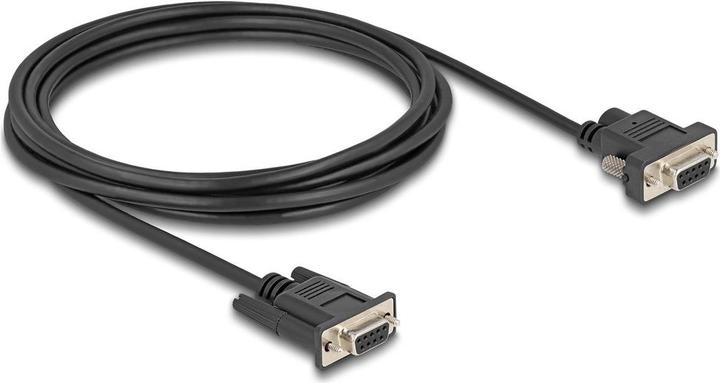

• Cable length including connectors: approx. 3 m

Specification of the power connection

• Input: DC socket
• Output: D-Sub socket pin 9
• Shield outside, positive inside
• Dimensions:

inside: ø approx. 2.1 mm
outside: ø approx. 5.5 mm

Package contents

• Cable.
