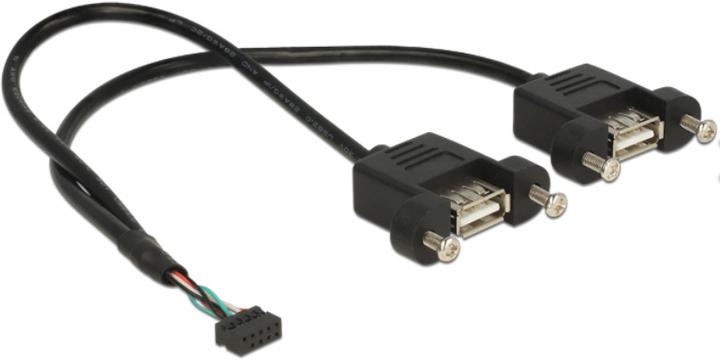

Delock Pin USB 2.0/ 2 x USB 2.0 Type-A, 28 AWG, /s

This cable is designed to extend a USB 2.0 connection and can be used to connect various devices. The sockets can be secured with two screws, for example, to a slot plate, a cable channel, or a housing with the appropriate cutout. This can be used to install a USB socket in an easily accessible position. The cable is particularly suitable for self-constructed computer systems.

Specification:

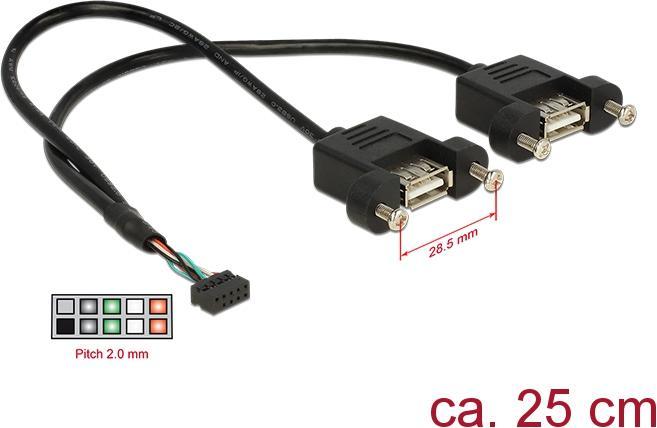

• Connectors: 1 x 10 Pin USB 2.0 header socket > 2 x USB 2.0 Type-A sockets with nuts for installation
• Pitch: 2.00 mm
• Pin 10 = Key
• Screw type: M3
• Installation opening: approx. 17.5 x 11.5 mm, drilling approx. 28.5 mm hole spacing
• Wire gauge: 28 AWG
• Cable diameter: approx. 4 mm
• Contacts with gold plating
• Data transfer rate up to 480 Mb/s
• Color: black
• Length including connectors: approx. 25 cm

System requirements:

• An available 2.00 mm USB 2.0 header connector

Package contents:

• USB installation cable
• 4 screws.
