Delock Mini Desktop Patchpanel RJ45 jack 4 port Cat.6A shielded black - for

This patch panel from Delock is the ideal solution for small network installations, distributions in control cabinets, or applications with limited installation space.

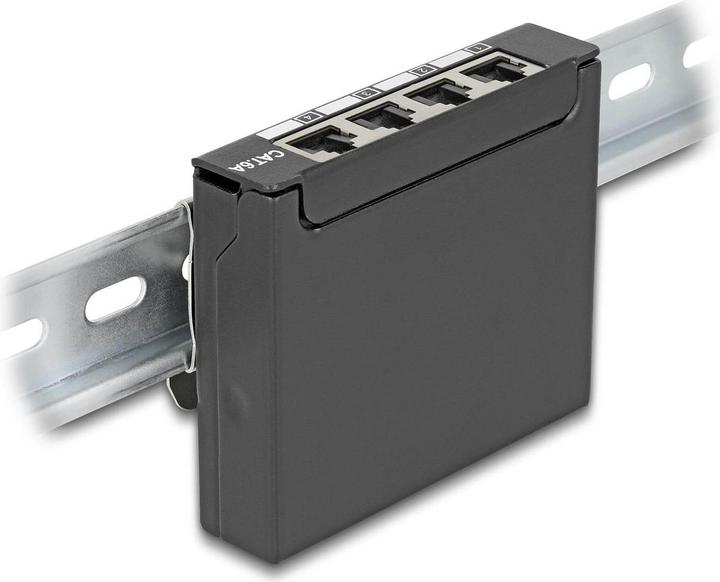

Versatile mounting on table, wall, or DIN rail
The distributor can be mounted either on a table, on the wall, or on 35 mm wide DIN rails. The included clips allow for easy mounting on the DIN rail, making it perfect for distribution cabinets or industrial environments. Alternatively, direct wall mounting is also possible, for example in small technical rooms, junction boxes, or anywhere a rack is not available.

RJ45 sockets with dust covers
The RJ45 sockets are equipped with practical dust covers that protect the contacts from dirt and dust.

Metal housing
The robust metal housing in black provides a durable and professional installation.

Technical specifications:

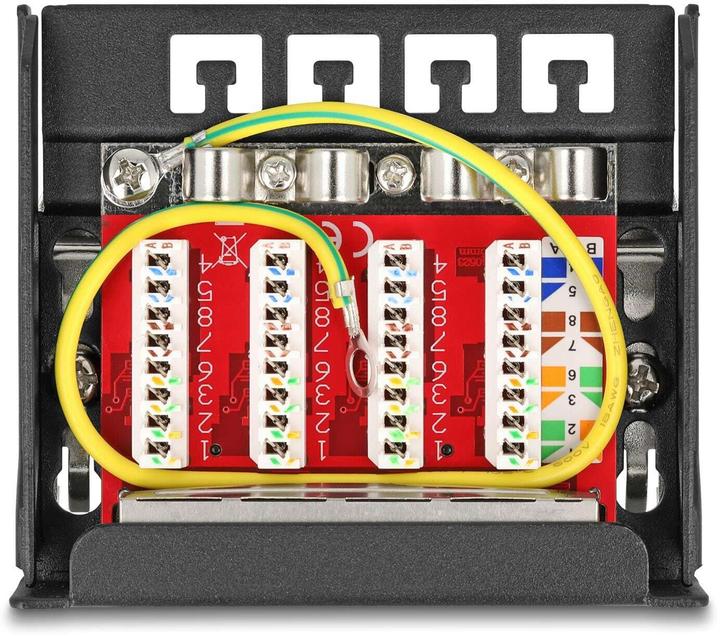

• Connections: 4 x RJ45 socket; 4 x LSA strip
• Cat.6A specification

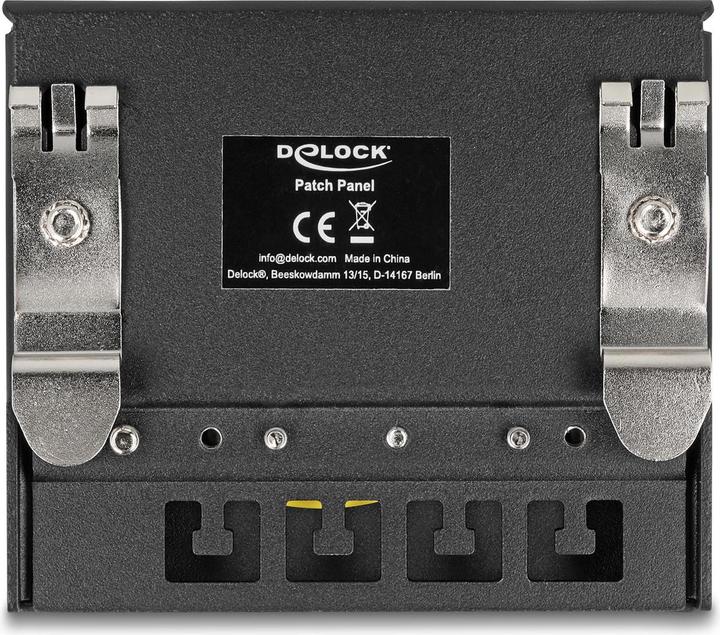

• Mounting options: table mounting; wall mounting (with drill holes); 35 mm DIN rail mounting (clips included)
• Shielded
• Wiring according to TIA-568A/B
• For solid and stranded conductors (26 - 22 AWG)
• Housing material: metal
• Color: black
• Dimensions (LxWxH): approx. 93 x 80 x 22 mm

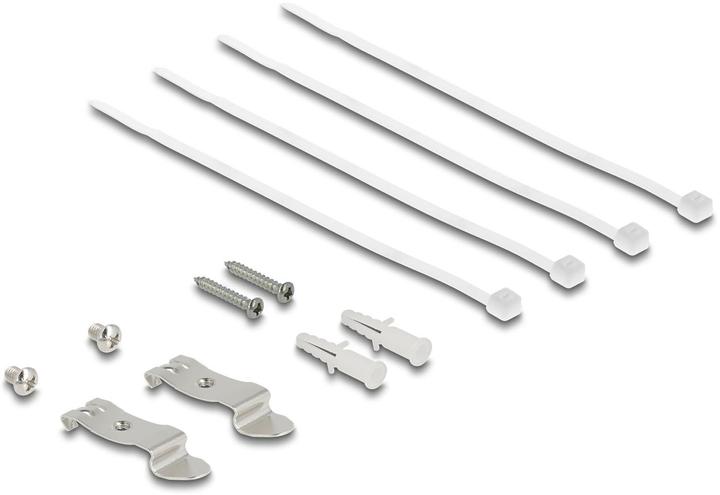

Delivery includes:

• Patch panel
• Grounding cable
• 2 x DIN rail clips
• 2 x screws M5 x 6 mm
• 2 x screws 3.7 x 20.0 mm
• 2 x connectors 5.5 x 27.4 mm
• 4 x cable ties 2.5 x 100 mm.
