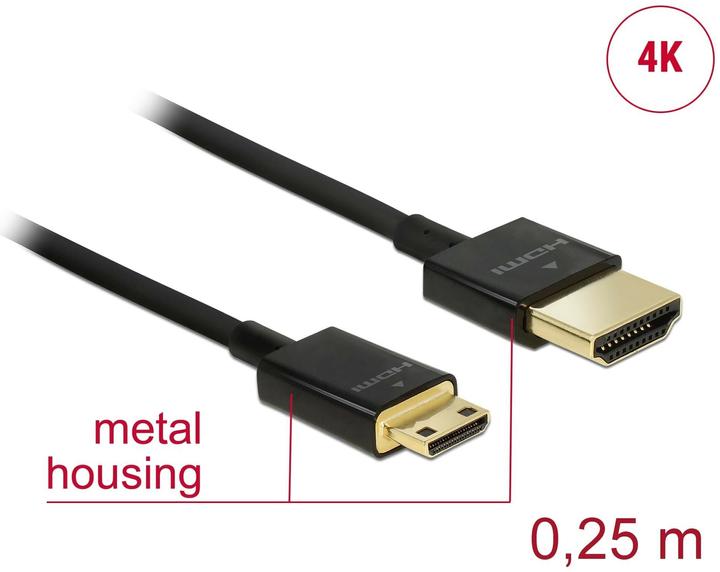

Delock HDMI (Typ A) — mini HDMI (Typ C)

The Delock High Quality High Speed HDMI with Ethernet Cable allows for the connection between a camera or tablet with a Mini HDMI interface and a monitor or television with an HDMI-A port. It is particularly distinguished by its small diameter and short connectors. The triple-shielded cable combines fast data transmission with audio, video, and Ethernet connectivity in one. With support for a maximum bandwidth of 18 Gb/s, it can display content in 4K resolution (maximum frame rate of 60 Hz), 3D content in 4K resolution (maximum frame rate of 30 Hz), as well as content in the 21:9 cinema aspect ratio. The cable enables the simultaneous transmission of two video channels to present video streams for two users on one screen, as well as the simultaneous transmission of up to four audio channels. The quality of audio transmissions is significantly enhanced by a sampling rate of up to 1536 kHz.

Special features:

• Extra short connectors with full metal shielding
• Particularly small cable diameter
• Connectors: High Speed HDMI-A 19 Pin plug and High Speed HDMI Mini-C 19 Pin plug
• High Speed HDMI with Ethernet (HEC) specification
• Wire gauge: 36 AWG
• Cable diameter: approx. 3.2 mm
• Cable structure: twisted
• Copper wire
• Contacts with gold plating
• Triple-shielded cable
• Metal housing
• Transmission of audio and video signals
• Data transfer rate up to 18 Gb/s
• Resolution up to 3840 x 2160 @ 60 Hz (depending on the system and connected hardware)
• 3D support: up to 1920 x 1080 @ 60 Hz; 3840 x 2160 @ 30 Hz (depending on the system and connected hardware)
• Supports 21:9 cinema aspect ratio
• Supports 1080p HFR (High Frame Rate) 3D
• Up to 120 Hz refresh rate
• Supports the simultaneous transmission of 2 video channels to display one screen for two viewers.
