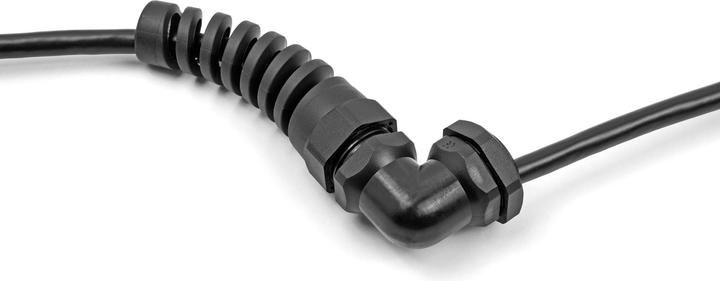

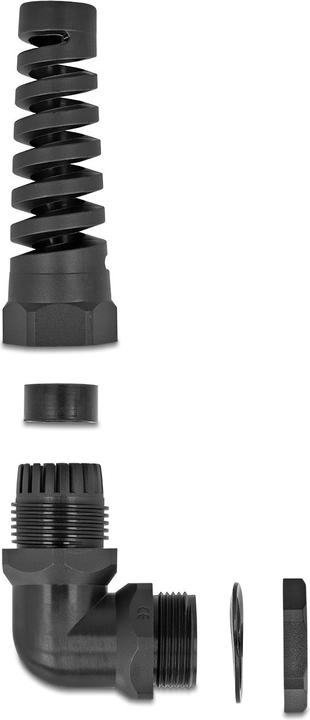

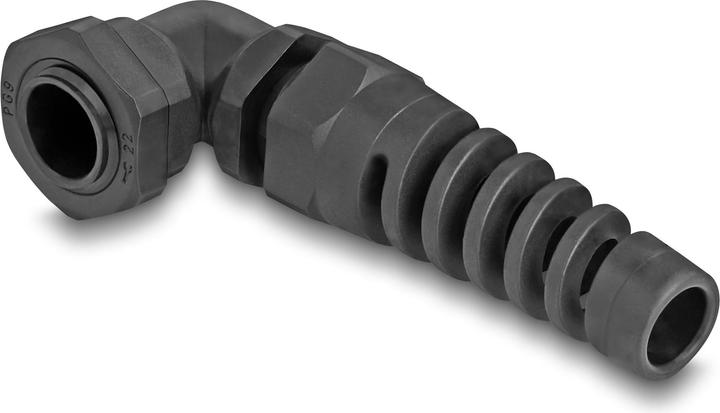

Delock Cable gland with strain relief 90° angled PG

This cable gland from Delock allows for a waterproof seal to the housing for the passage of cables and electrical lines. The angled design is perfect for using the cable gland in installation areas with limited space.

Additional protection through strain relief
Thanks to the bend protection spiral, the flexible cables are secured and protected from excessive bending, for example, in moving machine parts.

IP68 dust and waterproof
The cable gland also provides increased protection against dirt and moisture.

Versatile application

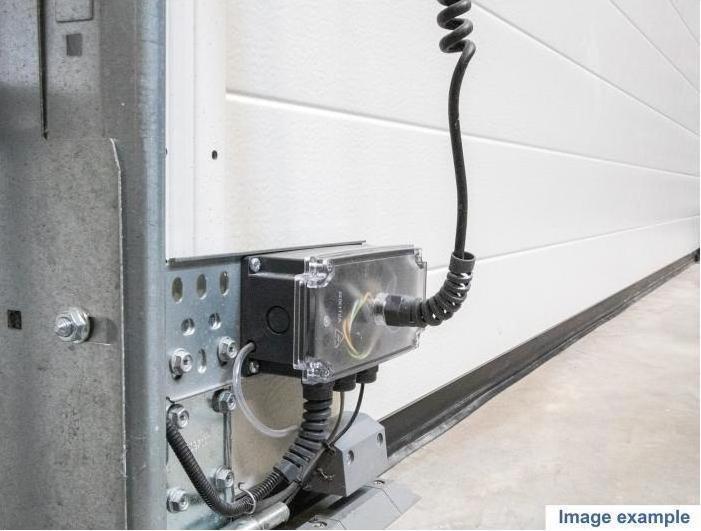

The robust design is ideal for use in automation, the robotics industry, and machinery.

Specifications

• Thread size: PG9
• Thread length: 8 mm
• Wrench size: 19 mm
• Protection class: IP68
• Cable diameter:

min.: 4 mm
max.: 8 mm

• Operating temperature: -40 °C ~ 100 °C
• Material: Plastic
• Color: black RAL9005

Package contents

• Cable gland.
