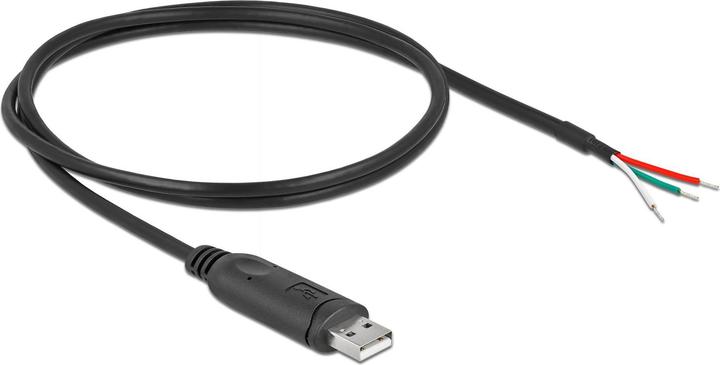

Delock Adapter cable USB 2.0 Type-A to serial RS-232 with 3 open cable ends 1 m

This Delock USB 2.0 Type-A to serial RS-232 adapter cable is suitable as a connection cable between a device with USB 2.0 and a device with an RS-232 port. With the tinned open cable ends, the connection can be made directly to an RS-232 device port or flexibly with various terminal blocks. Additionally, it allows for the creation of custom adapters and cable configurations.

Specifications

• Connectors:

1 x USB Type-A plug
1 x Serial RS-232 3 x open cable ends (tinned)

• Chipset: FTDI FT232R
• Compatible with UHCI / OHCI / EHCI controllers
• Data bits: 7 or 8
• Stop bits: 1 or 2
• Parity: None, Space, Even, Odd, Mark
• Data transfer rate up to 230.4 Kbps

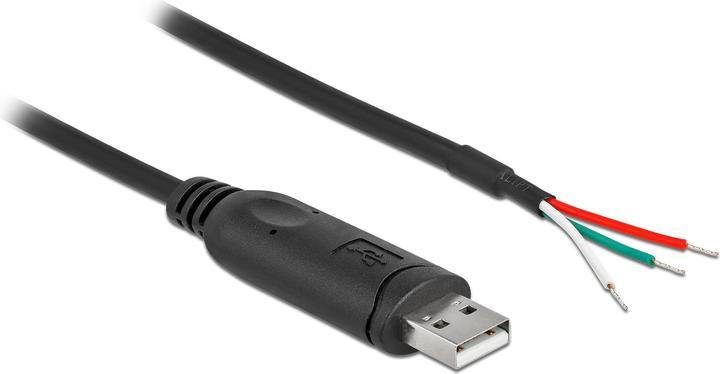

• Pin assignment: RXD (red), TXD (white), GND (green)
• ESD overvoltage protection IEC 61000-4-2

HCP & VCP: ±4 kV
Air discharge: ±8 kV
Contact discharge: ±4 kV

• Cable diameter: approx. 5 mm
• Wire gauge: 26 AWG
• Conductor: Copper stranded wire
• Insulation: PVC
• Cable length including connectors: approx. 1 m
• Color: black
• Operating temperature: -10 °C to 80 °C

System Requirements

• Mac OS 10.13 or higher
• Linux Kernel 2.6 or higher
• Windows 8.1/8.1-64/10/10-64/11
• Windows Server 2012 / Server 2012R2 / Server 2016
• PC or notebook with a free USB Type-A port

Package Contents

• USB Type-A to 1 x serial adapter.
