DC Solar Solar module E680M48 black

Powerful modules in a compact size. With the DCsolar Power E series, we place special emphasis on high performance with particularly small module dimensions. These modules excel in generating high yields even in poor sunlight conditions, thanks to the use of highly efficient back-contact cells.

Top performance for the highest demands:

• Monocrystalline back-contact solar cells
• Highest daily yields in the smallest area
• Best low-light performance
• Temperature-stable voltage

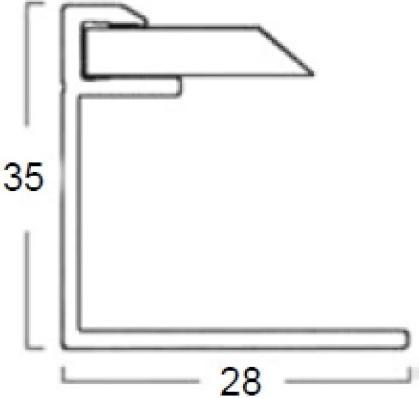

• Sturdy hollow chamber profile frame
• MultiContact-compatible connection plugs

Technical specifications:

• Module type: E 680M46 black
• Average daily yield in summer: 750 Wh/d
• Rated power (Pmpp): 170 Wp
• Max. system voltage (Vmax): 70 V
• Voltage (Umpp): 19.80 V
• Open-circuit voltage (Voc): 24.10 V
• Current (Impp): 8.3 A
• Short-circuit current (Isc): 9.15 A

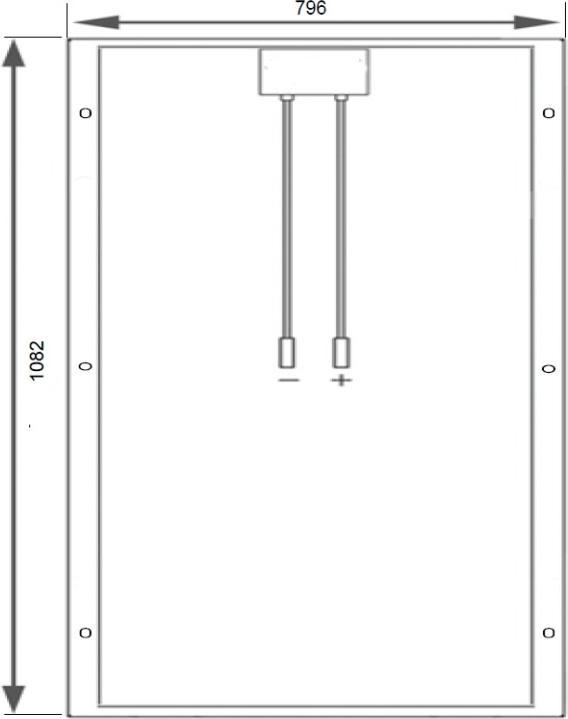

• Dimensions in mm (L x W x H): 1082 x 796 x 35 mm
• Weight: 11.0 kg
• Temperature coefficient Pmpp: -0.32 %/°C
• Temperature coefficient Uoc: -0.28 %/°C
• Temperature coefficient Isc: +0.057 %/°C
• NOCT: 46 +/-2°C
• Operating temperature: -40 °C to +85 °C
• Number of cells: 48
• Junction box: IP65
• Connection cable, plug: MC4-compatible, 90 cm
• Measurement accuracy Pmpp at STC: ± 10%
• Frame color: black
• Back sheet color: white.
