Features
Product details

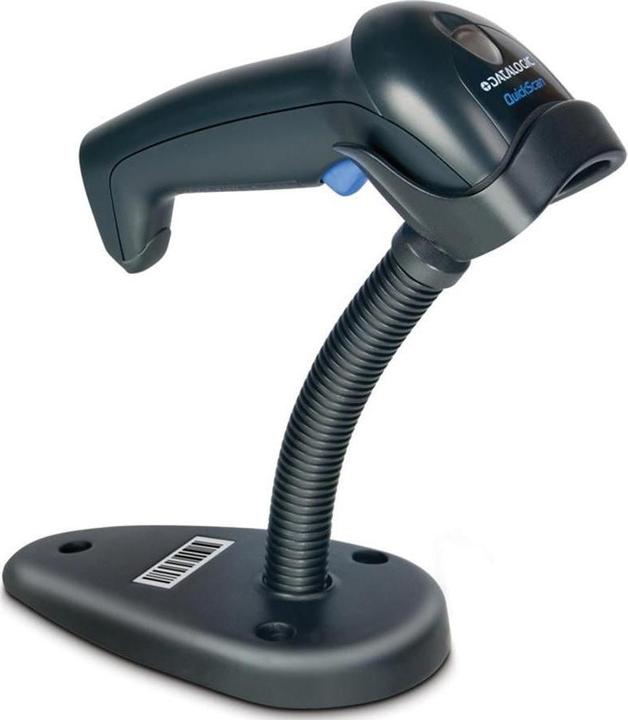

Thanks to the benefits of area imaging technology, the demand for 2D bar code readers has been growing steadily in recent years, and the QuickScan QD2400 2D Imager is designed specifically for retailers.
With superior omni-directional reading performance, it captures virtually any code. Its elegant design and lightweight ergonomic shape are complemented by high robustness. Designed specifically for point-of-sale applications, the QuickScan QD2400 is equipped with a new illumination and aiming system. The dark red illumination reduces the visual impact on the user, while two blue LED triangles act as aiming devices, making daily scanning quick and easy. The QuickScan QD2400 is an imager that reads both linear barcodes and 2D codes - even from the display of a mobile phone or customer card. Another important advantage of the imager technology is its long product life, which means lower operating costs.
| Scanner type | Hand-held scanner |
| Connections | RS-232, USB |
| Signal transmission | Cable |
| Documents | |
| Item number | 3484370 |
| Manufacturer | |
| Category | |
| Manufacturer no. | QD2430-BKK1S |
| Release date | 15.12.2017 |
| Sales rank in Category Barcode scanners | |
| External links | |
| Maximum order quantity | 28 |
| Colour group | Black |
| Exact colour description | Black |
| Scanner type | Hand-held scanner |
| Barcode Scanner Version | Scanner USB + Stand Kit |
| Scanning method | Imagers |
| Barcode Scanner Features | Keyboard inscription |
| Connections | RS-232, USB |
| Signal transmission | Cable |
| Protection type (IP code) | IP42 |
| Max. drop height | 1.50 m |
| Scanner functions | 2D barcodes |
| Minimum print contrast | 25 % |
| read indicators | Beeper, Datalogic "Green Spot" read confirmation, Good Read LED |
| Maximum scanning distance | 35 cm |
| Stack codes | All GS1 DataBar Codes, Aztec Code, Aztec Mesas, British Post, Canadian Post, China Han Xin Code, Data matrix, EAN/JAN, MaxiCode, Micro QR Code, QR Code Post Codes Australian Post |
| Read angle lengthwise max. | 60° |
| Read angle cross max. | 65° |
| Max. range | 0.35 m |
| Scope of delivery | Pedestal, USB cable |
| Length | 163 mm |
| Width | 91 mm |
| Height | 41 mm |
| Weight | 145 g |
| Length | 22.50 cm |
| Width | 20.80 cm |
| Height | 8 cm |
| Weight | 852 g |
Specifications may include unverified machine translations.
