Datalogic Gryphon I GBT4500-HC
1D barcodes, 2D barcodes5 items in stock at third-party supplier
Product details

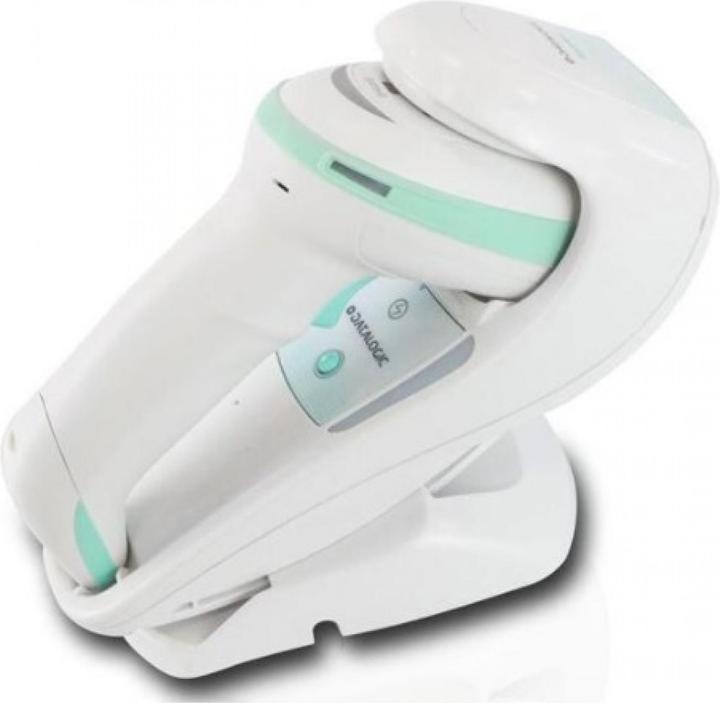

Short Info: Datalogic Gryphon I GBT4500-HC - Kit - portable barcode scanner with 2D imager and Bluetooth 4.0.
Product Description: The Datalogic Gryphon I GBT4500-HC is a portable barcode scanner that supports and decodes Bluetooth 4.0. The colors are light gray and light green.
Minimum barcode symbol width: 4 mil.
Scan element type: 2D imager.
Sensor resolution: 1280 x 800.
Connection technology: wireless.
Battery: 1 x lithium-ion.
Dimensions (Width x Depth x Height): 6.8 cm x 16.6 cm x 10.9 cm.
Weight: 235 g.
General Details:
- Type: portable barcode scanner
- Color: light gray, light green
- Barcode interfaces: Bluetooth 4.0
- Minimum barcode symbol width: 4 mil
- Scan element type: 2D imager
- Sensor resolution: 1280 x 800
- Light source wavelength: 650 nm
- Scan mode: Single Pass
- Skew (degrees): 65
- Pitch (degrees): 65
- Print Contrast Signal (PCS): 15%
- Decoding function: supports various codes such as Code 39, GS1 DataBar, QR Code, EAN/JAN-13, UPC-A, Data Matrix, and many more.
- Success notification: beep, LED indicator
- Network: wireless via Bluetooth 4.0 LE
- Expansion/Connectivity: 1 x USB
- Included cables: 1 x USB cable
- Certification: Bluetooth Class 2, RoHS, IP52
Power Supply:
- Charging station for the barcode scanner
- Battery: 1 x lithium-ion
Environmental Conditions:
- Minimum operating temperature: 0 °C
- Maximum operating temperature: 50 °C
- Allowed humidity during operation: 0 - 95 % (non-condensing)
- Drop height: 1.8 m over concrete floor.
Scanner type | Hand-held scanner |
Connections | USB |
Signal transmission | Bluetooth, Radio, Wireless |
Item number | 18196721 |
Manufacturer | Datalogic |
Category | Barcode scanners |
Manufacturer no. | GBT4500-HC-BTK1 |
Release date | 29.12.2021 |
External links |
Colour | Grey |
Exact colour description | Light green, Light grey |
Scanner type | Hand-held scanner |
Barcode Scanner Version | Scanner USB Kit |
Scanning method | Imagers |
Connections | USB |
Signal transmission | Bluetooth, Radio, Wireless |
Protection type (IP code) | IP52 |
Max. Drop height | 1.80 m |
Scanner functions | 1D barcodes, 2D barcodes |
Minimum print contrast | 15 % |
Stack codes | Aztec Code, Data matrix, GS1 DataBar Expanded Stacked, GS1 DataBar Stacked Omnidirectional, MaxiCode, Micro QR Code, MicroPDF417, QR code |
Read angle lengthwise max. | 65° |
Read angle cross max. | 65° |
Image resolution | 1280 x 800 pixels |
Display functions | Tiltable |
Wireless transmission | Bluetooth |
Max. range | 100 m |
Frequency | 2400 MHz |
Battery type | Li-ion |
Battery life | 4 h |
Charging time | 4 h |
Capacity | 3250 mAh |
Voltage | 12 V |
Country of origin | Vietnam |
CO₂-Emission | |
Climate contribution |
Scope of delivery | 1 x USB cable |
Length | 68 mm |
Width | 109 mm |
Height | 166 mm |
Weight | 235 g |
Length | 27.40 cm |
Width | 17.60 cm |
Height | 12 cm |
Weight | 961 g |
