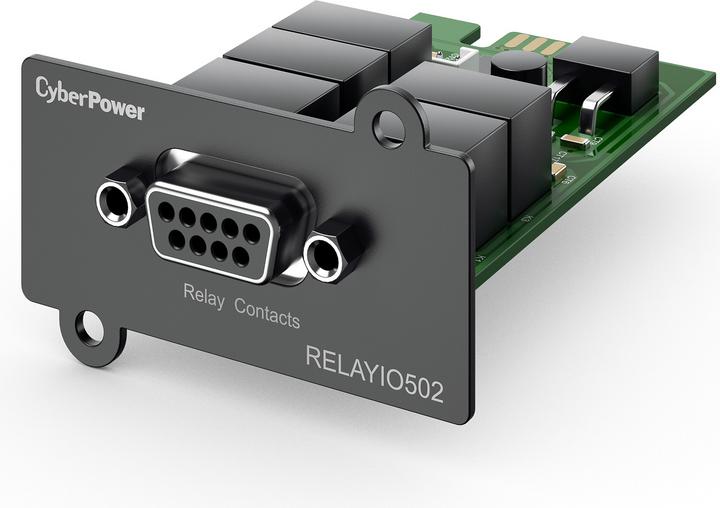

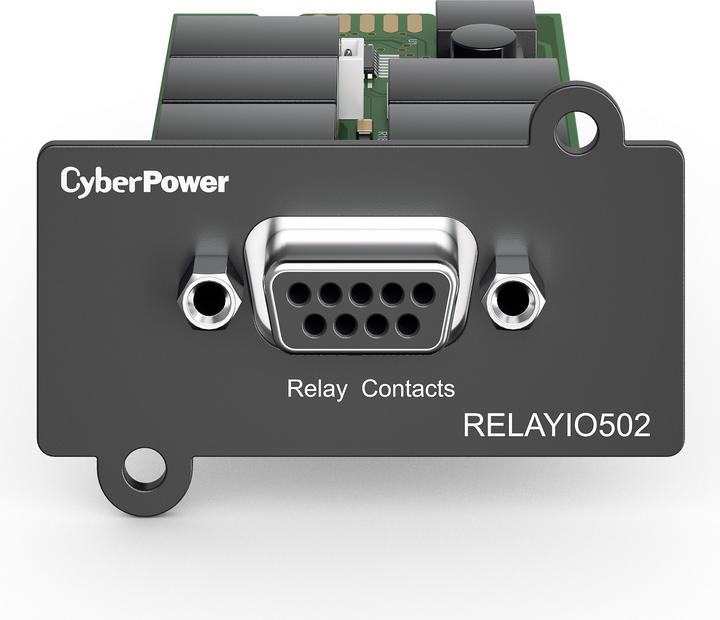

Cyberpower RELAYIO502 Relay Control Card, potential-free relay contact, terminal connection, for PR/O

The CyberPower RELAYIO502 is an option for advanced management of certain CyberPower UPS models. Once the card is inserted into the UPS's expansion port, it can send alerts in the event of power supply issues, including UPS failures, overloads, and overheating. Additionally, the card provides a dedicated input contact for externally shutting down the UPS in battery mode. The card features a contact interface and can turn devices on and off, for example, to trigger emergency alarms or to control output lights, generators, and more. Thanks to its hot-swap design, the UPS can remain powered on during the installation of this product.

Features:

• Dry relay contact
• UPS status monitoring
• RoHS compliant
• Serial communication port
• Plug-and-play installation

What's included:

• RELAYIO502
• User manual

General:

• Power loss (Watt): 1.35
• Connection: DB9
• Supports plug-and-play installation: Yes

Management and Communication:

• Shut down UPS: Yes
• Dry relay contacts (pieces): 5

Physical:

• Color: Black
• Dimensions (WxHxD) (in.): 2.1 x 1.4 x 3.2
• Dimensions (WxHxD) (mm): 54 x 36.1 x 80.7
• Weight (lbs): 0.11
• Weight (g): 52

Shipping dimensions:

• Dimensions (WxHxD) (in.): 6.6 x 2.3 x 6.4
• Dimensions (WxHxD) (mm): 168 x 58 x 162
• Weight (lbs): 0.35
• Weight (g): 160

Environment:

• Operating temperature (°F): 32 ~ 104
• Operating temperature (°C): 0 ~ 40
• Relative humidity (non-condensing) (%): 0 ~ 95
• Operating altitude (Feet/Meters): 0-3,000 meters
• Storage temperature (°F): 5 ~ 113
• Storage temperature (°C): -15 ~ 45
• Storage relative humidity (non-condensing) (%): 0 ~ 95
• Storage altitude (Feet/Meters): 0-15,000 meters

Certifications:

• RoHS: Yes.
