Crouzet Solid state relay

Ratings
BrandMore from Crouzet
Delivered between Sat, 25.4. and Sat, 9.5.
Only 3 pieces in stock at supplier
free shipping

input voltage3

Product details

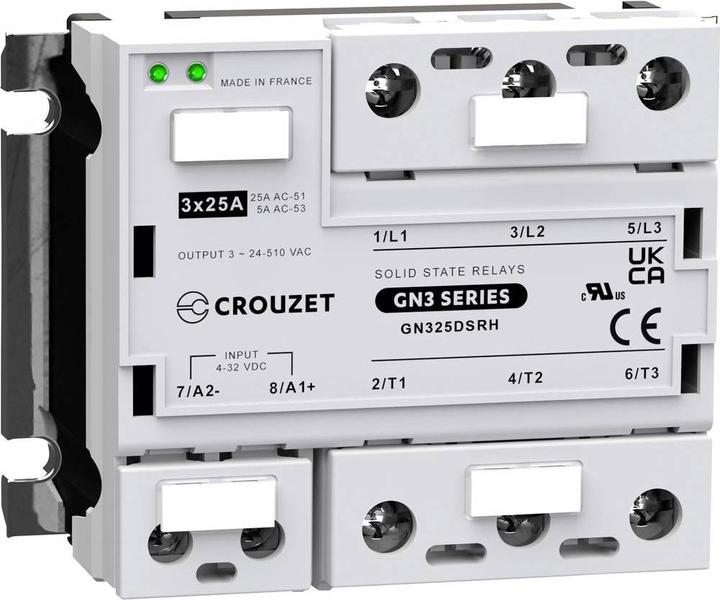

Crouzet solid state relay GN325DSRH 25 A switching voltage (max.): 510 V/AC random switching 1 pc. Technical data: Connection (components): blade terminal 6.3 mm, blade terminal 4.8 mm - load current (max.): 25 A - product type: solid state relay - product dimension, width: 76.5 mm - product dimension, height: 34.7 mm - product dimension, length: 100 mm - RoHS compliant: yes - switching voltage (max.): 510 V/AC - switching voltage (min.): 24 V/DC - switching type (relay): random switching - control voltage (max.): 32 V/DC - control voltage (min.): 4 V/DC - control voltage range: 4 - 32 V/DC - temperature (max.): +80 °C - temperature (min.): -40 °C - type (manufacturer type): SSR GN3 - other technical data: panel mounting, three-phase.

Key specifications

Relay type
Switching relay
input voltage
4 V
Output voltage
510 V
Electric current output
25 A
Output current type
AC

General information

Item number
21113030
Manufacturer
Crouzet
Category
Relays
Manufacturer no.
GN325DSRH
Release date
9.6.2022

Relay properties

Relay type
Switching relay
input voltage
4 V
Output voltage
510 V
Electric current output
25 A
Output current type
AC
Switching function
Normally open

Smart home features

Smart home
Not compatible

Voluntary climate contribution

CO₂ emissions
29.26 kg
Climate contribution
CHF 0.70

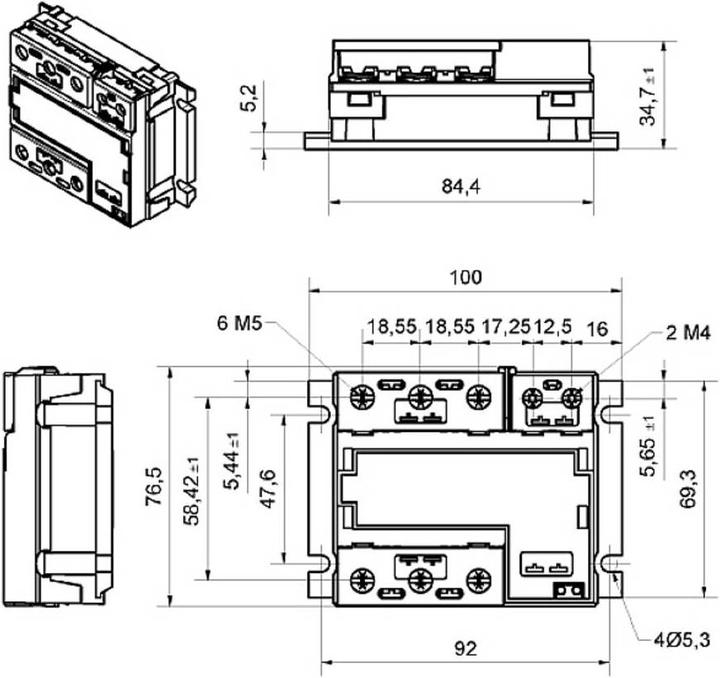

Product dimensions

Length
100 mm
Width
76.50 mm
Height
34.70 mm

30-day right of return
24 Months Warranty (Bring-in)
