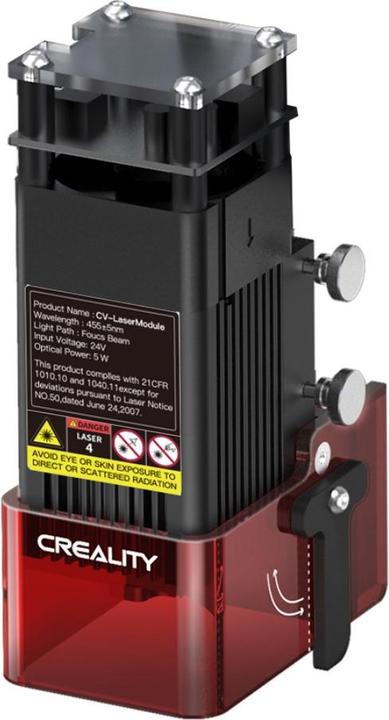

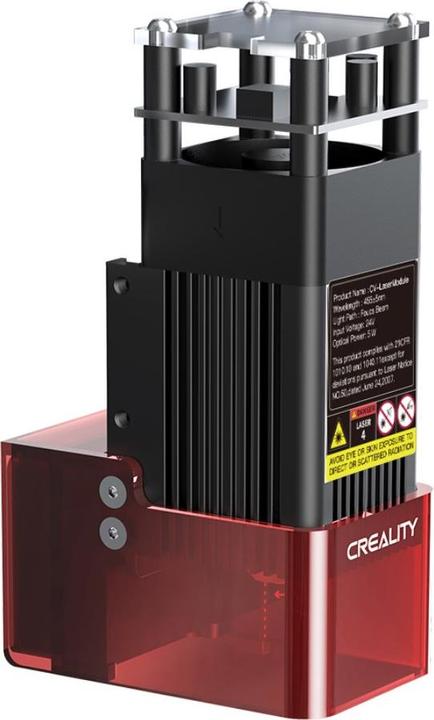

Creality CV Laser Module Kit 24V 5W

This is a 5W semiconductor laser for the Ender-3 S1 and Ender-3 S1 Pro. With the CV module laser, you can engrave various materials such as wood, leather, textiles, or plastic. The laser is mounted on the extruder suspension using a mounting plate. The mainboard of the Ender-3 S1 already has an interface for the laser module. Only the CV laser firmware needs to be installed. For more information, please refer to the documentation.

Caution: This is a Class 4 laser. Avoid eye and skin contact, always wear the provided safety glasses, and ensure that no one unprepared is in the same room. Extra caution and supervision are necessary when working with flammable materials such as wood and cardboard.

Features:

• 5W laser diode (semiconductor laser)
• For engraving non-metal materials
• Compatible with Ender-3 S1 and Ender-3 S1 Pro
• Easy installation directly on the extruder suspension
• Activated carbon filter
• Simple height adjustment

Technical Details:

• Manufacturer: Creality
• Manufacturer SKU: 4001100016
• Model: CV-LaserModule 5W
• Voltage: DC 24V
• Laser: Laser diode (semiconductor laser)
• Power: 5W
• Wavelength: 450nm
• Control signal: PWM
• Safety class: FDA Class 4
• Operating temperature: 0°C - 40°C
• Dimensions: 130 x 70 x 50 mm
• Weight: 685 g

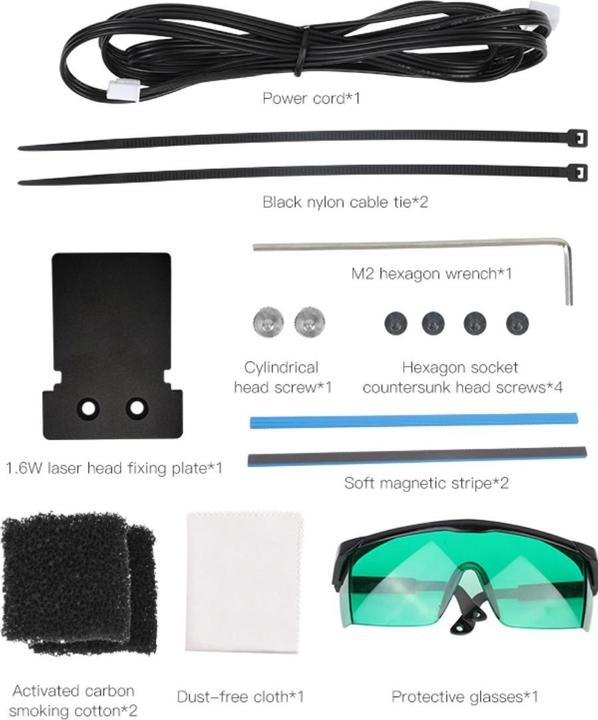

Delivery Contents:

• 1x Creality CV laser module
• 2x activated carbon filters
• 1x safety glasses
• 1x power cable
• 2x cable ties
• 1x M2 hex key
• 1x mounting plate
• 2x magnetic mounting rails
• 2x wood plates 150 x 150 mm
• 2x paper 150 x 150 mm
• 7x colored cardboard 150 x 150 mm
• 7x colored felt 150 x 150 mm
• 1x screw set
• 1x user manual.
