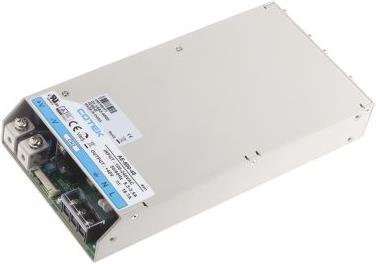

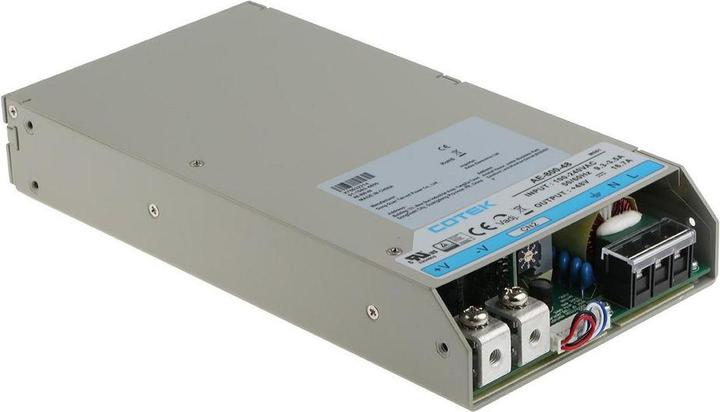

Cotek Power Supply Switch Mode 48V 16.7A 801W

Output voltage: 48V DC
Output current: 16.7A
Rated power: 801.6W
Input voltage: 127 to 370V DC, 90 to 264V AC
Mounting type: Rack mount
Enclosure type: Closed
Length: 127mm
Width: 41mm
Depth: 249mm
Hum and noise voltage: 480mV SS
Load regulation: ±1%
Mains regulation: ±1%
Temperature min: -20°C
Temperature max: +60°C
Efficiency: 92%

This is an 800W switching power supply with programmable output from the AE-800 series. The Cotek AE-800 series consists of single output AC/DC converters. These switching power supplies feature fully enclosed packages with integrated fans, a compact design, and high reliability, making them an excellent choice for chassis mounting in tight spaces. This power supply is ideal for applications such as factory automation, field testing, and measurement and communication equipment. Approvals and EMC fully meet worldwide requirements.

It offers universal power input with regulated single outputs of 12V, 15V, 24V, 30V, 36V, 48V, and 60V. There is a selectable auxiliary output of +5V at 0.5A or +9V at 0.3A. It includes global control via RS232 and multiple remote programming settings via RS232, RS485, and I2C. The output voltage and current are programmable from 0% to 105%. Features include remote on/off and remote sense, with high efficiency, high reliability, and long life, operating at temperatures from -20°C to +60°C. The JST connector is included.
