Output voltage = 5V dc
Input voltage = 200 → 400 V dc
Nominal input voltage = 280 V dc
Isolation voltage = 500 V dc, 3000 V ac
Rated power = 50W
Output current = 10A
Mounting type = printed circuit board
Input voltage = 200 → 400 V dc
Nominal input voltage = 280 V dc
Isolation voltage = 500 V dc, 3000 V ac
Rated power = 50W
Output current = 10A
Mounting type = printed circuit board
mounting
Number of outputs = 1
Efficiency = 79%
Temperature min = -20°C
Temperature max = +95°C
Load regulation = 150mV
Mains regulation = 10mV
Maximum input current = 220mA

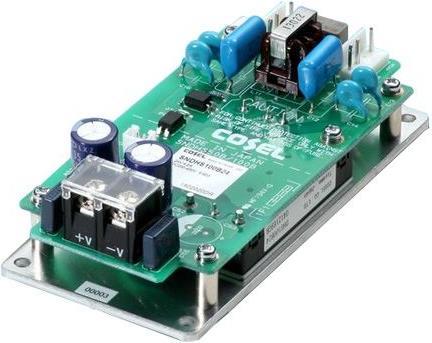

SNDHS Series. The SNDHS series of isolated DC/DC converters are very compact and are ideal for space-constrained applications. They offer a high range of power ratings and output voltages, making them extremely versatile. Additional features include remote sensing, remote on/off and alarm. The units also offer overcurrent and overvoltage protection. 3-year warranty. Features and Benefits. Compact DC/DC converter, SNDHS series includes DHS series High efficiency Integrated overcurrent, overvoltage and overtemperature protection circuits Integrated remote on/off (secondary and optional) Contact cooling (for example: Heat radiation from aluminum base plate to connected heat sink) AC/DC converter can be replaced by SNDPG series (SNDHS50B/SNDHS100B/SNDHS250B only).
Number of outputs = 1
Efficiency = 79%
Temperature min = -20°C
Temperature max = +95°C
Load regulation = 150mV
Mains regulation = 10mV
Maximum input current = 220mA
SNDHS Series. The SNDHS series of isolated DC/DC converters are very compact and are ideal for space-constrained applications. They offer a high range of power ratings and output voltages, making them extremely versatile. Additional features include remote sensing, remote on/off and alarm. The units also offer overcurrent and overvoltage protection. 3-year warranty. Features and Benefits. Compact DC/DC converter, SNDHS series includes DHS series High efficiency Integrated overcurrent, overvoltage and overtemperature protection circuits Integrated remote on/off (secondary and optional) Contact cooling (for example: Heat radiation from aluminum base plate to connected heat sink) AC/DC converter can be replaced by SNDPG series (SNDHS50B/SNDHS100B/SNDHS250B only).
| Item number | 10279462 |
| Manufacturer | |
| Category | |
| Manufacturer no. | SNDHS50B05 |
| Release date | 12/27/2018 |
| Width | 7 cm |
| Height | 4 cm |
| Weight | 225 g |
Specifications may include unverified machine translations.
