Corsair Hydro X Series XG7 RGB 20-Series

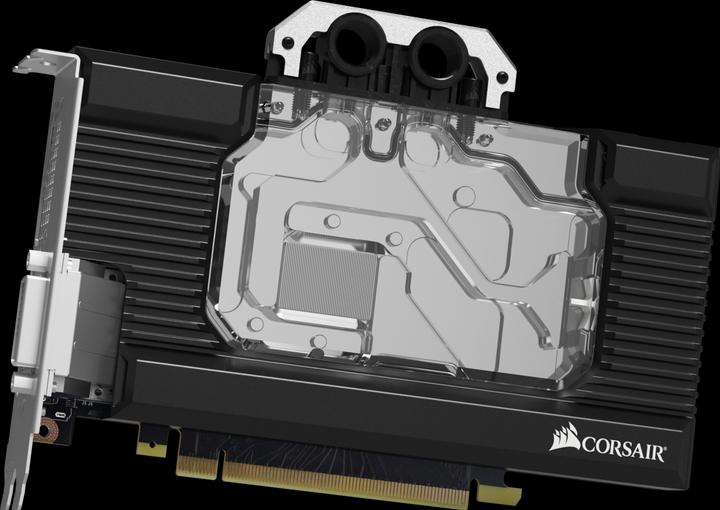

The Corsair XG7 RGB 20-Series GPU water block is a high-quality and powerful cooler designed for custom water cooling systems, compatible with the reference PCB of NVIDIA GeForce RTX 2070 graphics cards. Thanks to its optimized channel structure with micro-channels and a nickel-plated copper block, efficient cooling of the GPU, memory, and voltage regulators is guaranteed. The cooler features a transparent acrylic glass top with digitally addressable RGB lighting, providing a unique and elegant appearance.

This is a full-block design that covers all relevant heat sources of the graphics card, effectively cooling the GPU, memory, and voltage regulators. Nickel-plated copper and an optimized channel structure are used to transfer heat optimally.

The top is made of transparent acrylic glass in the center, with chrome-plated aluminum on the sides. The connection terminal has four holes (G1/4-inch threads). The flat design of the cooler also allows for easy connection of multiple graphics cards in an SLI/NVLink configuration. The entire cooler, along with the graphics card PCB, is enclosed in an aluminum housing, with only the transparent top visible. The full-cover design provides significant stability to the setup, eliminating the need for a backplate.

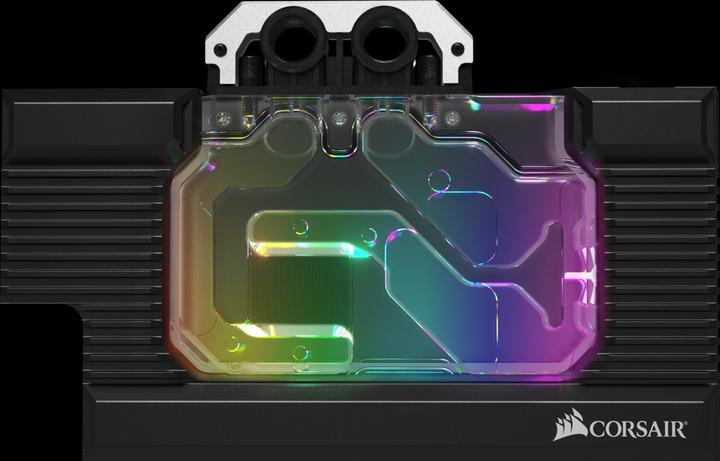

The digitally addressable RGB LED lighting is equipped with the same RGB connectors used in other Corsair products and can be controlled via RGB LED controllers. The RGB lighting features two cables that allow for a daisy-chain setup. A flow indicator visible through the transparent window shows whether and in which direction the coolant is flowing. Thermal pads and paste are already applied to the cooling block.
