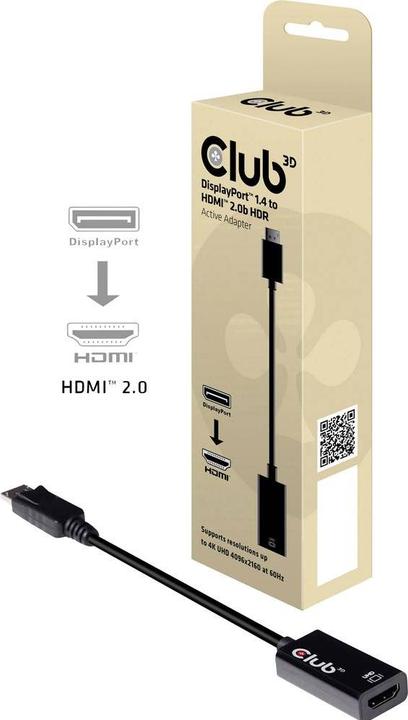

Club 3D DP 1.4 to
0.18 m, DisplayPort, 2.0Free shipping starting at 50.–
The DisplayPort receiver supports up to 5.4 Gbps per lane over 4 lanes. The HDMI output is fully compatible with the HDMI specification version 2.0b. The CAC-1080 is backward compatible with earlier DisplayPort and HDMI versions, but this may affect functionality and/or supported features such as HDR. The CAC-1080 supports UHD resolutions up to 4096 x 2160p at 60Hz.
It supports RGB / YCbCr video formats with a color depth of 16 Bpc (or 48 bits per pixel), as long as it fits within the DisplayPort and HDMI bandwidth. The CAC-1080 also supports pixel encoding of RGB or YCbCr 4:4:4 to YCbCr 4:2:0 and YCbCr 4:2:0 pass-through functions. Additionally, HDR with Deep Color up to 12 bpc at 4K 60Hz is supported through the conversion of RGB / YCbCr 4:4:4 over DisplayPort link to YCbCr 4:2:0 at the HDMI output with horizontal extension to CEA timings.
Video cable type | DisplayPort cable |
Cable connection | Connection (m/m) |
Connection A | DisplayPort |
Connection B | HDMI |
Length | 0.18 m |
Documents | |
Item number | 7026170 |
Manufacturer | Club 3D |
Category | Video cables |
Manufacturer no. | CAC-1080 |
Release date | 7.12.2017 |
Sales rank in Category Video cables | 417 of 11965 |
External links |
Cable colour | Black |
Material | Copper |
Video cable type | DisplayPort cable |
Cable version | Display port 1.4 |
HDMI cable type | HDMI high speed |
HDMI version | 2.0 |
Type | Adapter |
Cable design | Active adapter |
Cable connection | Connection (m/m) |
Maximum image quality | 4K |
Max. Video resolution | 4096 x 2160 pixels |
Max. video resolution standard | 4K |
Maximum frame rate | 50 Hz |
Inner conductor Material | Copper |
Cable Application | Monitor |
Shielding | Partial shielding |
American Wire Gauge (AWG) | 32 |
Max. data transfer rate | 18 Gbit/s |
Converter type | Active |
Connection A | DisplayPort |
Connection B | HDMI |
Color Connections | Black |
Country of origin | China |
CO₂-Emission | |
Climate contribution |
Items per sales unit | 1 Piece |
Length | 0.18 m |
Width | 20 mm |
Depth | 184 mm |
Weight | 32 g |
Length | 27 cm |
Width | 6 cm |
Height | 4 cm |
Weight | 52 g |
