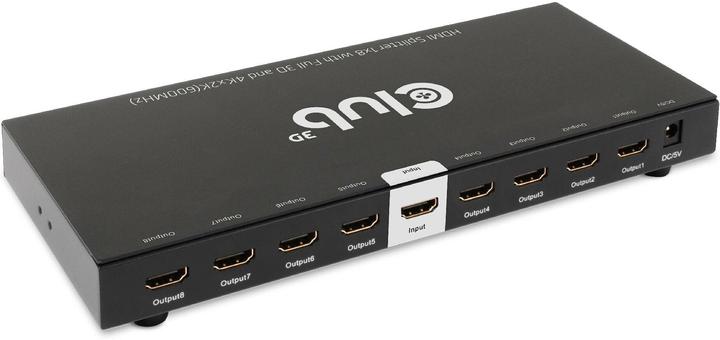

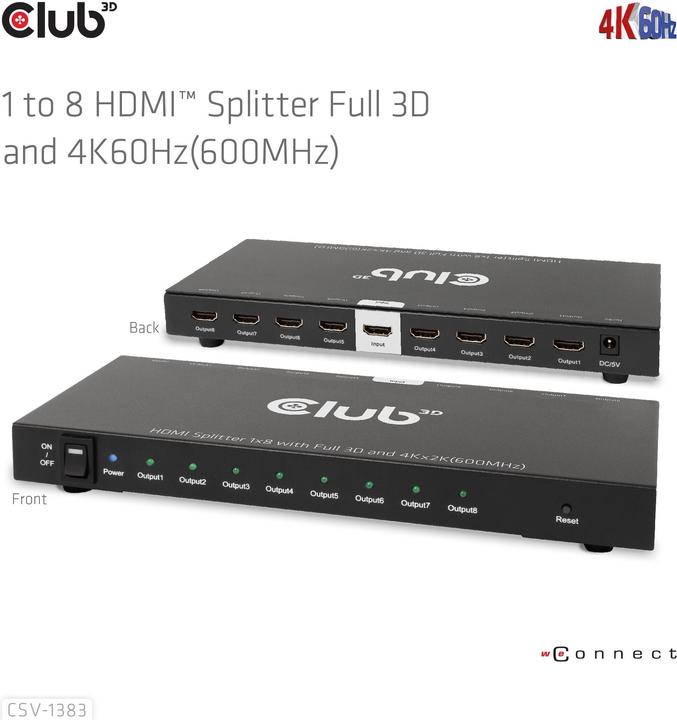

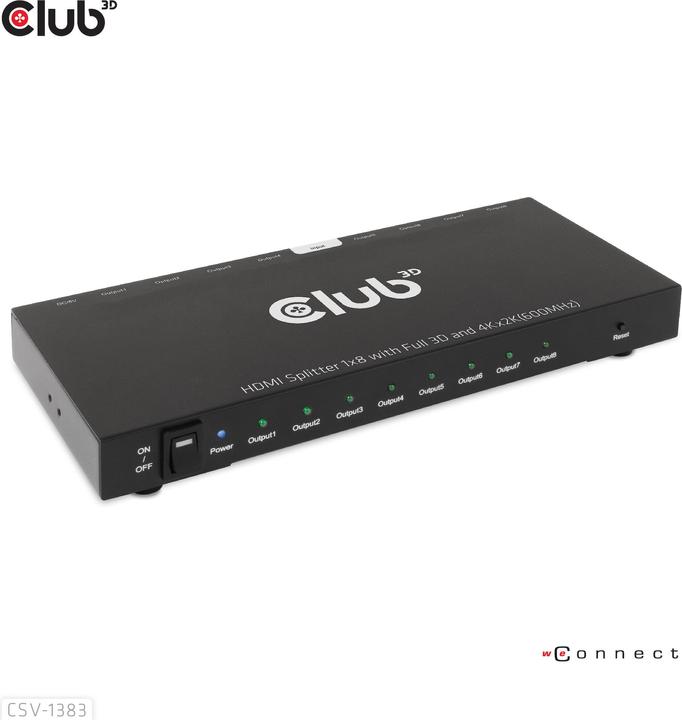

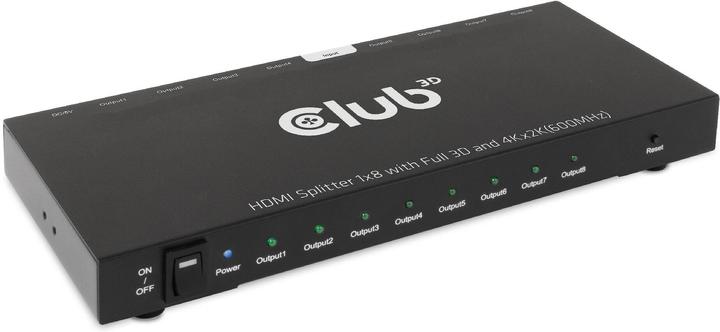

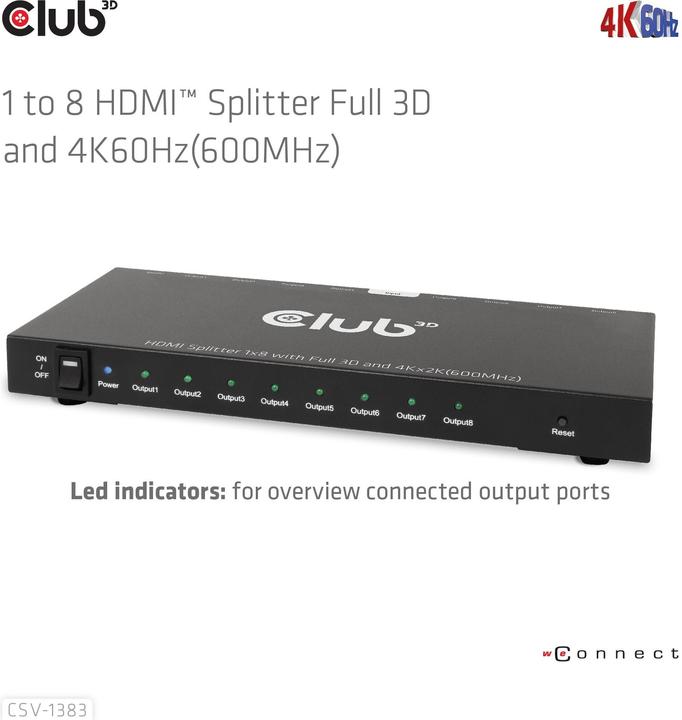

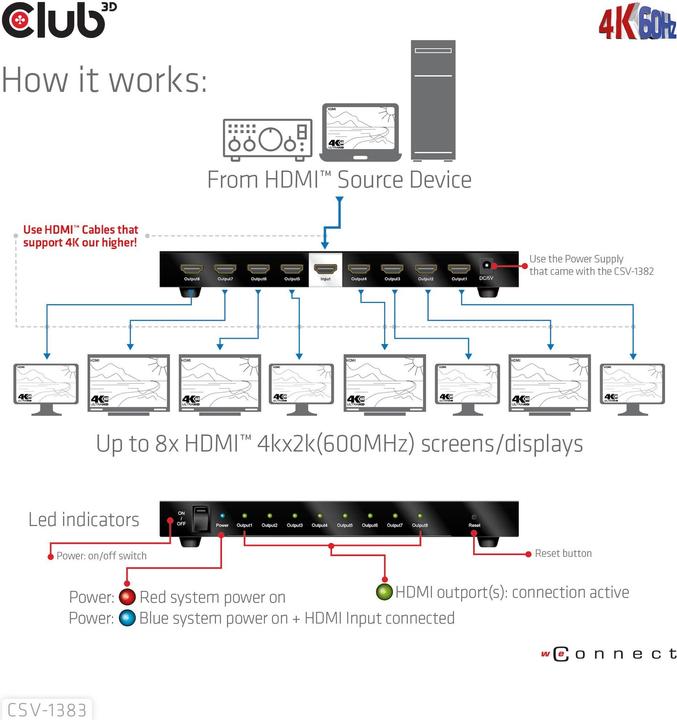

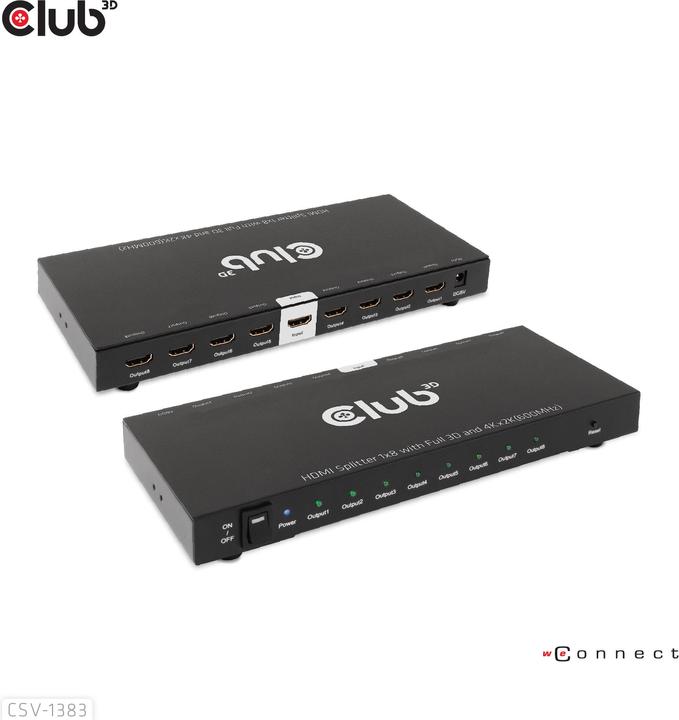

The Club 3D CSV-1383 is a powerful and compact 1 to 8 HDMI™ Ultra High Definition splitter with hot-plug capability and a metal housing. It distributes the input HDMI™ signal to eight identical outputs simultaneously. It provides robust audio and video output via HDMI™ cables with a resolution of up to 4K@60Hz and is capable of receiving and transmitting bandwidths of up to 6Gbps/600MHz. This splitter simply divides the input signal into 8 output connections based on the specifications of the input signal.
This is a powerful and compact HDMI™ splitter housed in a metal casing with an external power supply of 100-240VAC / 5V-3A DC and a maximum power consumption of 11.3 watts. It is an ideal helper at home and in the workplace.

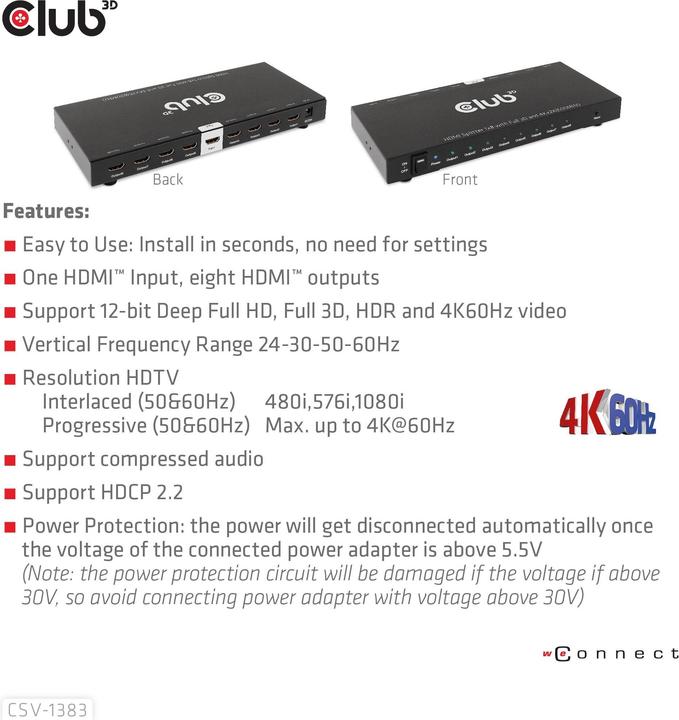

Features:
• Easy to use: Installation in seconds, no settings required

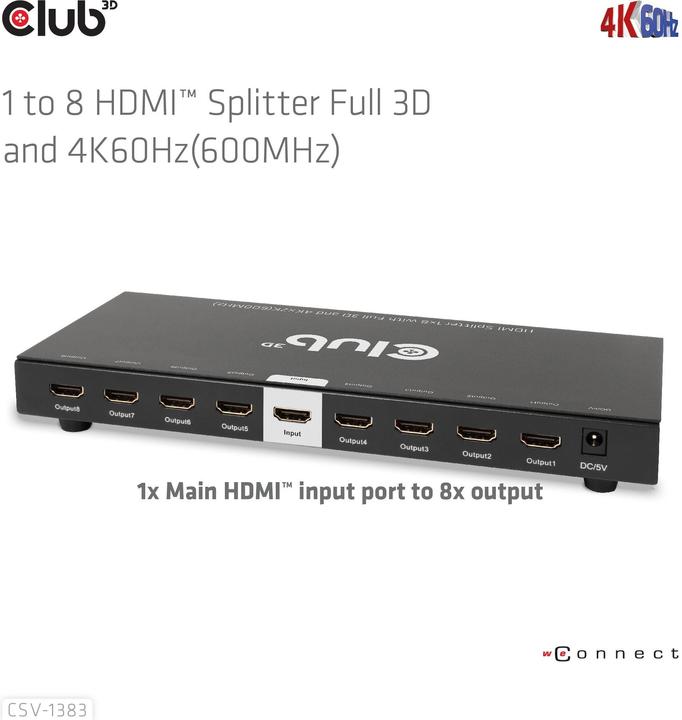

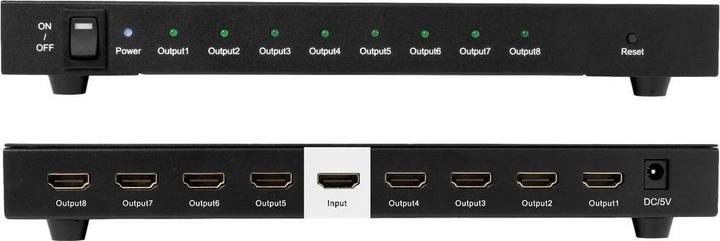

• One HDMI™ input, eight HDMI™ outputs
• Supports 12-bit Deep Full HD, Full 3D, HDR and 4K60Hz video
• Vertical frequency range 24-30-50-60Hz
• HDTV resolution
• Interlaced (50&60Hz) 480i, 576i, 1080i
• Progressive (50&60Hz) Max. up to 4K@60Hz
• Supports compressed audio
• Supports HDCP 2.2
• Power protection: Power is automatically turned off when the voltage of the connected power supply exceeds 5.5 V (Note: The power protection will be damaged if the voltage exceeds 30 V, so avoid connecting a power supply with a voltage over 30 V).
Switch Box Type | HDMI splitter |
Connectable devices (input) | 1 |
Connectable devices (output) | 8 |
Main device port | HDMI |
Video connections | HDMI (8x) |
Audio Connections | HDMI (8x) |
Item number | 38723165 |
Manufacturer | Club 3D |
Category | Switch box |
Manufacturer no. | CSV-1383 |
Release date | 7.11.2023 |
Connectable devices (input) | 1 |
Switch Box Type | HDMI splitter |
Connectable devices (output) | 8 |
Max. picture resolution | 3840 x 2160 pixels |
HDMI version | 2.2 |
Max. data transfer rate | 750 MB/s |
Refresh rate | 60 Hz |
Main device port | HDMI |
Video connections | HDMI (8x) |
Audio Connections | HDMI (8x) |
Country of origin | China |
CO₂-Emission | |
Climate contribution |

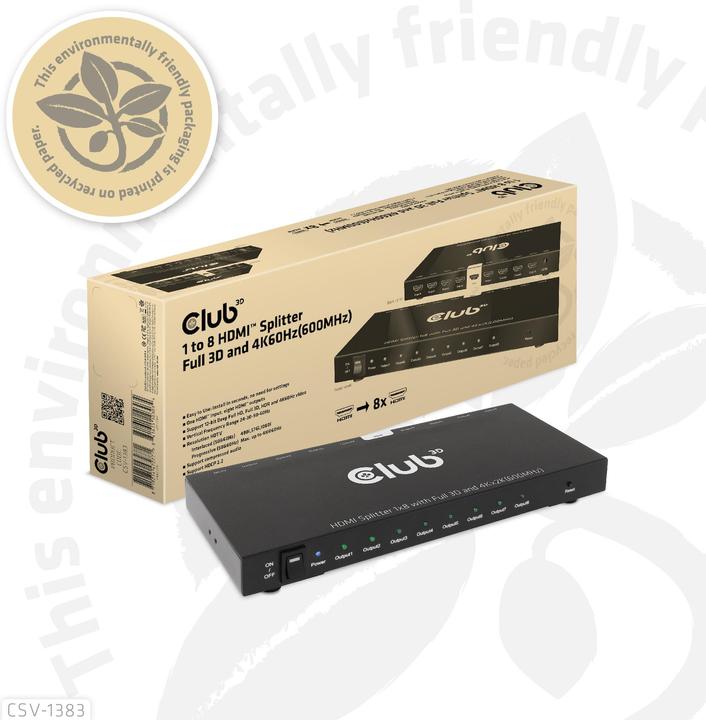

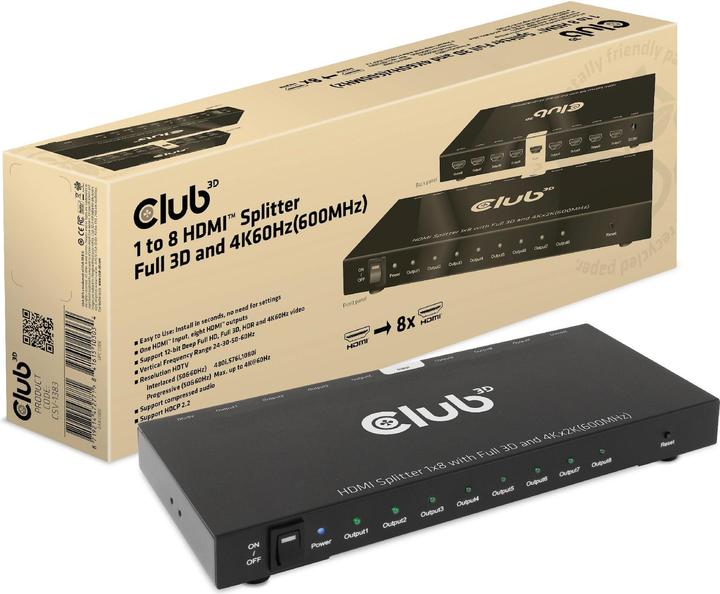

Scope of delivery | 1 x power supply, 1x HDMI splitter |

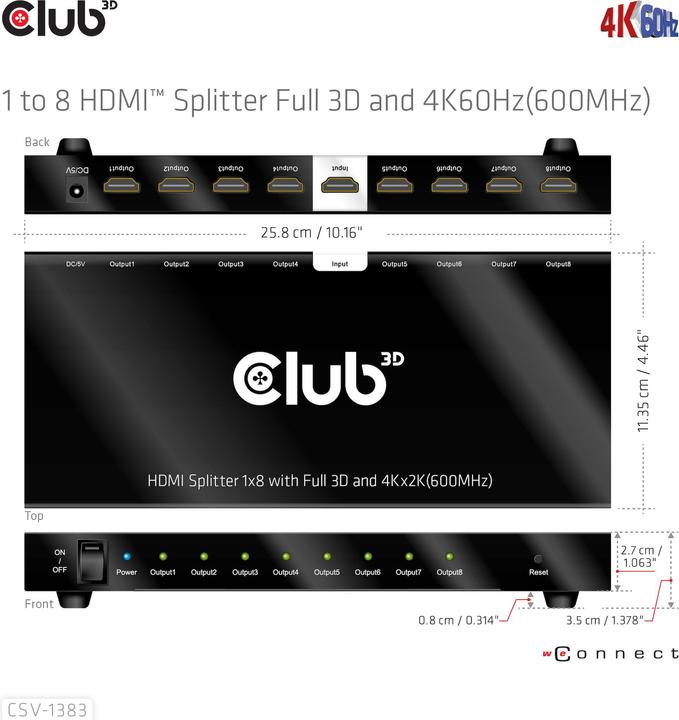

Length | 11.30 cm |
Width | 25.80 cm |
Height | 3.50 cm |
Weight | 1053 g |
