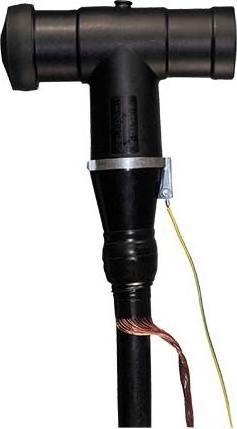

CellPack CTSS 630A 24KV 95240

Cellpack Sym.T-connector CTS-S 630A #347186

Manufacturer: Cellpack
Designation: Sym.T-connector 630A 24kV 1-wire
Type: CTS-S 630A #347186
Suitable for indoor use: Yes
Suitable for outdoor use: No
Rated voltage U0/U (Um): 12.7/22 (24) kV
Rated current according to EN 50180/EN 50181: C (630 A)
Type of connector: T-connector
Type of conductor connection: Screw connection
Suitable for number of cores: 1
Shielded: Yes
Supplied with cable lug: Yes
Rated cross-section: 95..240 mm²
Earthing cable length: 0.7 m
Width: 85 mm
Height: 250 mm
Length: 225 mm

Cellpack Sym.T-connector CTS-S 630A #347186 is a cable plug-in connector suitable for connecting all plastic-insulated single-core cables with different conductive layers as well as shielding designs to switchgear and transformers. It is designed for maximum mains voltage up to 36 kV with device plug-in connections for external cone systems type C according to EN 50180 and EN 50181.

Areas of application: Indoor.
Properties: With capacitive measuring point, unit-tested, safe to touch due to outer conductive layer made of conductive EPDM, sheath fault test of the cable possible in plugged-in condition, suitable for copper as well as aluminum conductors, quick, easy and safe installation, multi-range application due to integrated screw cable lug, suitable for measuring adapters with external cone system type C according to EN 50180 and EN 50181.

Scope of delivery: Silicone field control elements, earthing set, set of 3 cable connectors, small installation material, screw cable lugs for main conductor, installation instructions.
EAN: 4010311168807.
