Product details

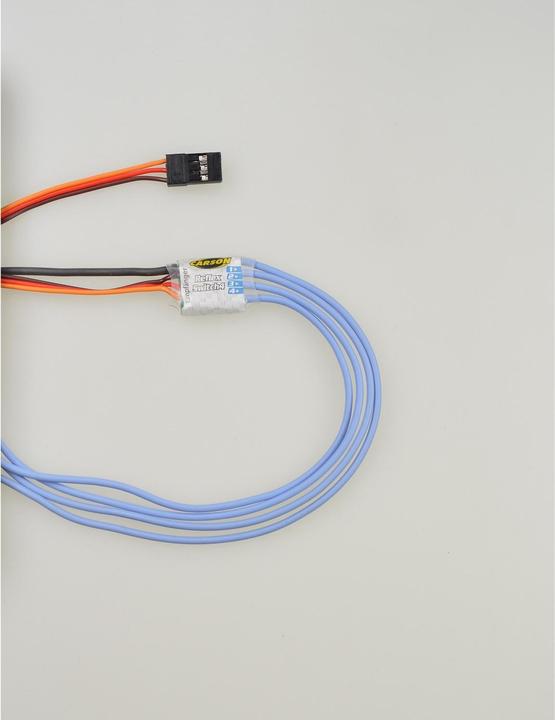

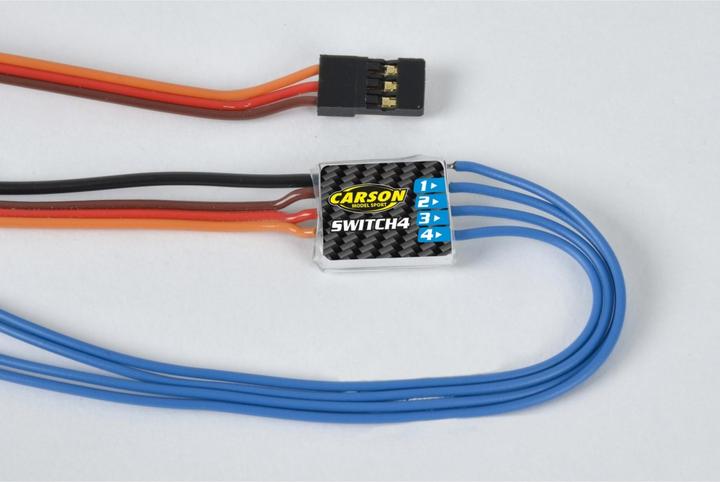

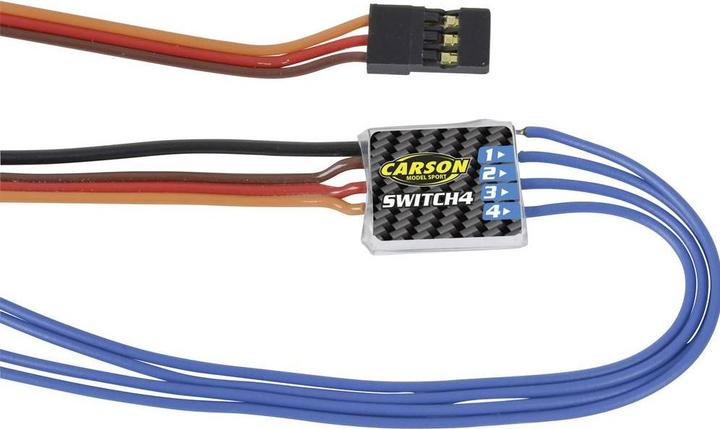

Art. No.: 500503061 Art. Description: Reflex 6/14Ch Switch 4 (4x2.5A) The switching modules are connected directly to your RC receiver and can be controlled via a button, switch, or joystick. The position of the switch/button (up and down) and the duration (short and long) are evaluated. For buttons and switches, it is important that they have a neutral position – so-called 3-position switches/buttons (On/Off/On). Each switching output has a memory function: this means it remains activated until the switch/button is returned to the neutral position. The switching module has four separate and negative-switching outputs available. Each output has a 200 mm long blue cable. This cable should be connected to the negative terminal of the consumer. Each switching output can switch a maximum current of 2.5 A. The maximum allowable supply voltage is 16 V/DC. The module powers itself through the servo cable. The black negative cable can be connected directly to the battery or to the optionally available distribution terminal. For high loads, the black cable should be connected via the distribution terminal or to the drive battery to avoid damage to the receiver. For easy wiring, we recommend: (It is advisable to tin the cable ends.) 500503062 CARSON Reflex Switch 2/4 Power Distributor.
