C2G Dual HDMI® HDBaseT 4K + VGA, 3.5 mm et RS232 sur boîtier d'extension émetteur de commutation Cat ver

The HDMI Ultra-Slim HDBaseT + RS232 and IR over Cat Extender Box Receiver - 4K 60Hz allows a 4K HDMI source to be extended up to 130 feet to a 4K display using a single Cat6a Ethernet cable. This is an ideal solution for extending HDMI video and audio to displays in conference rooms, classrooms, lecture halls, and other installations that exceed the length limitations of standard HDMI cabling.

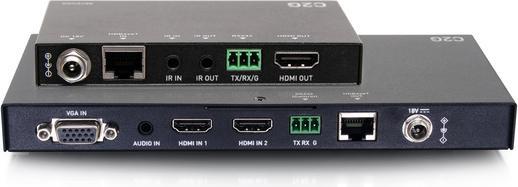

This wall plate transmitter and box receiver accept HDMI signals over a single network patch cable. Extend 4K HDMI up to 115 feet and 1080p up to 230 feet using a Cat5e or Cat6 cable. For longer 4K distances, extend 4K HDMI up to 130 feet using a Cat6a cable.

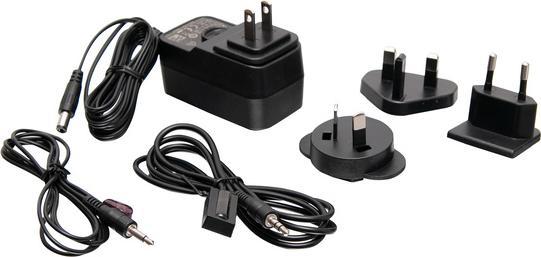

This HDMI HDBaseT set is HDCP 2.2 compliant, ensuring a secure connection from the source. With bi-directional PoC support, one power adapter at either the transmitter or receiver side can power both units, eliminating the need for an additional power adapter and allowing for greater flexibility in installations. Advanced users can control bi-directional IR and RS232 pass-through.

Note: Ensure a solid and reliable connection between the 4K HDMI HDBaseT Extender and critical equipment. It is suggested to use HDMI cables with gripping connectors that provide greater port retention than standard HDMI connectors.

Note: Stranded Cat5e/6/6a patch cables may be used for HDMI extension applications up to 230 feet. Shielded, solid conductor Cat6 or HDBaseT Certified Cat6a network cabling is recommended for applications where the category cable must be coiled, is run near other high-frequency signaling cables, or in high EMI/RFI environments. For best performance, use an HDBaseT Certified Cat6a patch cable.
