Busch-Jaeger UP timer 1071U 2-pole 120min

Busch-Jaeger Timer Module 1071 U

Manufacturer: Busch-Jaeger
Designation: Timer Module 120 min
Type: 1071 U
Composition: Base element
Number of contacts as switches: 2
Design: Mechanical
Time setting: 0 min
With semiconductor output: No
Mounting type: Other
Material: Other
Material quality: Other
Halogen-free: Yes
Surface protection: Untreated
Color: Other
Transparent: No
Suitable for protection class (IP): IP20
Nominal voltage: 250 V
Rated current: 16 A

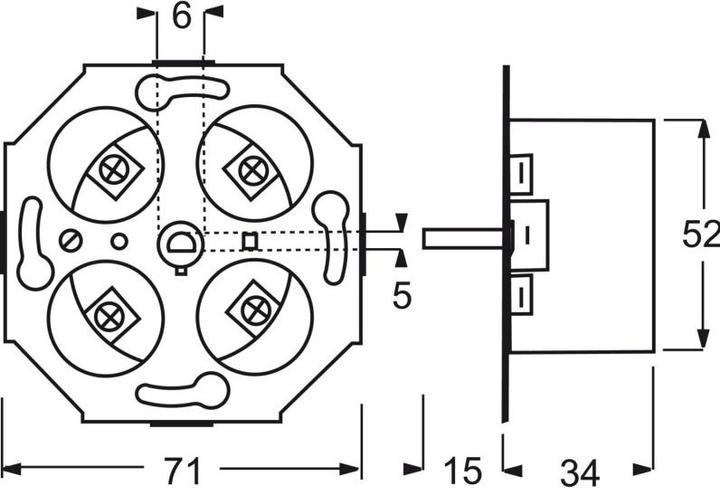

Min. depth of the device box: 32 mm
Compatible with Apple HomeKit: No
Compatible with Google Assistant: No
Compatible with Amazon Alexa: No
IFTTT support available: No

Busch-Jaeger Timer Module 1071 U: Additional details
Runtime: 120 min

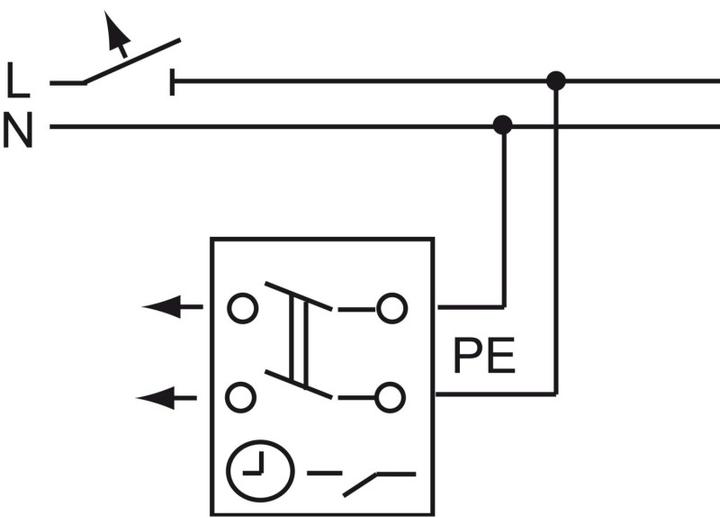

For time-controlled switching of electrical consumers. Mechanical operation (rotary operation). Screw terminals for connection wires. After the set time has elapsed, the closed contacts will reopen. Only install in conjunction with commercially available flush-mounted device boxes according to DIN 49073. No expansion option, only screw fastening on the flush-mounted box via keyholes.
