Bopla ENCLOSURE BOS 800 WITHOUT WINDOW IP 40

Housing material: ABS
External length: 209.3 mm
External width: 98 mm
External height: 34.8 mm
External dimensions: 209.3 x 98 x 34.8 mm
Built-in battery compartment: Yes
IP protection class: IP40
Color: Gray
Series: BOS-Streamline
Keyboard cutout: Yes

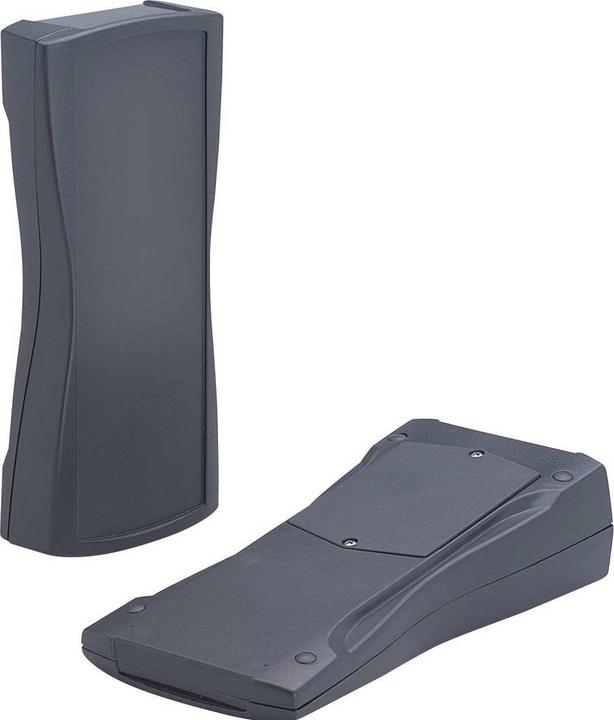

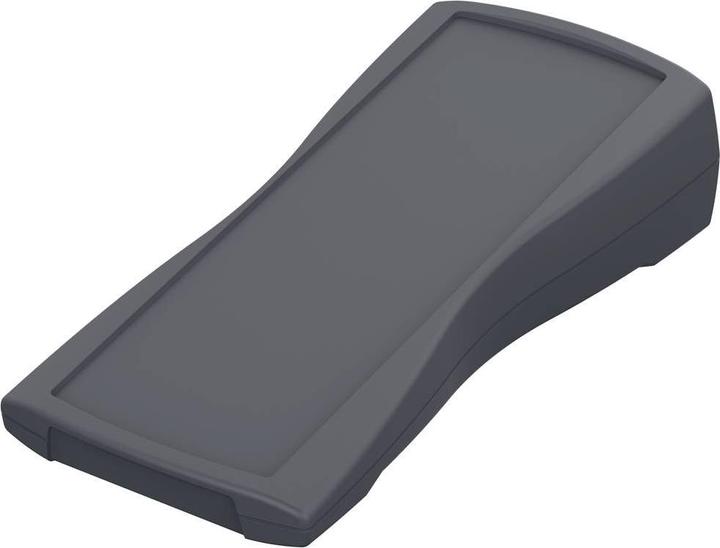

Order number: 770-9357. This model comes with a loop for a carrying strap and can be upgraded to protection class IP54 by using the decorative seal. The portable BOS Streamline housing made of ABS from Bopla is ideal for use in mobile data recording and processing. The differently angled design of the two halves allows the lid and base to be arranged either parallel or in a cantilever fashion. Due to its symmetrical design, the housing can be used both horizontally and vertically, depending on individual requirements. It features smooth areas on the front for customizing various interfaces, such as Sub-D connectors.

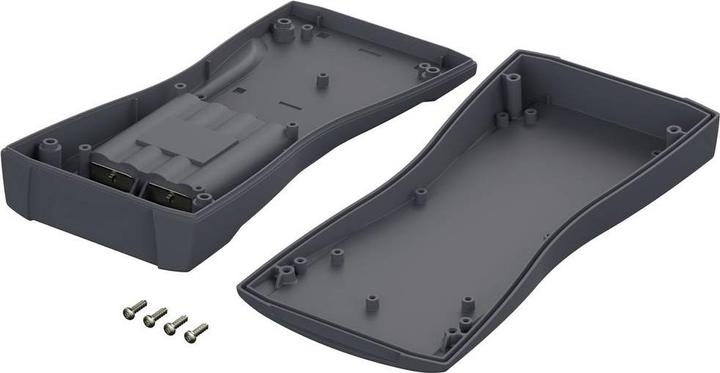

The flat or inclined design can be achieved by rotating the housing half. The decorative seal provides shock protection and is available separately in yellow, red, blue, green, and gray (TPE). These seals meet the IP65 protection class when used with a sealing cord for guaranteed sealing of the battery compartment. The housing is available with or without a battery compartment. Screw covers for the housing screws are available separately in light gray or graphite gray.

DIS variant: Ergonomic portable housing with a screen and a separate membrane keypad. The screen is unprinted and can be attached with an adhesive film (included), resulting in an IP65 protection class. F variant: Ergonomic portable housing with a continuous membrane keypad.
