Bluechip SERVERline R32314s 2HE Rack, AMD EPYC™ 4124P Prozessor / bis zu 5.10 GHz, B650, TPM-Modul, 32 GB DD
32 GB, Rack ServerProduct details

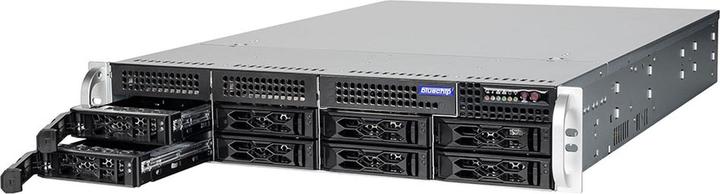

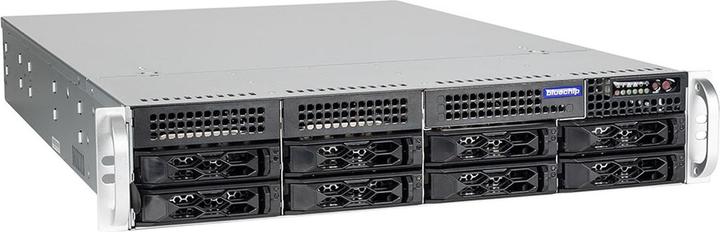

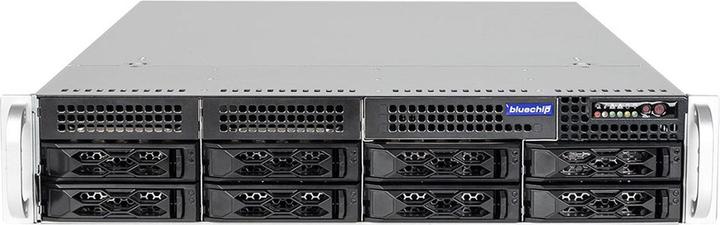

Bluechip SERVERline R32314s – Powerful Performance for Versatile Applications
The R32314s impresses as a 2U rack server with high computing power and flexible configurability. Thanks to the powerful 4th generation AMD EPYC processor and state-of-the-art DDR5 memory technology, it delivers maximum performance for demanding workloads.
With support for up to eight storage devices (2.5" and 3.5"), the system offers extensive storage options. The hot-swap capability allows for uninterrupted maintenance while the system is running. A redundant power supply with 80Plus Platinum certification ensures the highest energy efficiency and reliability.
Additionally, the server is equipped with a TPM module for enhanced security and can be flexibly configured according to individual requirements. For maximum investment security, we offer a 36-month warranty, with the option to extend to 48 or 60 months for an additional fee. An on-site service is also available for 36, 48, or 60 months (with up to 4 hours response time, 7 days a week).
Rack height units | 2 U |
Number of processors | 1x |
RAM | 32 GB |
Max. number of hard disks | 8 |
Item number | 57380554 |
Manufacturer | Bluechip |
Category | Servers |
Manufacturer no. | 850616 |
Release date | 3.4.2025 |
Design | Rack Server |
Rack height units | 2 U |
Number of processors | 1x |
Clock frequency | 3.80 GHz |
Number of processor cores | 4 -Core |
Max. turbo clock rate | 5.10 GHz |
L3 Cache | 16 MB |
Socket | AM5 |
Chipset | AMD B650 |
Memory type | DDR5 RAM |
Max. memory slots | 4 |
Memory configuration | 2 x 16GB |
RAM | 32 GB |
Max. RAM | 192 GB |
RAM speed | 5200 MHz |
RAM error correction | ECC |
RAID configuration | 0, 1, 10 |
Possible raid configuration | 0, 1, 10 |
Mass storage controller type | SATA III |
Data storage controller | Intel I210 |
Max. number of hard disks | 8 |
Storage capacity | 960 GB |
Form factor | 2.5", 3.5" |
Interface | SAS |
Interface version | SAS 2.0 |
Hard disk additional functions | Hot swapping |
Expansion slot | PCI Express x16 (2x) |
PCI express version (max.) | 5 |
USB ports | USB-A |
Exact USB ports | USB-A 3.2 Gen 2 (2x) |
Connectivity | Ethernet |
Network connections | RJ45 Gigabit Ethernet (2x) |
Ethernet controller | Intel I210 |
Ethernet controller brand | Intel |
Max. port speed | 1000 Mbit/s |
Graphics card model | AST2600 |
Graphics chip (GPU) | Aspeed |
Video connections | DisplayPort (1x), HDMI (1x), VGA (1x) |
Optical drive type | No drive |
Processor design | 64-bit |
Power | 650 W |
Max. number of power supply units | 2 |
Country of origin | China |
Length | 647 mm |
Width | 437 mm |
Height | 89 mm |
