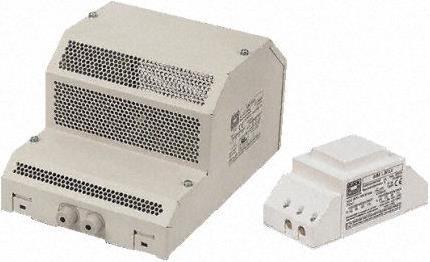

Block Autotransformer panel-mount 5 / 2.5A

Primary rated voltage: 115 V AC, 230 V AC
Secondary rated voltage: 20 V AC, 115 V AC, 220 V AC, 230 V AC
Construction type: Closed
Mounting type: Front panel mounting
Connection type: Screw
Length: 223 mm
Width: 97 mm
Depth: 117 mm
Operating frequency min: 50 Hz
Operating frequency max: 60 Hz
Temperature max: +40 °C
Secondary rated current: 2.5 A, 5.0 A

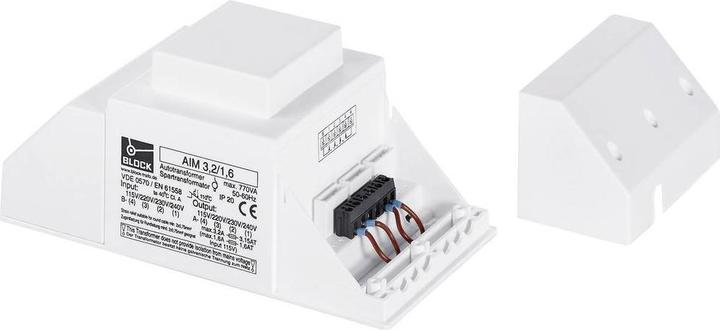

The mains connection of these units is not isolated. Enclosed step-up/step-down, AIM series. These short-circuit proof, self-wound and potted transformers from Block provide step-up and step-down regulation of line voltage at 50/60 Hz. They feature mounting holes for easy installation and screw terminal connections with strain relief for connecting cables, ensuring a rugged and reliable setup. Protection against thermal overload is provided by integrated fuse protection. Transformers are tested according to EN 61558, VDE 0570.
