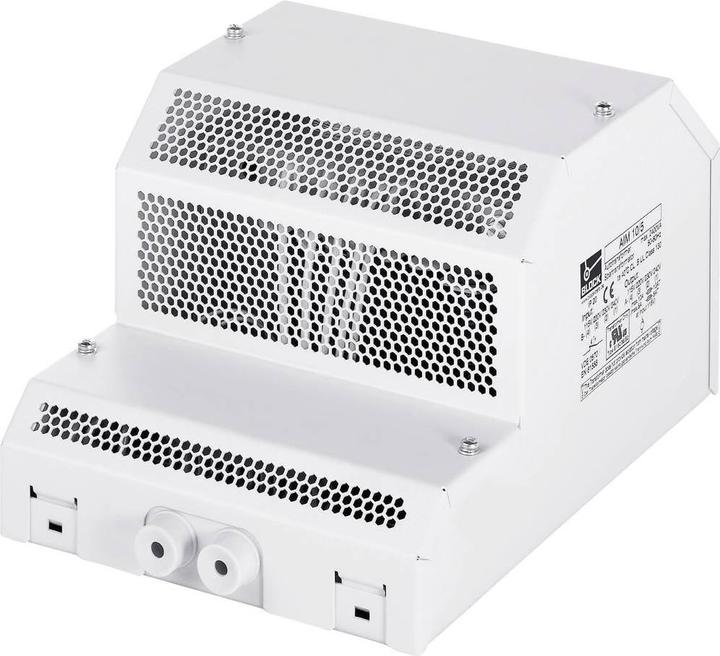

Block Autotransformer panel-mount 1.6 / 0.8A

Primary rated voltage: 115 V AC, 230 V AC
Secondary rated voltage: 115 V AC, 220 V AC, 230 V AC, 240 V AC
Construction type: Closed
Mounting type: Front panel mounting
Connection type: Screw
Length: 166 mm
Dimensions: 166 x 77 x 76 mm
Depth: 76 mm
Operating frequency min.: 50 Hz
Temperature min.: -20°C
Temperature max.: +40°C
Secondary rated current: 0.8 A, 1.6 A

The mains connection of these units is not isolated. Enclosed step-up/step-down, AIM series. These short-circuit proof, self-wound and potted transformers from Block provide step-up and step-down regulation of line voltage at 50/60 Hz. Features mounting holes for easy installation, screw terminal connections with strain relief for connecting cables, ensuring a rugged and reliable setup. Protection against thermal overload with integrated fuse protection; transformers tested according to EN 61558, VDE 0570.
