Blackmagic Videohub Smart Control Pro

Videohub Smart Control Pro

If you want to distribute signals in the fastest possible way, do it through a Videohub Smart Control Pro control panel with the press of a single button. Each button can be programmed to a specific coupling point, and signal distribution occurs at the touch of a button. You can program multiple destinations and even set up a take button. Power is supplied via the DC or Ethernet interface.

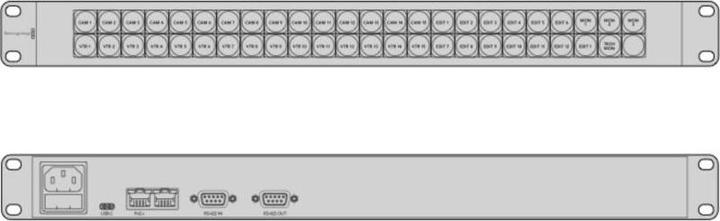

Connections:

• Ethernet: Inputs and outputs for RJ45 Ethernet. Support for PoE via Ethernet input, PoE on Ethernet output not available.
• RS-422: Input and output (to be implemented in the future).
• Computer Interface: USB-C for configuration and software updates.
• Power: 100–240 volts AC.

Macro Capability:
To activate multiple simultaneous switching commands, up to 10 macro buttons can be assigned.

Hardware Control:

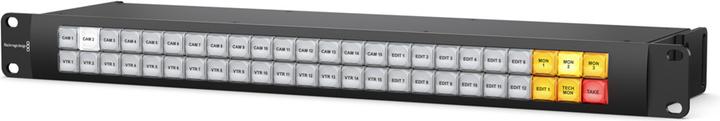

48 programmable buttons and RJ45 Ethernet connector for remote control of routers over an IP network.

Software:
The product software is updated via USB using the included firmware updater.

Physical Specifications:

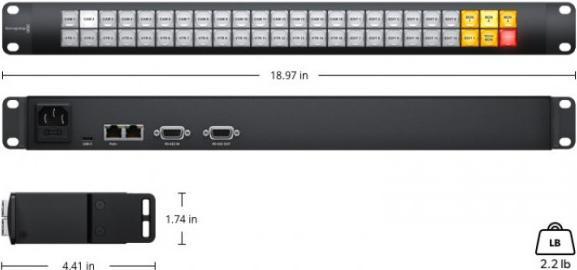

• Physical Installation: 1 rack unit height. Device depth under 7.62 cm.
• Button Configuration: Free included for Windows and Mac via USB 2.0 high-speed interface (480 Mbit/s).
• Power Requirements: Power failure protection. Button configurations and router coupling points are retained and immediately restored upon power return. Button configurations can be saved for later retrieval.

Environment:

• Storage Temperature: -20–45 °C.
• Relative Humidity: 0–90% non-condensing.

Included in the package:

• Videohub Smart Control Pro.
• Power Supply: 1 integrated AC power supply for 100–240 V.
