Blackmagic Smart Videohub CleanSwitch 12x12

Digital -> Digital
Ratings
Delivered between Tue, 24.6. and Wed, 25.6.
Only 1 item in stock at third-party supplier
Supplied by
free shipping

Product details

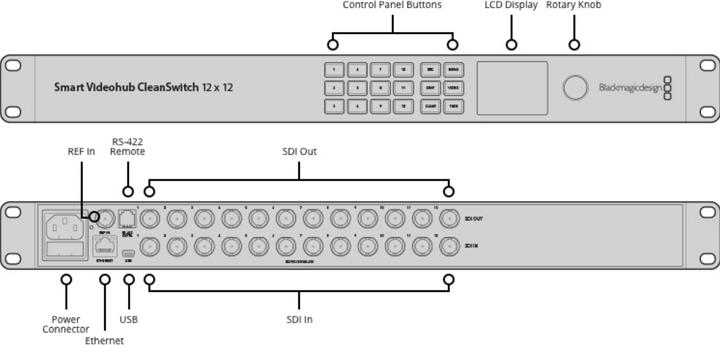

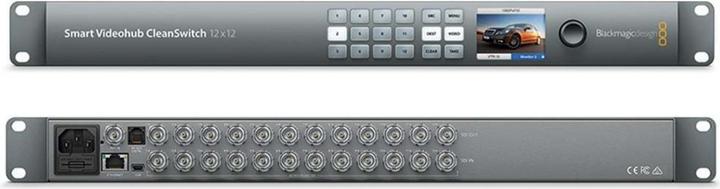

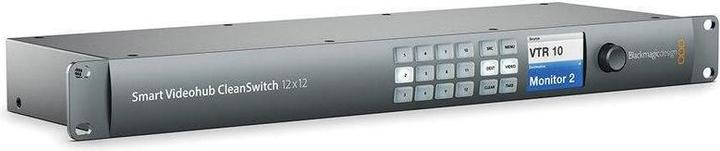

6G-SDI compact crosspoint switch with built-in re-synchronizers enables clean switching between all video sources of the same standard. Its 12 re-synchronizers can also be used for automatic re-timing of SDI feeds. The Smart Videohub CleanSwitch supports 12 inputs and 12 outputs in nearly all SD, HD, and Ultra HD video formats. It simultaneously handles multiple formats on the same crosspoint switch and switches cleanly between multiple formats corresponding to the reference frame rate when switching between sources of the same video standard. Additional features include routing via the front panel and rotary control, video monitoring through the routing LCD display, and remote control via Ethernet.

Key specifications

Product type
Digital -> Digital
Main device port
Ethernet / Lan, SDI
Peripheral port
SDI
Documents
Technical data sheet.pdf
Item number
6071009

General information

Manufacturer
Blackmagic
Category
Video converters
Manufacturer no.
BM-VHUBSMTCS6G1212
Release date
11.1.2017
External links
Manufacturer's site (de)

Video converter properties

Product type
Digital -> Digital
Connectable devices (input)
12
Connectable devices (output)
12

Connection main unit

Main device port
Ethernet / Lan, SDI

Peripheral port

Peripheral port
SDI

Power supply

Power source
Electrical connection

Voluntary climate contribution

CO₂-Emission
Climate contribution

Scope of delivery

Scope of delivery
SD card with software and operating instructions

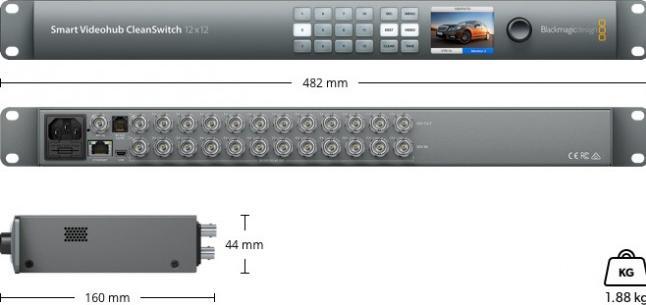

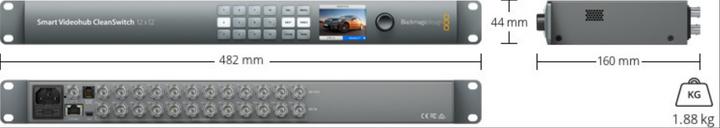

Product dimensions

Length
16 cm
Width
48.20 cm
Height
4.40 cm
Weight
1880 g
