Blackmagic Mini Converter HDMI-SDI 6G
Camera ConverterProduct details
The Blackmagic Design HDMI to SDI 6G Mini Converter converts HDMI to SD, HD, 3G, or 6G-SDI in resolutions up to DCI 4K (4096 x 2160) at 24p and UHD 4K (3840 x 2160) up to 60p. This is useful for connecting devices that output HDMI signals to professional SDI video equipment. With a compact form factor and easy-to-use controls, the Mini Converter is ideal for a variety of broadcast, post-production, and professional AV applications.

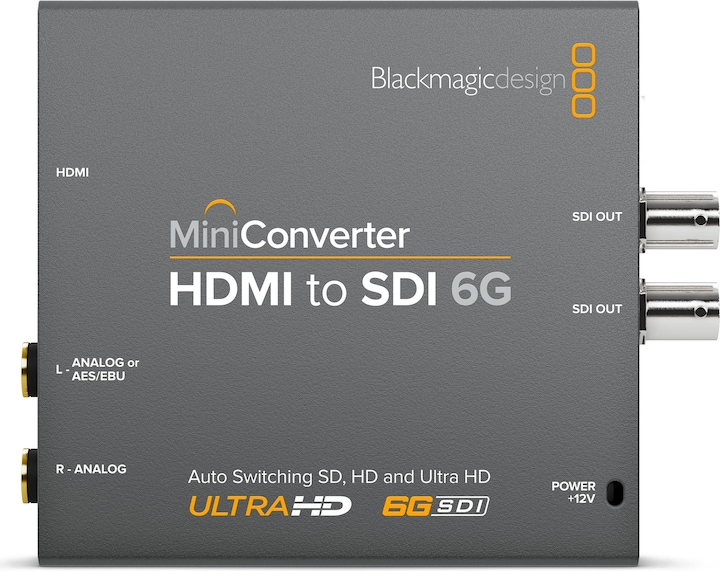

With 4K HDMI and 6G-SDI technologies, the Mini Converter automatically detects the input video format and instantly switches between SD, HD, and UHD/DCI 4K formats. The two 6G-SDI outputs also support SD and HD-SDI signals for integration into existing workflows. Both 6G-SDI outputs send duplicate signals. Audio is embedded into the SDI output either through the HDMI input or via the two 1/4" input jacks, supporting four channels of AES/EBU digital audio or two channels of analog audio.

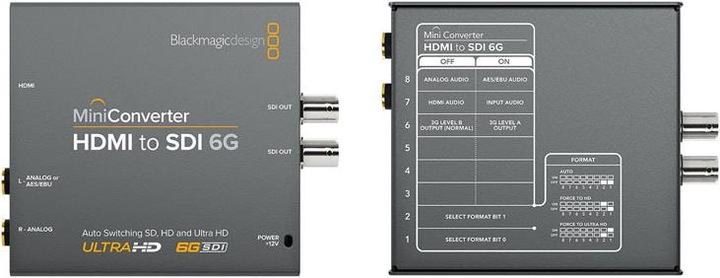

The settings of the Mini Converter are controlled via built-in switches or through USB with control software for Mac OS X or Windows computers. The USB port also allows for firmware updates. The device is powered by a supplied 12V power supply and comes with international plug adapters.
Product type | Camera Converter |
Main device port | SDI |
Peripheral port | HDMI |
Item number | 10149562 |
Manufacturer | Blackmagic |
Category | Video converters |
Manufacturer no. | BM-CONVMBHS24K6G |
Release date | 26.11.2018 |
Sales rank in Category Video converters | 32 of 545 |
Product type | Camera Converter |
Connectable devices (input) | 2 |
Connectable devices (output) | 2 |
Main device port | SDI |
Peripheral port | HDMI |
Power source | Electrical connection |
Country of origin | Germany |
CO₂-Emission | |
Climate contribution |
Scope of delivery | DC |
Length | 11.40 cm |
Width | 9.22 cm |
Height | 2.29 cm |
Weight | 243.80 g |
Length | 14 cm |
Width | 14.50 cm |
Height | 4 cm |
Weight | 461 g |
