Bicker Elektronik Industrial UPS system (DIN Rail) DC with maintenance-free SuperCaps

70 VA, 70 W
Ratings
BrandMore from Bicker Elektronik
Delivered between Sat, 2.8. and Wed, 20.8.
6 pieces in stock at supplier
free shipping

Product details

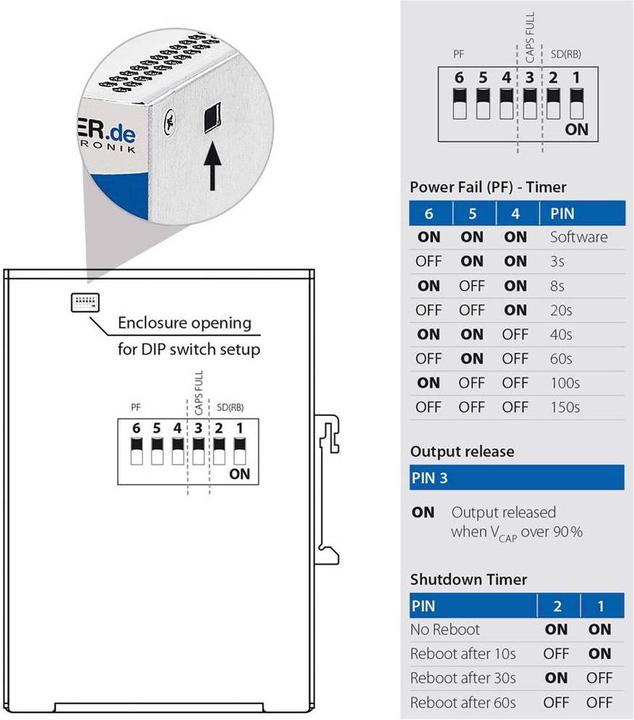

Maintenance-free supercapacitors ensure extremely high cycle stability and short charging times. Thanks to the intelligent power-sharing, the source does not need to be oversized to charge the supercapacitors. Additionally, the UPSIC-2403D offers active reverse polarity protection, a power-fail signal via a relay contact, and free software with a timer function. The integrated reboot function allows the system to restart when the input voltage returns during shutdown or at another time. The startup function can be activated via the BIOS when input voltage is present. Furthermore, a dip switch can be set so that the UPS output is only enabled when the capacitors have reached over 90% of their charge. The operation of the UPS with the host is also possible without software.

Key specifications

Model
DIN rail
Scope of application
Server room
Item number
16231060

General information

Manufacturer
Bicker Elektronik
Category
UPS
Manufacturer no.
UPSIC-2403D
Release date
10.7.2021

UPS properties

Power output
70 W
Output power capacity
70 VA
Model
DIN rail

UPS functions

UPS protection functions
Overvoltage protection

Application range

Scope of application
Server room

Mains supply properties

input voltage
22.5 V
Max. input current
3.50 A
Efficiency full load
94 %
Efficiency battery operation
94 %

Operating conditions

Maximum operating temperature
70 °C
Operating temperature
-20 - 70 °C

Voluntary climate contribution

CO₂-Emission
Climate contribution

Scope of delivery

Items per sales unit
1 x

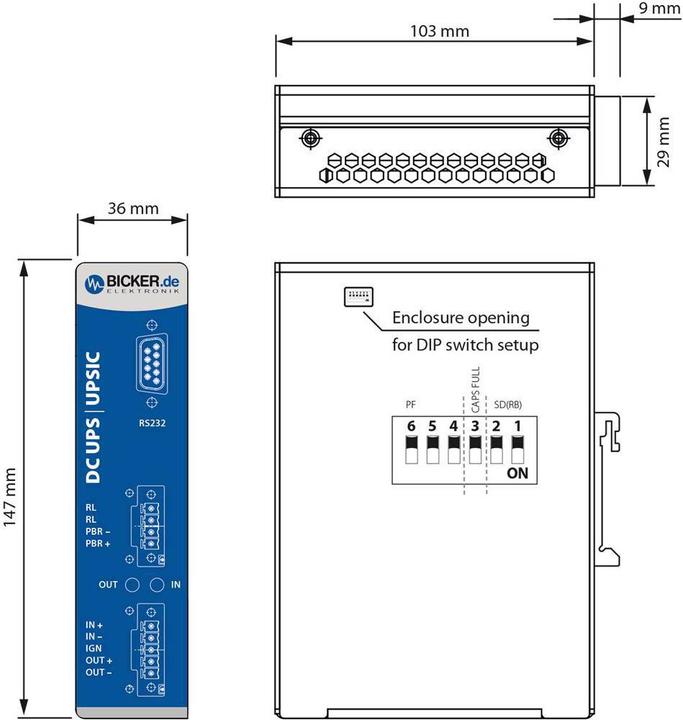

Product dimensions

Height
147 mm
Width
36 mm
Length
103 mm
