Berker GmbH & Co. KG KNX radio time switch polar white glossy 85745289 (85745289)

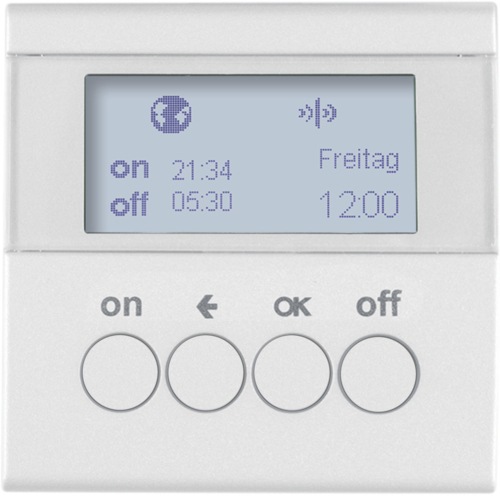

KNX wireless timer quicklink S.1/B.3/B.7 in polar white, glossy. The KNX wireless timer quicklink features a display that can be attached to compatible inserts. Integration is achieved via the KNX wireless media coupler AP into the KNX-TP system. The LC display lights up during operation and indicates the compatibility of the attachment/inserts. The contrast of the LC display is adjustable.

The timer offers an automatic summer/winter time switch (which can be disabled), a reset function (to factory settings), and configurable send and/or receive behavior. Additionally, there is a party function, a switching lock that prevents the execution of automatic, wireless, and secondary commands, as well as a key lock and the option to switch between manual and automatic operation.

An astro program allows for switching at sunrise/sunset with city/country or coordinate input and is individually adjustable. There is a standalone program where wireless and secondary commands are not executed, as well as a holiday program for random variation of switching times in automatic mode. Two independent preset program memories are also individually adjustable.

The menu can be set in German, English, or French. The quicklink functions include switching, two scenes, time control, push-button closing, and forced control. The easy additional function also provides six scenes, dimming, a push-button control for on/off, and forced control. The ETS additional functions also include six scenes, on/off operating mode, scene time recall, time dimming value, push-button, and status display.
