Berker 85745279

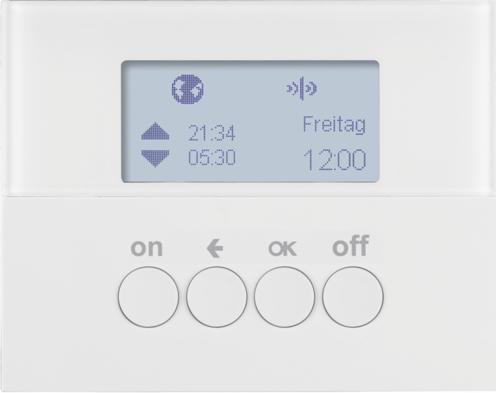

KNX wireless timer quicklink K.1 in polar white, glossy. The KNX wireless timer quicklink features a display that can be attached to compatible inserts. Integration is achieved via the KNX wireless media coupler AP into the KNX-TP system. The LC display lights up during operation and indicates the compatibility of the attachment/inserts. The contrast of the LC display is adjustable.

The timer offers automatic summer/winter time switching (which can be disabled), a reset function (to factory settings), and configurable sending and/or receiving behavior. It includes a party function, a switching lock to prevent the execution of automatic, wireless, and secondary commands, a key lock, and the option to switch between manual and automatic operation.

The astro program allows switching at sunrise and sunset with city/country or coordinate input and is individually customizable. In standalone mode, wireless and secondary commands are not executed. The holiday program ensures random variation of switching times in automatic mode. There are two independent pre-set program memories that can be individually adjusted.

The menu can be set in German, English, or French. The quicklink functions include switching, two scenes, time control, momentary switch, and forced control. The easy additional function offers six scenes, dimming, a key control for on/off, and forced control. The ETS additional functions include six scenes, on/off operating mode, scene time recall, time dimming value, momentary switch, and status display.
