Description

This module is designed specifically for expand for the GPIO of the
Banana Pi a which can effectively solve the banana send IO port
insufficient.

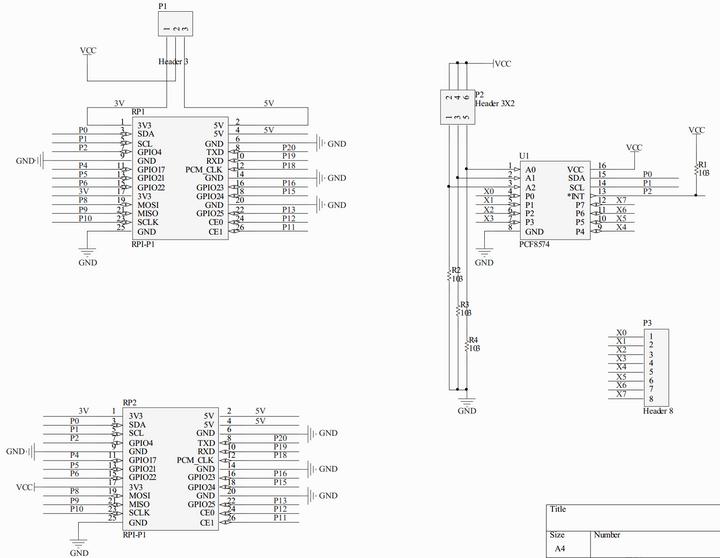

It use PCF8574 chip to expand 8 Bidirectional IO. The module
connection to the Banana Pi through I2C bus. There are 8 I2C address
in the module and user can choose one of them through setup the "ADDR"
jumper. User also can choose 5V or 3.3V electric level. Module with
isolation protection, can effectively prevent external high voltage
damage to the Banana Pi. Multiple module can cascade.

Product Features：

* 8 Bidirectional IOs
* 8 I2C-addresses
* Isolation protection
* Use wiringPi API , sample code

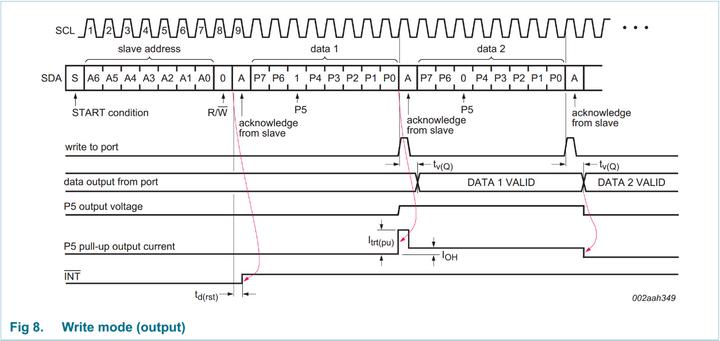

* 100 kHz I2C-bus interface (Standard-mode I2C-bus)

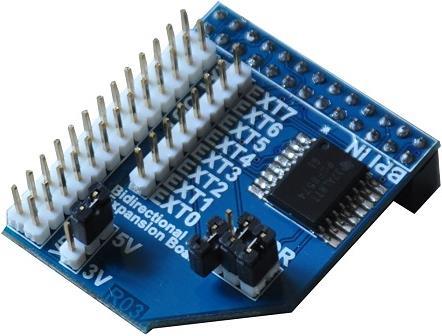

Ports：

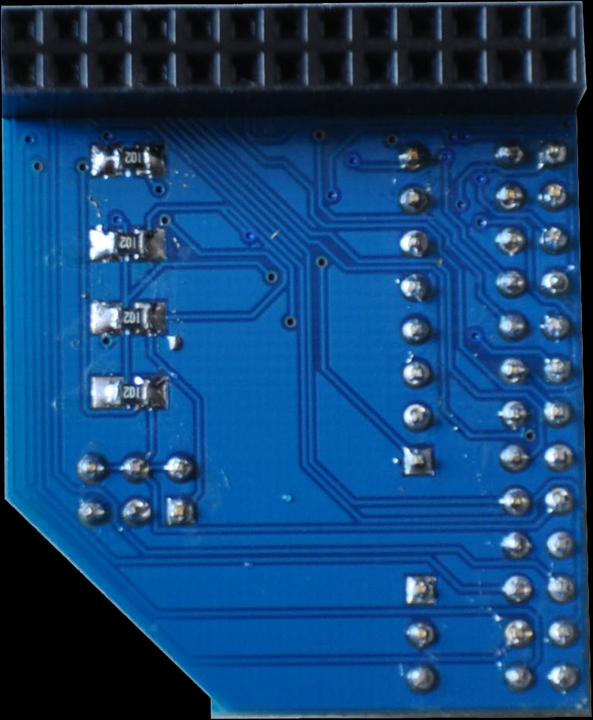

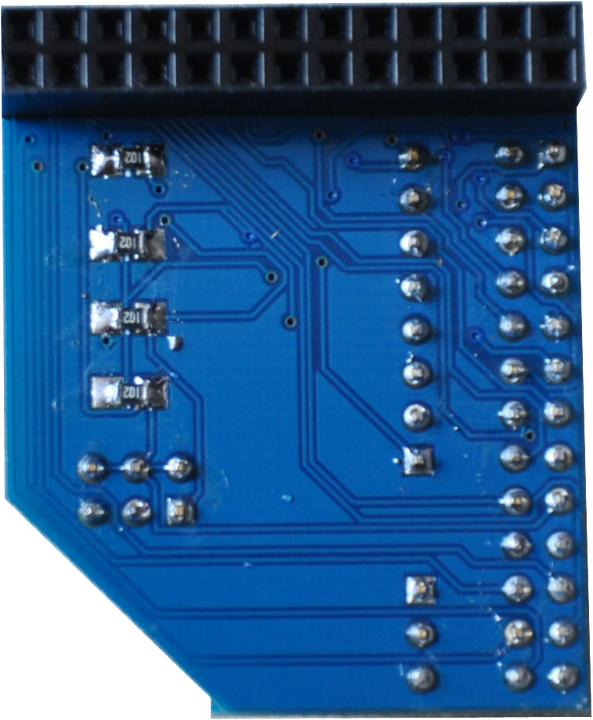

* Banana Pi insert port
* Banana Pi cascade port

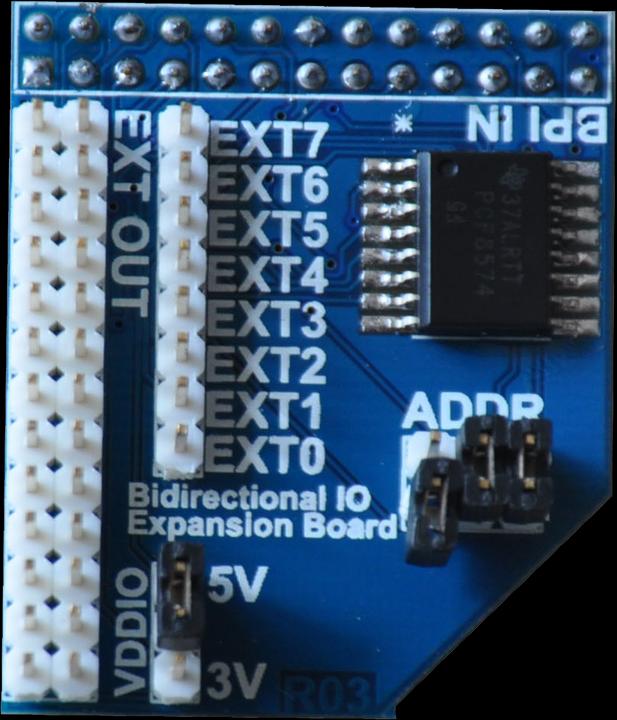

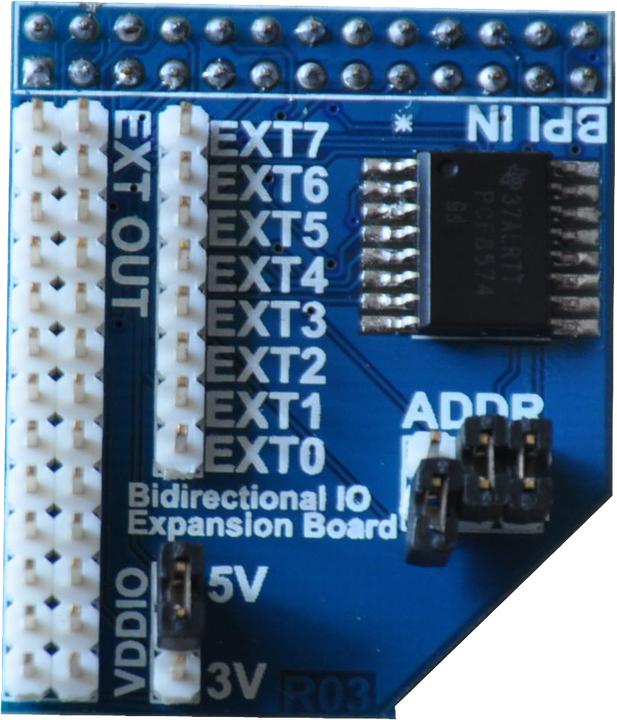

* EXT0-EXT7 expand GPIO
* Electric level selection jumper
* I2C-address selection jumper

Product Parameters：

* Working voltage: 2.5V-6V
* IO voltage: 3.3V or 5.5
* Expand 8 Bidirectional IO
* I2C bus
* 100 kHz I2C-bus interface (Standard-mode I2C-bus)
* -40C to +85C operation

Links:

* Product Details @ Banana Pi [1]

Links:
------
[1] http://bananapi.com/index.php/purchase?layout=edit&id=49…more
