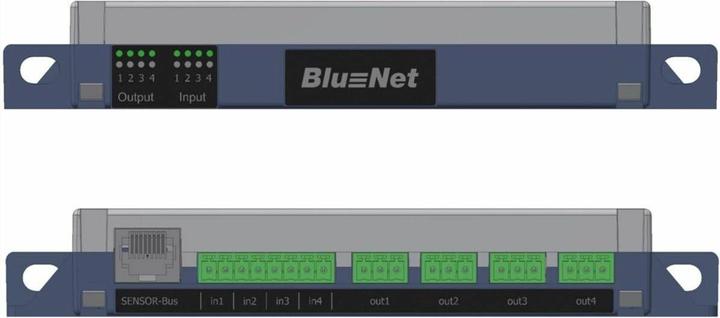

The GPIO module is compatible with BlueNet BN3000 - BN7500 and Power Unit 2, and it connects to these devices via a CAT5e cable through the sensor connections S1 or S2. The GPIO module features four relay outputs as switches, which can be controlled manually or through a signal chain. Additionally, there are four digital inputs available, which operate with a supply voltage of 7V.
4x Inputs / 4x Relay Outputs
2x LEDs per Input / Output

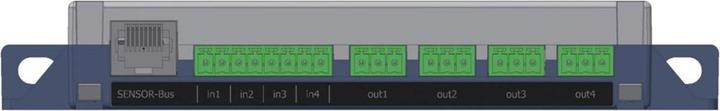

Connection terminal with screw terminals
RJ45 socket for connection to BlueNet BN3000-BN7500
Sensor connection
Dimensions (without connection terminal): 166mm x 58mm x 25mm
Packaged in a box.
Item number | 23555847 |
Manufacturer | Bachmann |
Category | UPS accessories |
Manufacturer no. | 802.0100 |
Release date | 7.9.2022 |
Accessory type | Sensor |
Country of origin | Germany |
CO₂-Emission | |
Climate contribution |
Items per sales unit | 1 x |
Length | 20 cm |
Width | 14 cm |
Height | 5 cm |
Weight | 208 g |
Length | 20.70 cm |
Width | 15.10 cm |
Height | 6.10 cm |
Weight | 204 g |
