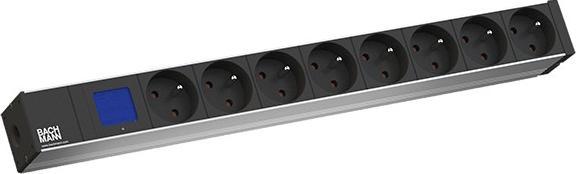

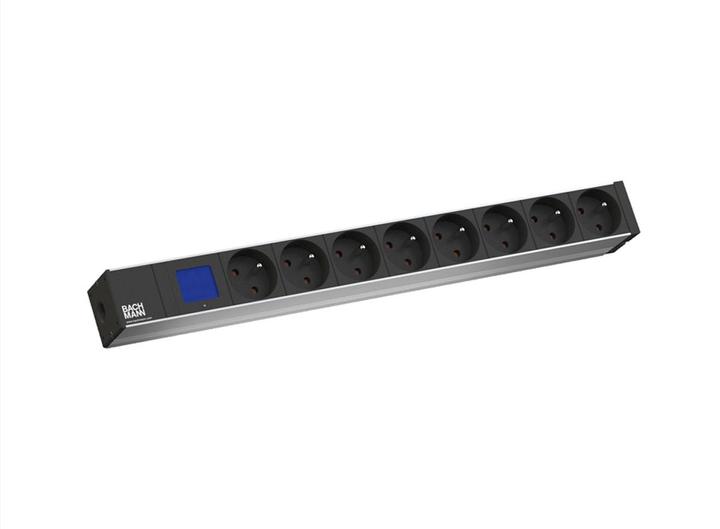

Bachmann 19" socket strip "Bluenet BN0500", 8-way

8x, CEE 7/3, CEE 7/5, 2 m
Ratings
BrandMore from Bachmann
Delivered between Mon, 6.4. and Tue, 7.4.
Only 1 piece in stock at supplier
free shipping

Colour2

Product details

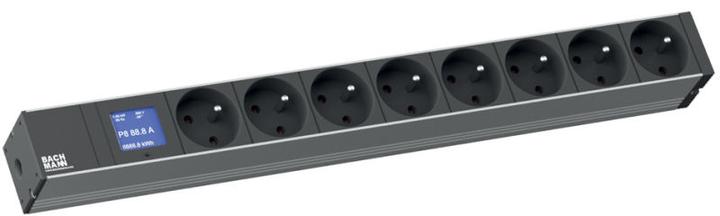

PDU with illuminated LC display shows the most important information about power supply directly in the rack.

Measurement per phase

The BN0500 is an intelligent PDU (Power Distribution Unit). It is perfect for a cost-effective entry into energy monitoring at the PDU level.

The compact design (1U) of the BN0500 allows for flexible, space-saving installation, optimizing cabling and airflow in the server rack.

The following measurements are displayed on the backlit display:

Current [A]

Voltage [V]

Frequency [Hz]

Active power [kW]

Active energy [kWh], resettable

Phase shift angle [°]

The BN0500 is ideal for simpler applications where a local display of measurements is sufficient for occasional monitoring of energy consumption and capacity utilization.

Optional technology modules:

Surge protection (SPD), housing color

This PDU is available as a 19" version or for vertical installation.

Further product configurations available upon request.

Key specifications

Socket strip type
Built-in socket strip
Switch type
no switch
Safety functions
Overload protection

General information

Item number
30127048
Manufacturer
Bachmann
Category
Socket strips
Manufacturer no.
800.2067
Release date
25.4.2023
External links
Manufacturer's site (en)

Colour

Colour
Black
Exact colour description
Black / Silver

Material

Material group
Plastic
Material
Aluminium profile, Plastic

Socket strip properties

Socket strip type
Built-in socket strip
Switch type
no switch
Safety functions
Overload protection
HAR. Designation
H05VV-F 3G1.5
Number of outlets
8x
Socket type
CEE 7/3, CEE 7/5
Cable length
2 m
Area of use
Inside
Connector layout
Oblique
Max. current load
16 A
Nominal voltage
230 V
Nominal power
3600 W
rated frequency
50 Hz
Core cross-section
1.50 mm
Number of cores
3x

Origin

Country of origin
Germany, Romania

Voluntary climate contribution

CO₂ emissions
1.3 kg
Climate contribution
CHF 0.11

Product dimensions

Length
482 mm
Width
483 mm
Height
44 mm
Weight
1050 g
