Autosolar Solar MPPT-Laderegler und Ladebooster 50A
More than 10 items in stock at supplier
Product details

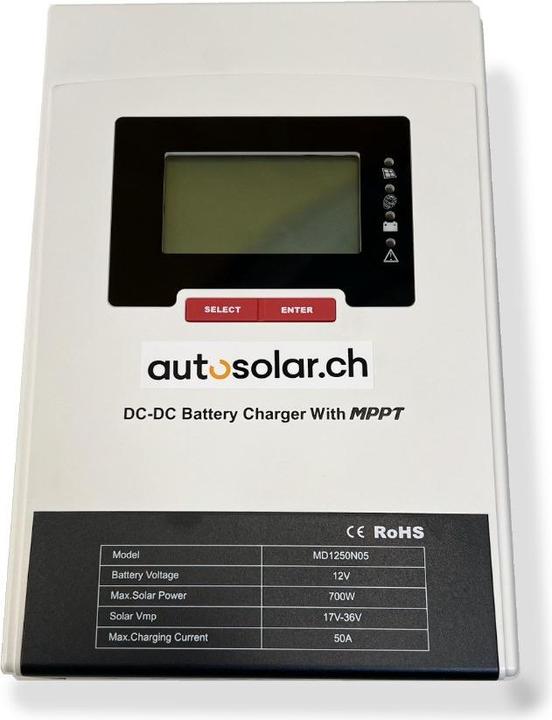

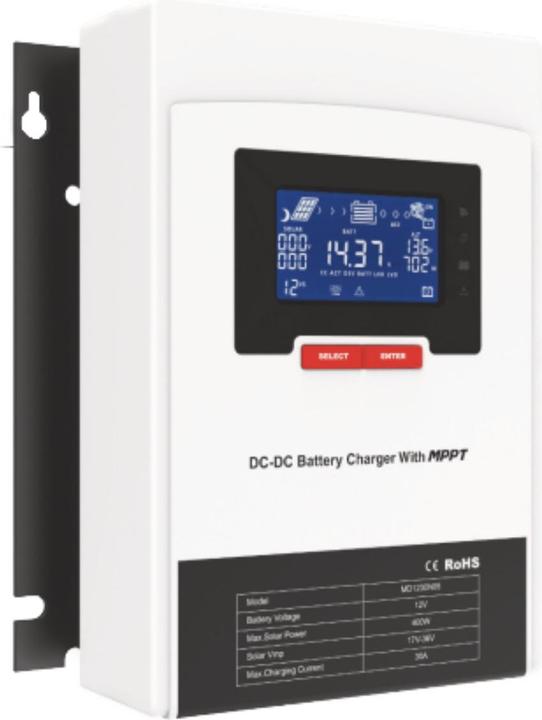

Charge booster and charge controller in one – your intelligent charging partner
This device is a high-performance charge controller and charge booster specifically designed for the demanding charging of lithium, gel, and lead batteries. With a maximum charging current of 50 A and support for up to 700 W of solar power, it ensures fast and efficient energy supply.
Your advantages:
Intelligent charging modes: Choose the optimal mode for your battery from four intelligent charging options.

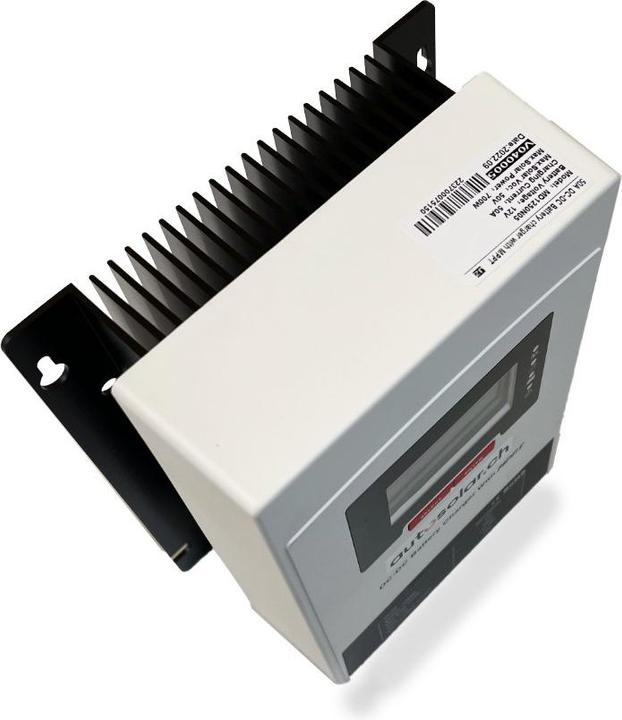

Effective cooling: Generously sized cooling fins ensure reliable operation, even at high temperatures.
Versatile protection features: Overcharge protection, deep discharge protection, and short circuit protection provide maximum safety.
High efficiency: 98% efficiency for minimal energy loss.

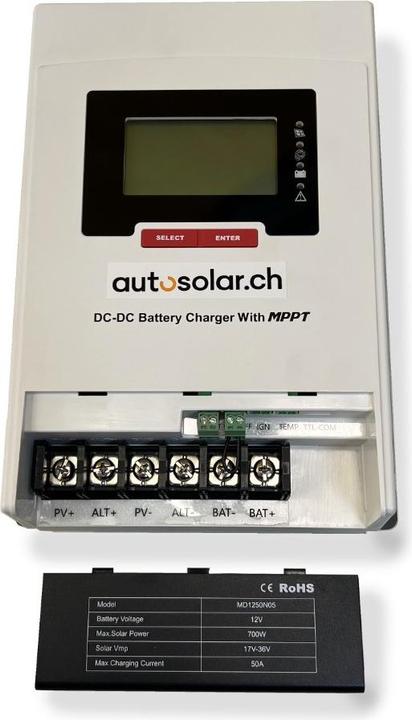

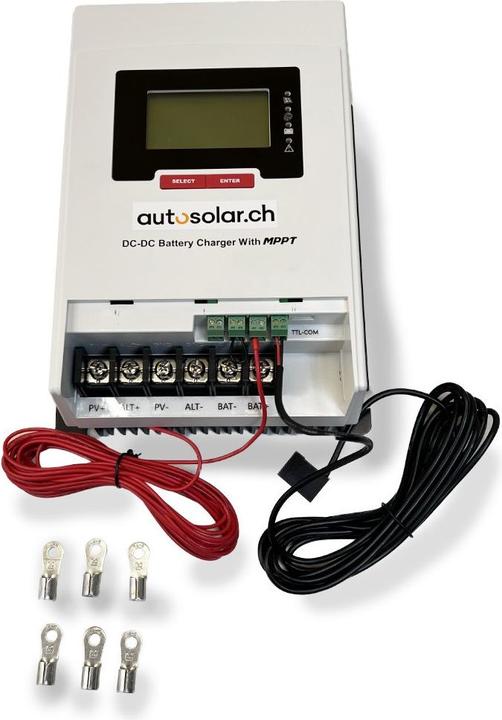

Easy installation: Quick and straightforward to install.
Technical specifications:
Solar power:
Max. voltage: 55 V DC
MPPT voltage range: 7–36 V DC
Max. PV input current: 45 A
Max. PV input power: 700 W
Onboard battery:
Battery type: Lithium/lead/gell/AGM battery
Battery voltage: 12 V DC
Max. MPPT charging current: 50 A
Max. generator charging current: 60 A
General:
Weight: 2.15 kg
Dimensions: 22 x 17.6 x 9.3 cm
Protection class: IP32
Operating temperature range: -35 °C to 65 °C.
Nominal voltage | 55 V |
Nominal current | 50 A |
Safety function | Overloading, Short circuit |
Item number | 54311636 |
Manufacturer | Autosolar |
Category | Charge controller |
Release date | 29.1.2025 |
Nominal voltage | 55 V |
Nominal current | 50 A |
Power output | 700 W |
Safety function | Overloading, Short circuit |
Protection type (IP code) | IP32 |
CO₂-Emission | |
Climate contribution |
Items per sales unit | 1 x |
Length | 22 cm |
Width | 17.60 cm |
Height | 9.30 cm |
Weight | 2150 g |
