Autosolar Camper 160W solar system with 110Ah battery and 300W inverter

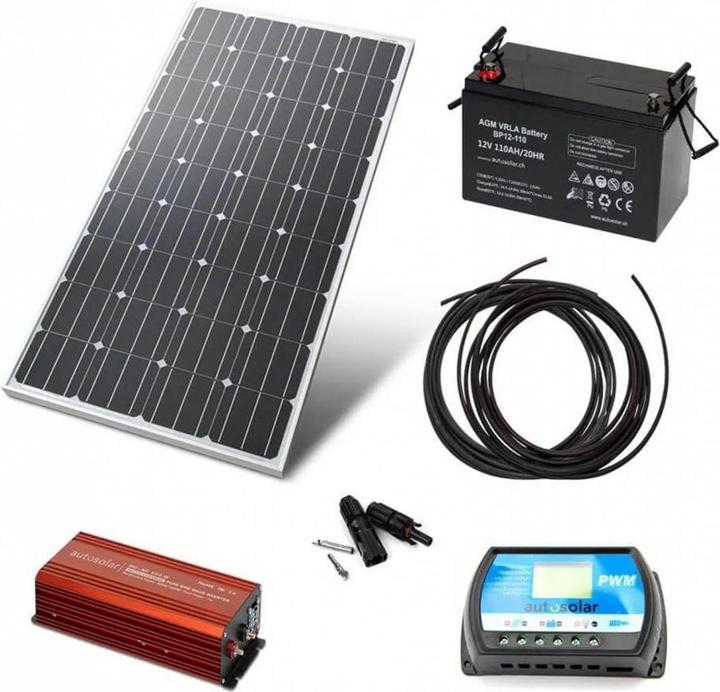

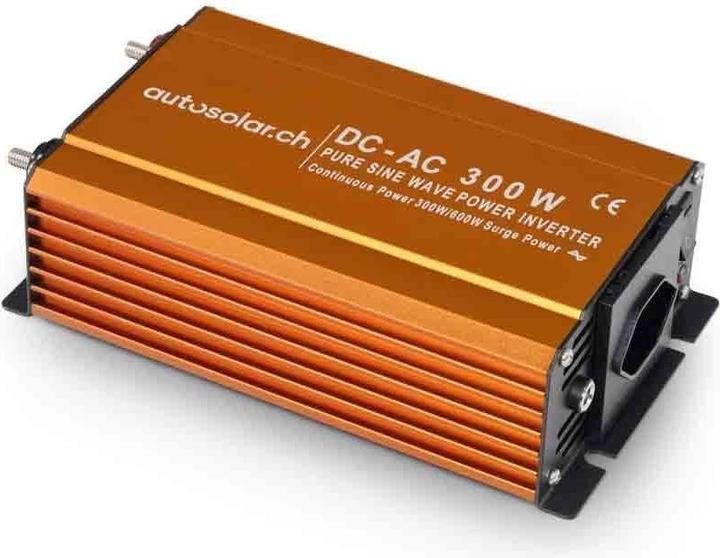

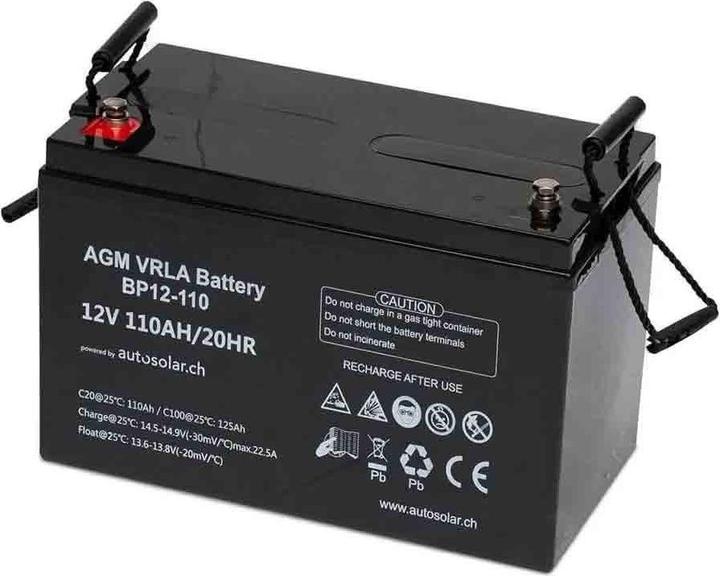

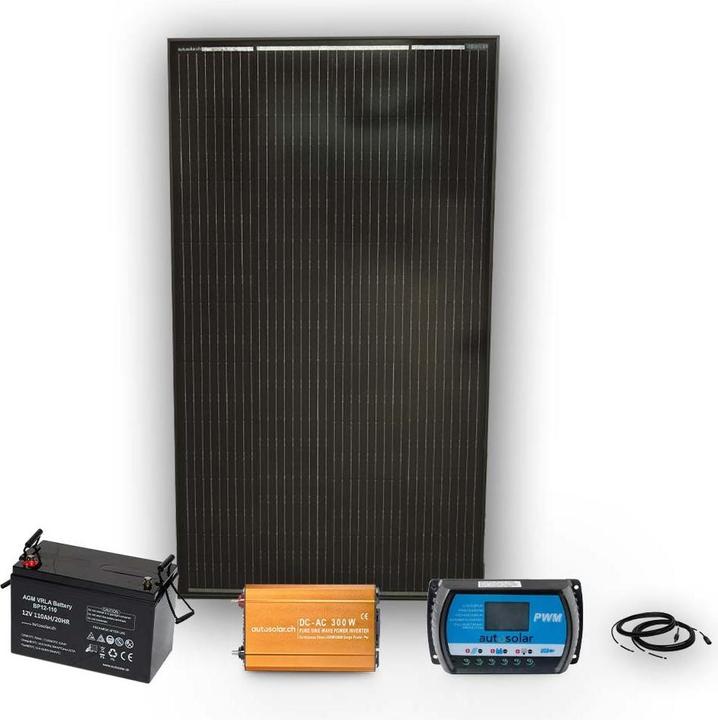

Complete solar system set including battery and 230 V AC inverter. 160 watt solar panel with 36 monocrystalline cells. Dimensions of the solar panel: 1470 mm x 670 mm x 35 mm, weight: 11.4 kg. 10 A PWM charge controller for 12 V lead-acid, AGM, and gel batteries. 300 W inverter 12 V DC to 230 V AC 50 Hz, pure sine wave. 110 Ah 12 V AGM solar battery, dimensions: 330 mm x 175 mm x 230 mm, weight: 29.5 kg. Includes 5 m long 4 mm² solar cable, MC4 connectors, and M8 ring terminals for the battery. With this solar set, you receive all the necessary components to independently power your motorhome or garden shed. Thanks to the 230 V AC inverter, you can use your usual household appliances. The system can be easily expanded with an additional battery if needed. PWM charge controller: A resistor determines the current operating state, and as a result, the charging process is optimized through the principle of pulse width modulation. This achieves a very low voltage drop (maximum 0.24 V) and self-consumption (maximum 6 mA). Therefore, PWM charge controllers are significantly more effective than simple linear charge controllers. The built-in microprocessor charges the battery gently, ensuring a long lifespan for your solar batteries. AGM battery: The construction principle of AGM batteries is based on the use of grid plates and a fiberglass mat as a separator, in which the electrolyte is fixed. AGM batteries are maintenance-free regarding water refilling and offer users not only a very good cycle life but also efficient charging current absorption. By optimizing the internal structure (e.g., mass and electrolyte availability), AGM series batteries are ideally suited for solar applications. The impact-resistant, reinforced polypropylene housing is robust against environmental influences and provides easy installation and comfortable handling through integrated handles.
