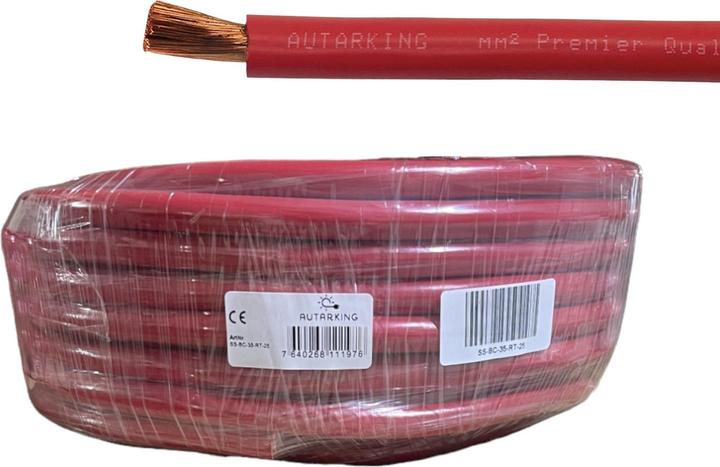

Autarking Battery / starter cable Highly flexible - 35mm2 red -25m

Battery cable for high current applications - flexible - 35 mm - red

Flexible, finely stranded DC cable for high current applications such as batteries, inverters, or chargers. The smaller diameters are perfect for solar charge controllers and charge boosters.

Its flexibility is similar to SGF cable, although the insulation material differs.

Please check our selection of crimp connectors in various sizes under accessories.

Specifications:

Cable cross-section: 35 mm² battery cable

Standard: GB/T 5023.5-2008

Conductor structure:

Copper wires: 707 pieces

Copper wire outer diameter: 0.25 ± 0.002 mm

Conductor type: OFC (oxygen-free copper)

Conductor resistance at 20 °C (MΩ/km): ≤ 0.0038

Insulation:

Insulation material: Rubber and plastic 105 °C

Rated voltage: 450/750 V

Insulation outer diameter: 11.8 ± 0.1 mm

Average diameter: 2 mm

Minimum thickness: ≥ 1.6 mm

Flame retardant standard: FT-1

Anti-UV: Yes

Operating temperature range: -40 °C to +105 °C

Color: red

Appearance: No impurities, no scratches, smooth, round

Environmental testing: ROHS (no Pb, Cd, Hg, Cr+6, PBBs, PBDEs)

Voltage testing of the finished product: Soak in water for 1 hour at room temperature, apply 1.5 kV for 5 minutes, no breakdown

Dielectric test: 6 kV

Burn test: -.
