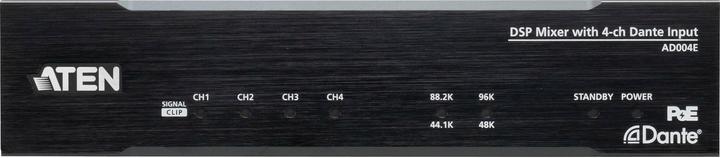

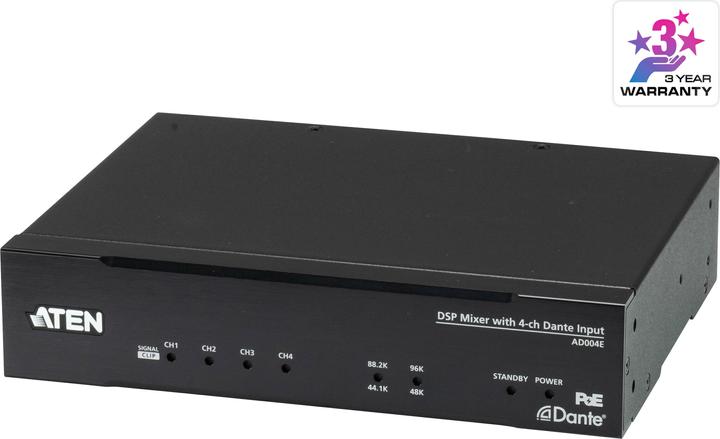

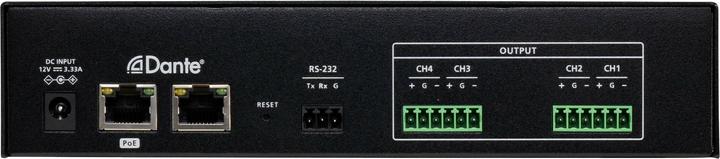

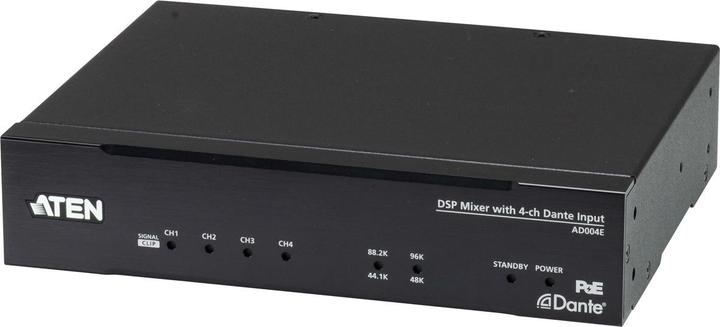

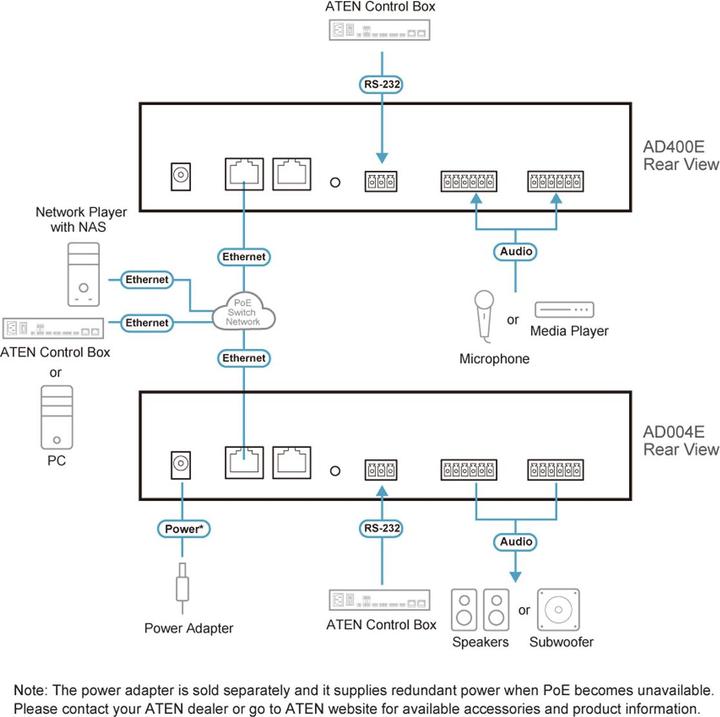

The AD004E converts Dante inputs into analog 4-channel line outputs and integrates analog and digital audio devices into a single system through Dante AoIP media network technology. It supports 24-bit audio and offers sample rate options of 44.1 kHz, 48 kHz, 88.2 kHz, and 96 kHz to meet various environmental requirements. The built-in DSP allows for 24 presets and management of speaker functionality via the PC-based Audio Wizard app or ATEN VK control over LAN or RS-232. A DSP matrix mixer is also included to provide DSP mixing and routing functions, enabling users to assign Dante inputs to one of the four analog outputs. The AD004E is AES67 compliant, enhancing interoperability between different audio network protocols and devices. Additionally, the device features a selectable automatic standby mode for energy saving, which automatically puts the AD004E into standby when the signal level falls below -50, -60, or -70 dBu for a selected duration (10, 30, or 60 minutes), reducing power consumption.
