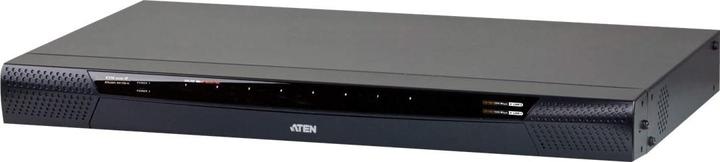

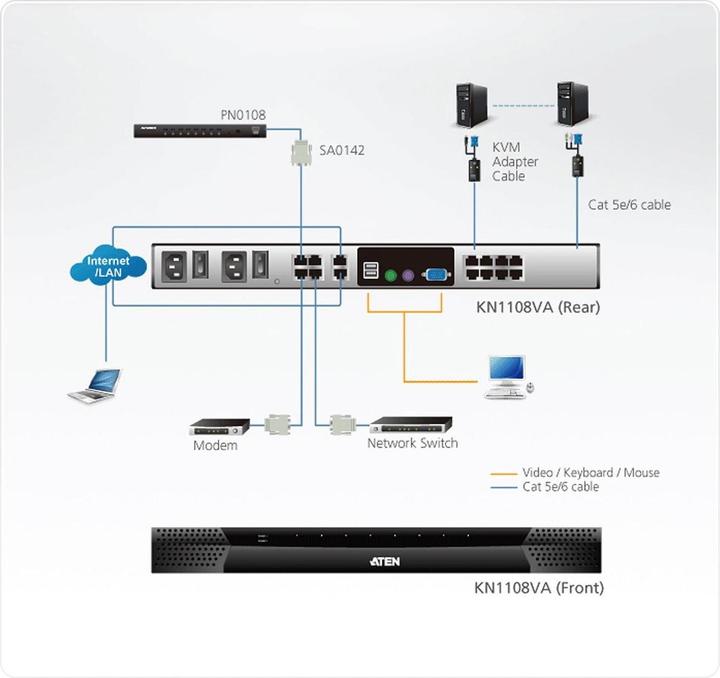

1-Local / 1-Remote Access 8-Port Cat 5 KVM over IP Switch with Virtual Media (1920 x 1200) ATEN's new generation of KVM over IP switches – The KN series enables local console access and remote over IP access for operators to monitor and access the entire data center over a network using a web-based browser. Additionally, they provide out-of-band access with external modem support for troubleshooting at the BIOS level when the network is down. To manage and control the entire data center, KVM over IP switches support blade servers and enclosures. With powerful new features such as outlet connection – KVM ports can be connected to ATEN PDU outlets for server power management through the user interface of the KVM over IP switches. KVM over IP switches now support the new Control Center Video Session Recorder (CCVSR) software. The CCVSR records all operations on servers accessed via KVM over IP switches. Every operation and switch from the BIOS level to login, from running software applications to configuring the operating system is recorded and stored in a secure video file as evidence without exception.
Number of controllable PC's | 8 x |
Main device port | PS/2, USB Type-A |
Exact USB ports | USB-A 2.0 (3x) |
Video connections | D-Sub (1x) |
Audio Connections | Jack 3.5mm Line Out (1x) |
Network connections | RJ45 (14x) |
Item number | 9558980 |
Manufacturer | Aten |
Category | KVM switches |
Manufacturer no. | KN1108VA |
Release date | 3.9.2018 |
Sales rank in Category KVM switches | 44 of 1602 |
May include power adapter | No |
Colour | Black |
Exact colour description | Black |
Product type | KVM switch |
Connectable devices (input) | 1 |
Connectable devices (output) | 8 |
Number of controllable PC's | 8 x |
Max. picture resolution | 1920 x 1200 pixels |
remote control type | Cable |
Main device port | PS/2, USB Type-A |
USB ports | USB-A |
Exact USB ports | USB-A 2.0 (3x) |
Video connections | D-Sub (1x) |
Audio Connections | Jack 3.5mm Line Out (1x) |
Network connections | RJ45 (14x) |
Data ports | PS/2 (2x) |
Scope of delivery | 1 x console cable, 2 x Serial adapter |
Power supply | Electrical connection |
Country of origin | China |
CO₂-Emission | |
Climate contribution |
Length | 28.78 cm |
Width | 43.84 cm |
Height | 4.40 cm |
Weight | 3520 g |
Length | 52 cm |
Width | 35 cm |
Height | 17 cm |
Weight | 5.52 kg |
