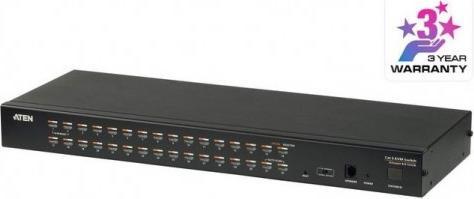

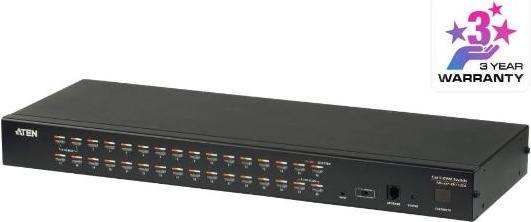

Aten KH1532A: 32 Port Cat KVM Switch, OSD

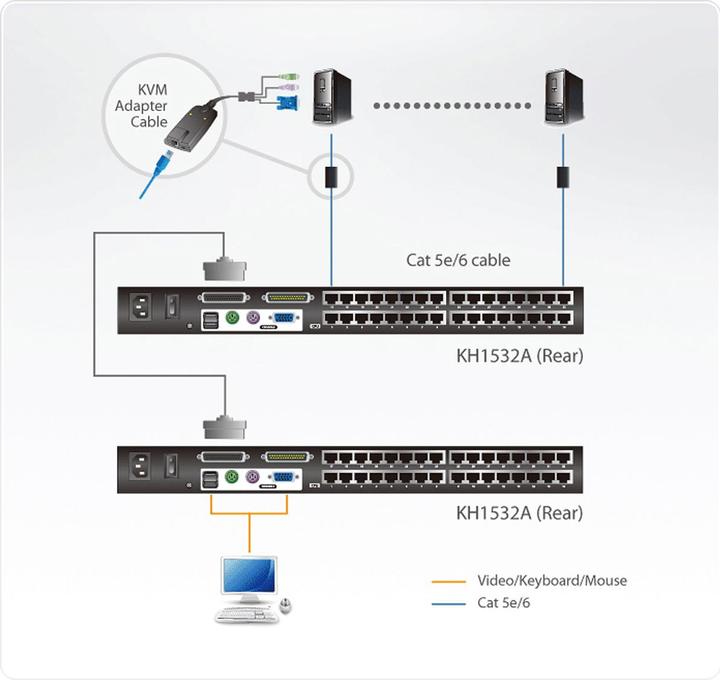

The KH1532A KVM switches are control units that allow IT administrators to access and manage multiple computers from a single PS/2 or USB KVM console (keyboard, monitor, and mouse). Operators can control up to 32 computers (KH1532A). By cascading up to 31 additional switches, up to 1024 computers can be managed from a central KVM console.

Included in the package:

• 1x KH1532A Cat 5 High-Density KVM Switch
• 1x Firmware Upgrade Cable
• 1x Power Cable
• 1x Rack Mount Kit
• 1x Foot Pad Set (4 pieces)
• 1x User Manual

Key Features:

• Number of Computers: 32
• Keyboard Port Type: USB, PS/2
• Mouse Port Type: USB, PS/2
• Video Port Type: VGA
• Console Connection: PS/2, USB A, VGA (D-Sub)
• Number of VGA (D-Sub) Ports: 1
• Number of USB Ports on the Console: 2
• Number of PS/2 Ports: 2
• Built-in Ethernet Port: Yes
• Number of Ethernet LAN Ports (RJ-45): 32

Performance:

• HD Type: Full HD
• Maximum Resolution: 1920 x 1200 pixels
• Scanning Interval: 1.255 seconds
• Cascading: Yes
• Number of Users: 10 users
• Upgradeable Firmware: Yes

Design:

• Rack Mountable: Yes
• Product Color: Black
• Rack Capacity: 1U
• Housing Material: Metal
• LED Indicators: Yes
• Switch Button: Yes
• Hotkeys: Yes
• Built-in Display: No
• On-Screen Display (OSD): Yes

Power:

• Power Source: AC
• AC Input Voltage: 100 - 240 V
• AC Input Frequency: 50/60 Hz
• Input Current: 1 A
• Power Consumption (Standard Operation): 4.8 W

Operating Conditions:

• Operating Temperature Range: 0 - 40 °C
• Storage Temperature Range: 20 - 60 °C
• Relative Humidity during Operation: 0 - 80%

Weight and Dimensions:

• Width: 437.2 mm
• Depth: 163.7 mm
• Height: 44 mm
• Weight: 2.81 kg

Included Accessories:

• Supplied Cables: AC
• Operating Manual: Yes
• Rack Mount Kit: Yes

Technical Details:

• Sustainability Certifications: RoHS.
